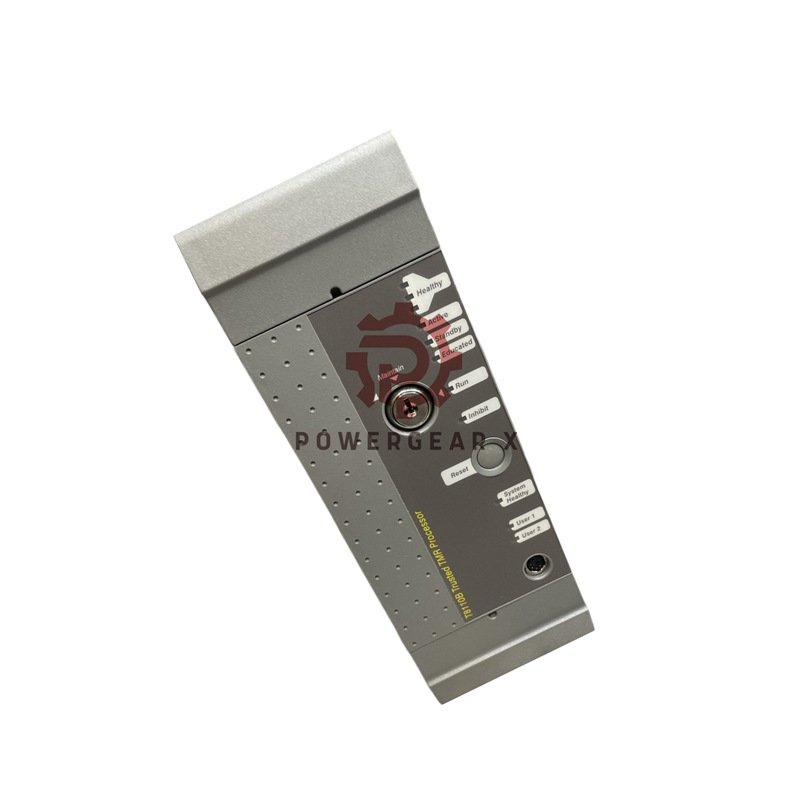

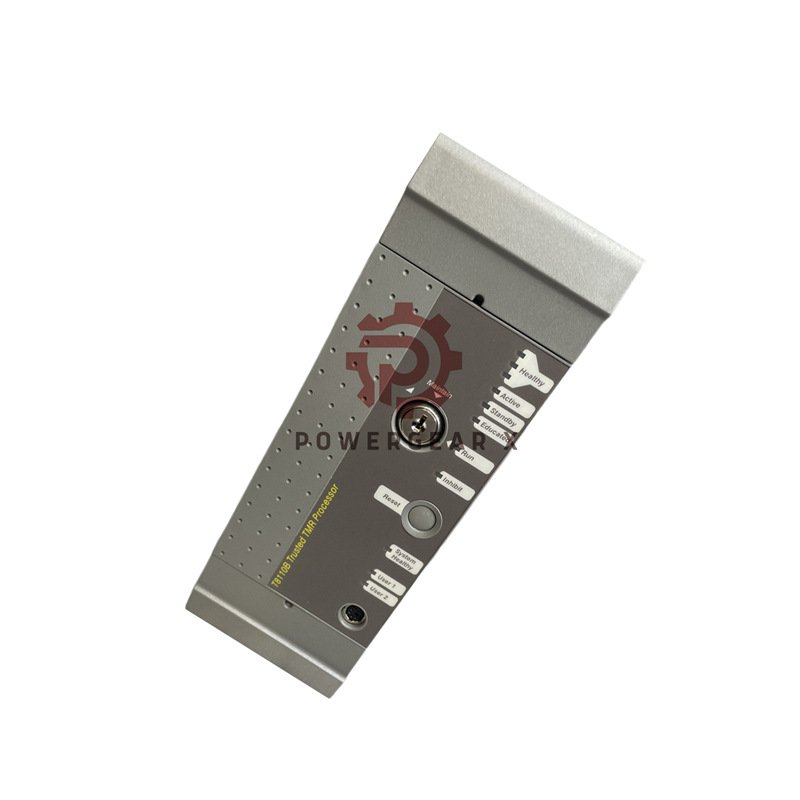

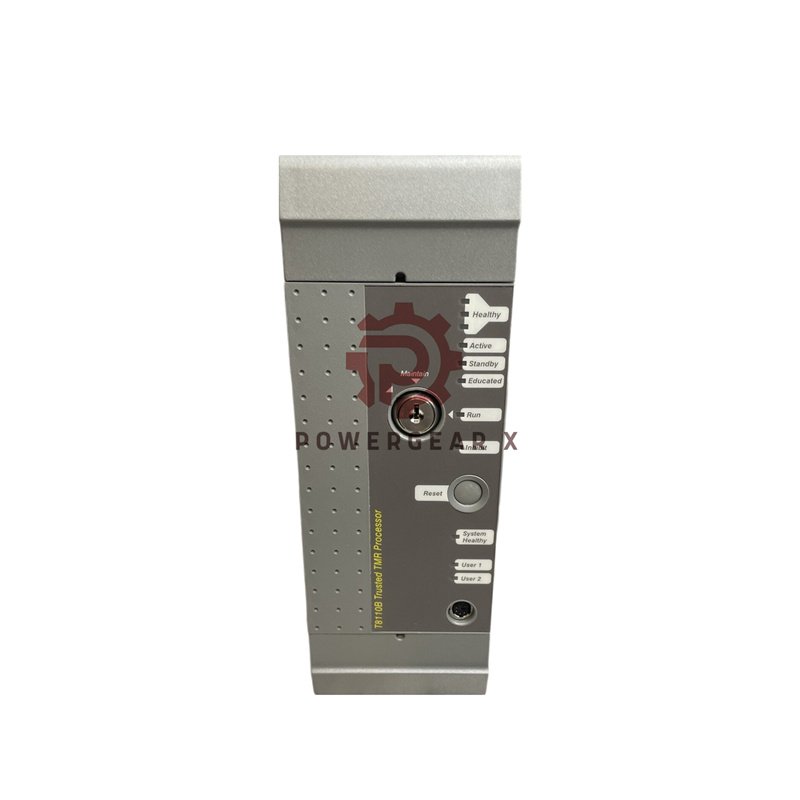

ICS Triplex T8110B Triple Modular Redundant Processor

ICS Triplex T8110B Trusted TMR Processor

The T8110B Trusted TMR Processor is the intelligent core of the ICS Triplex Trusted System. It provides powerful control, fault tolerance, and high-speed data processing across industrial automation environments such as fire and gas, turbine control, and emergency shutdown systems.

Technical Specifications

• Brand: ICS Triplex
• Model: T8110B
• Processor Type: Trusted TMR Processor Module
• Voltage Range: 20 – 32 V DC
• Processor Clock: 100 MHz
• Power Dissipation: 80 W max
• I/O Interface: Triple redundant Inter-Module Bus
• SOE Buffer Size: 1000 events → CI buffer 4000 events
• Operating Temp: 0 °C – 60 °C (32 °F – 140 °F)
• Storage Temp: -25 °C – 70 °C (-13 °F – 158 °F)
• Dimensions: 30.3 × 9.3 × 26.6 cm
• Weight: 2.94 kg
• Chassis Compatibility: For use with T8100 chassis
• Certifications: TÜV SIL 3 | IEC 61508 | CE | ATEX | UL
• Warranty: 12 months from delivery

System Performance

• Lock-step TMR operation prevents data divergence between processors.
• Voter logic and redundancy enable seamless operation under single-fault conditions.
• Fast fault detection minimizes downtime and prevents nuisance alarms.
• Diagnostic RS232 port allows real-time health monitoring and configuration.
• Active and standby processor contacts simplify system failover management.

Application Scope

• Industrial safety and control systems with high integrity requirements.
• Used in emergency shutdown, fire and gas detection, and turbine control systems.
• Configurable via Trusted Toolset software (System.INI required).
• Supports secure access with configurable password protection.

Shipping Information

• Worldwide express delivery via FedEx, UPS, or DHL.
• Each unit is sealed with anti-static protection and shock-safe packaging.
• Typical dispatch within 2 – 4 business days after payment confirmation.

FAQ

• What makes the T8110B different from standard processors?
  The T8110B uses Triple Modular Redundancy to ensure continuous fault-tolerant operation.
• Can it operate in high-temperature environments?
  Yes, it runs between 0 °C and 60 °C and stores safely up to 70 °C.
• Does it support time synchronization?
  Yes, it includes IRIG-B002 and IRIG-B122 interfaces for accurate timing.
• Can I replace the module without reloading programs?
  Yes, hot-swap capability allows quick replacement without reconfiguration.
• Is it SIL-certified?
  Yes, it is TÜV certified to IEC 61508 SIL 3 for safety-critical applications.
