ICC212 Isolating Repeater Power Supply for HART Transmitters

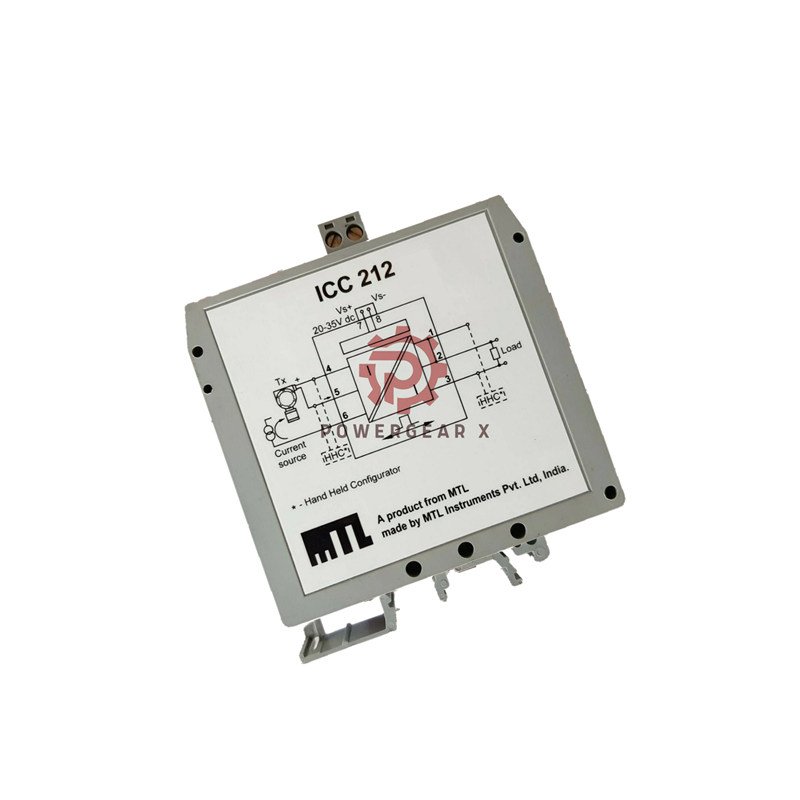

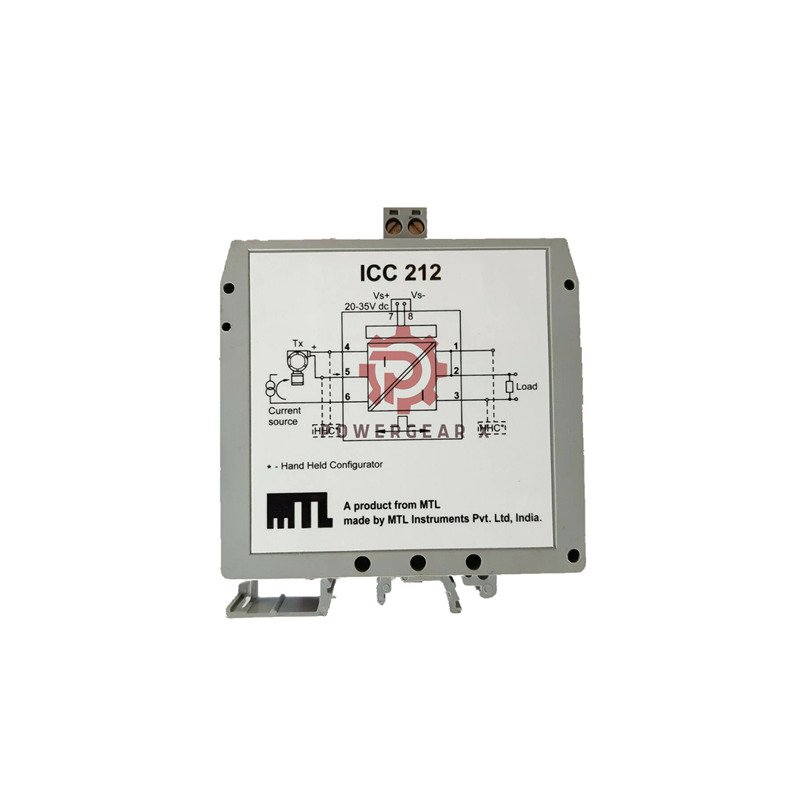

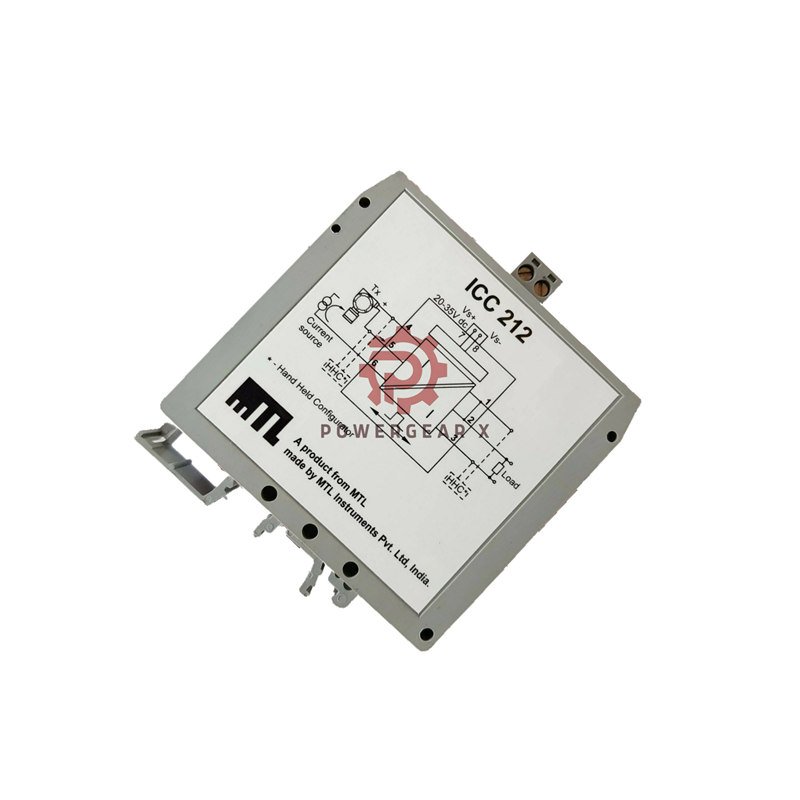

ICC212 Repeater Power Supply & Isolating Driver

Power your smart transmitters. Ensure safe and accurate signal transmission. This unit offers full galvanic isolation. Use it as a repeater power supply or an isolating driver. It supports digital HART communication for device setup.

Key Features

• Total Galvanic Isolation for safety
• Powers 2/3-wire 4-20mA transmitters
• Enables bi-directional HART communication
• Simple DIN-rail mounting
• Flexible 20-35V DC power input

Technical Data

• Brand: [Your Brand Name]
• Model: ICC212
• Function: Repeater Power Supply / Isolating Driver
• Input/Output Signal: 0-20mA or 4-20mA
• Isolation: 1500V DC/AC
• Power Supply: 20-35V DC
• Voltage for Transmitter: Min. 20V at 20mA
• Frequency Response: 100Hz – 10kHz (Digital)
• Max Load Resistance: 650Ω (Conventional), 220Ω (Smart)
• Transfer Accuracy (@25°C): Better than 20μA
• Linearity & Hysteresis: Included in accuracy spec
• Temperature Drift: < 1μA/°C
• Response Time (90%): 80ms
• Response Time (99.9%): 280ms
• Common Mode Rejection (CMRR): 150dB (typical)
• Operating Temperature: -20°C to +55°C
• Storage Temperature: -40°C to +80°C
• Environmental Humidity: 5-95% RH non-condensing
• Terminals: Accept 2.5mm² conductors
• Housing Material: Polyamide
• Mounting: T or G-section DIN-rail (DIN46277)

Model Suffix Info

• ICC212 – Base model

Certification & Warranty

• 12-month warranty
• Complies with international standards

Shipping

We ship worldwide via FedEx, UPS, and DHL.

Package Includes

• 1x ICC212 Unit
• 1x DIN-rail clip
• Documentation

Diagnostics & FAQ

• No output current? Check power and input signal.
• LED is off? Check power connections.
• Digital comms failing? Verify HART compatibility.
