Power Supply Module

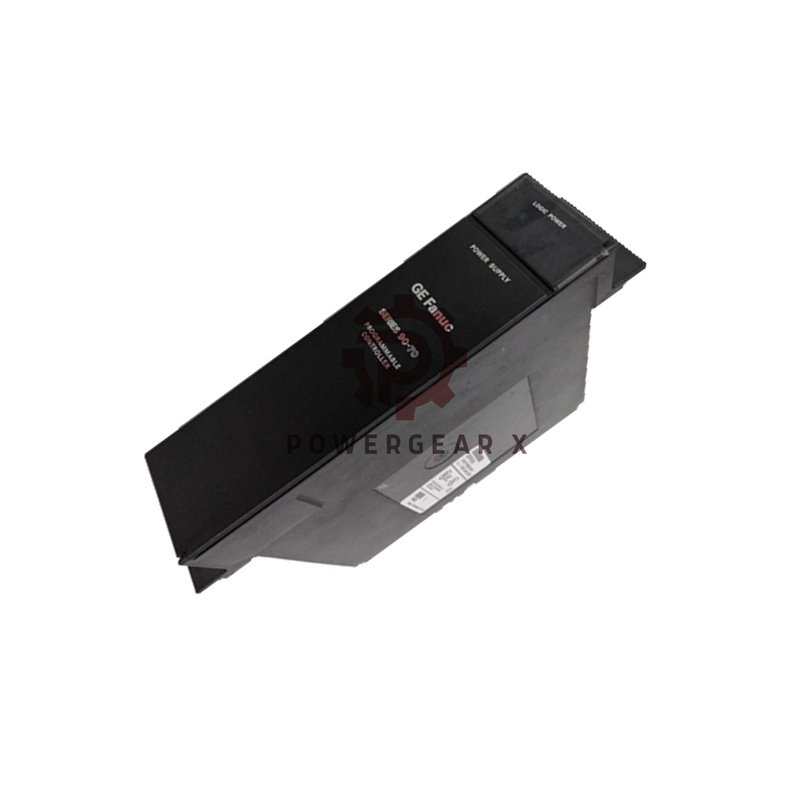

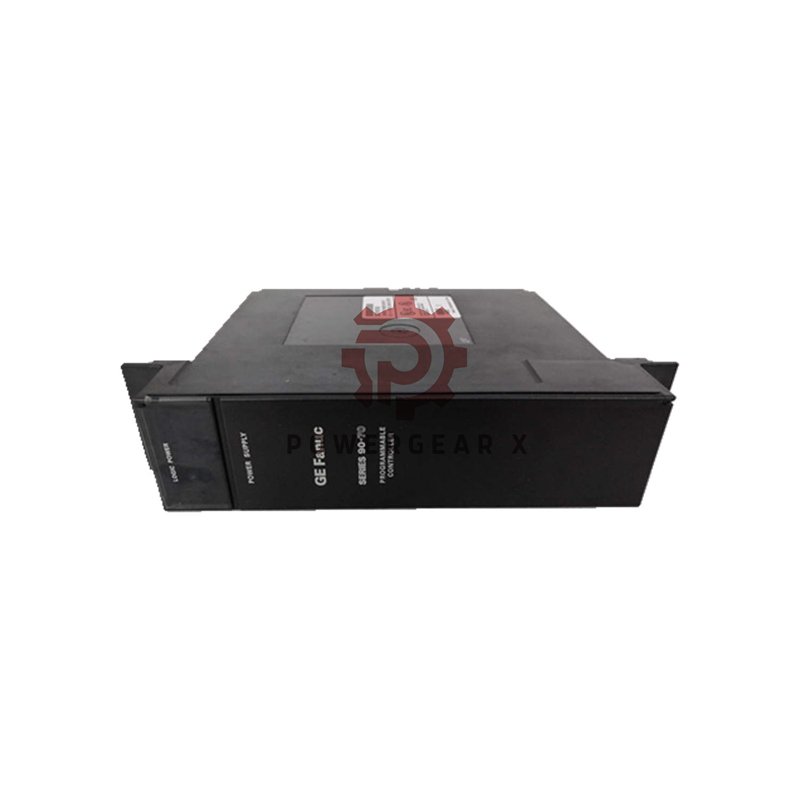

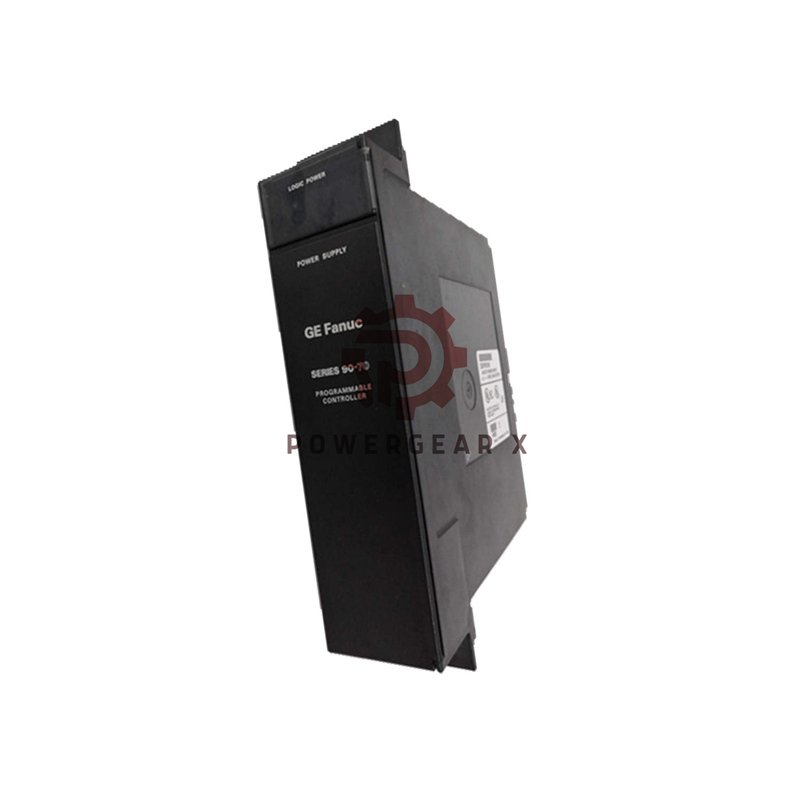

The IC697PWR724 is a 24VDC power unit for GE Fanuc Emerson Series 90-70 racks. It gives stable output up to 90W and supports two racks when the load stays within limits. Author: Powergear X Automation.
Main Points
- GE Fanuc Emerson designs the unit for Series 90-70 racks.
- Output power: 90W max for logic and system loads.
- Input range: 18–32VDC for flexible field supply.
- Output rails: 5V, 12V, -12V.
- Ride-through time: 10ms at 20VDC.
- Inrush energy: 22J max.
- Heavy-duty design with low noise and low ripple.
- Strong thermal stability from 0–60°C.
- Overvoltage limit: 5VDC system protection.
Extended Technical Data
- Model: IC697PWR724
- Brand: GE Fanuc Emerson
- Product Line: Series 90-70
- Weight: 2.50 lbs (1.13 kg)
- Efficiency: Up to 82% under rated load
- EMI rating: Meets industrial noise limits
- Cooling: Passive airflow from rack design
- VME rack compatible
- Logic current: 5V output supports up to 26A
- Aux current: 12V output supports up to 4A
- Neg 12V current: 2A max
- Shock resistance: 30g (module level)
- Vibration: 5–500Hz industrial class
- Warranty: 12 months
Usage Notes
- Install in the left rack slot only.
- Use the 48-pin backplane connector for power feed.
- Use a rack cable when powering a second rack.
- Do not exceed 90W combined load.
- Derate output when ambient rises near 60°C.
What You Receive
- 1 × IC697PWR724 power module
- Protective anti-static wrap
- Quick start sheet
- Fast shipping via FedEx, UPS, or DHL
FAQ
- How do I check load balance?
Measure each rail current and ensure the total stays under 90W. - What if the unit runs hot?
Reduce load or improve airflow around the rack. - Can I feed long cable runs?
Use thicker wire for long runs to keep voltage drop low. - How do I test the rails?
Use a meter at the rack terminals and check for steady values. - When should I replace the unit?
Replace the supply if the rails drift or ripple rises above normal.
