Power Supply Overview

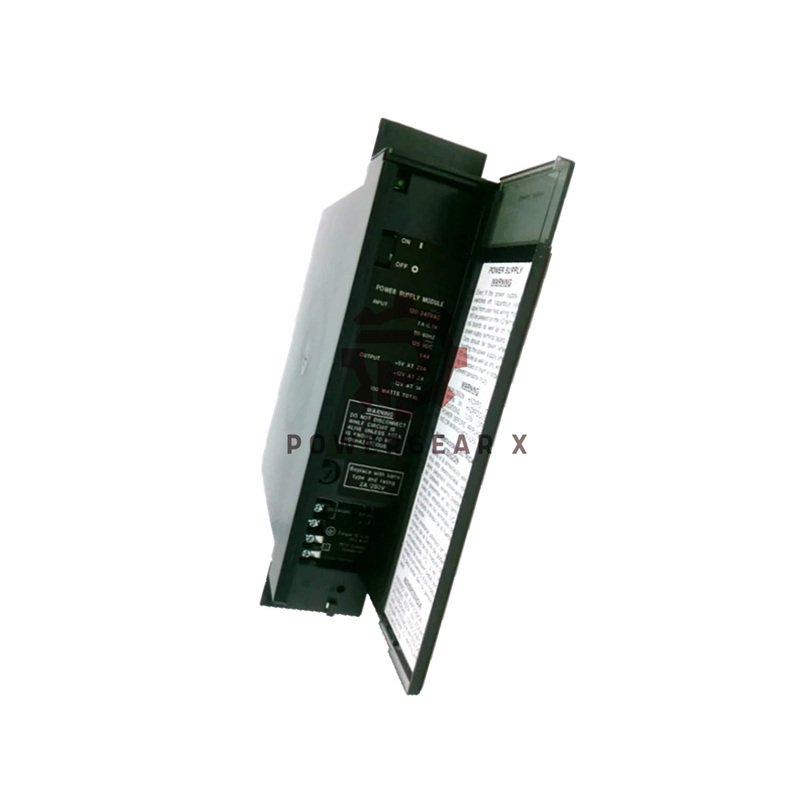

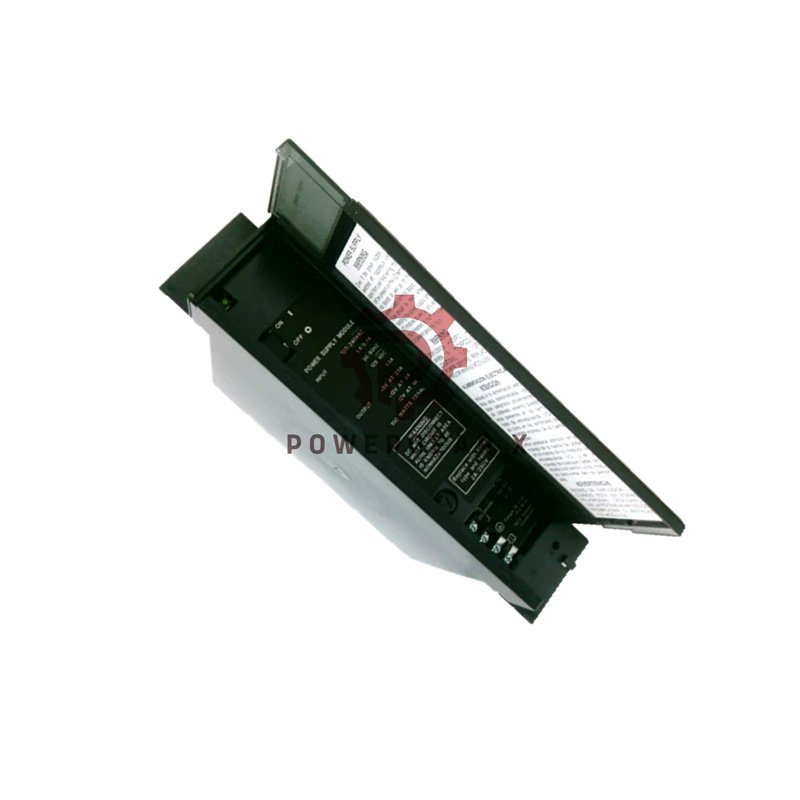

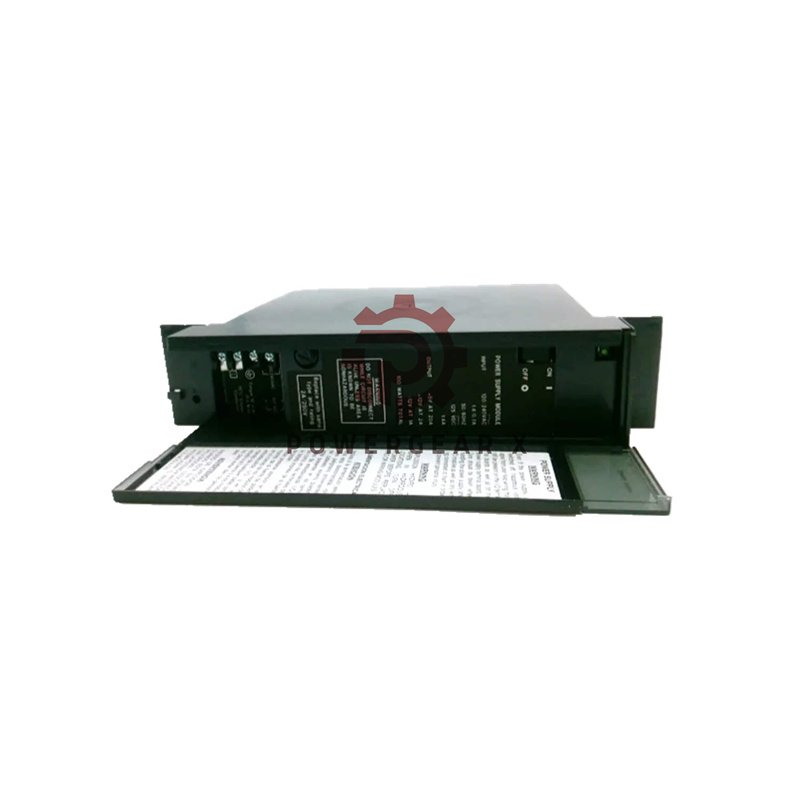

The IC697PWR721 delivers clean DC power for GE Fanuc Emerson Series 90-70 racks. It supports external use and connects through a PSA. It runs with stable output under heavy loads and harsh plant conditions. This unit suits users who need safe DC power and simple setup.
Main Technical Data
- Brand: GE Fanuc Emerson
- Series: 90-70
- Model: IC697PWR721
- Type: Industrial power supply module
- Input: 24 VDC nominal
- Input Range: 21–32 VDC
- Peak Power: 156 Watts
- Output Limit: 90 Watts
- Output Rails: 5 VDC, 12 VDC, -12 VDC
- Regulation: 5V at 16.5A, 12V at 1.5A, -12V at 1A
- Inrush Energy: 22 J at 32 VDC
- Overvoltage Trip: 6–7 V
- Shock Rating: 15 G, 11 msec
- Operating Temp: 0–60°C
- Weight: 4.00 lbs (1.81 kg)
- Placement: Works inside rack or externally via cable
- Warranty: 12 months
Key Advantages
- Stable DC output for critical control systems
- Wide input voltage range for flexible power sources
- Fast response TTL shutdown logic support
- Strong shock and heat tolerance
- Simple cable connection when used outside the rack
- Compatible with GE IC697 and WME racks
- Reliable regulation for 5V, 12V, and -12V lines
- Strong inrush protection at high input voltage
- Ideal for high-demand PLC loads
What You Receive
- One IC697PWR721 power supply
- Standard mounting hardware
- Basic setup guide
Shipping Options
- Fast global delivery by FedEx
- Reliable service with UPS
- Express shipment via DHL
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
FAQ
- Q: How do I check if the power rails run within limits?
- A: Use a meter on each rail and confirm values match rated outputs.
- Q: What signs show a power drop in the system?
- A: Look for dim front LEDs, CPU resets, or slow startup.
- Q: Can I run this unit outside the rack safely?
- A: Yes, connect it with the PSA cable and keep airflow clear.
- Q: How often should I inspect the input wiring?
- A: Check it every six months in high-vibration sites.
- Q: What helps extend the module life in hot areas?
- A: Keep dust off vents and reduce nearby heat sources.
