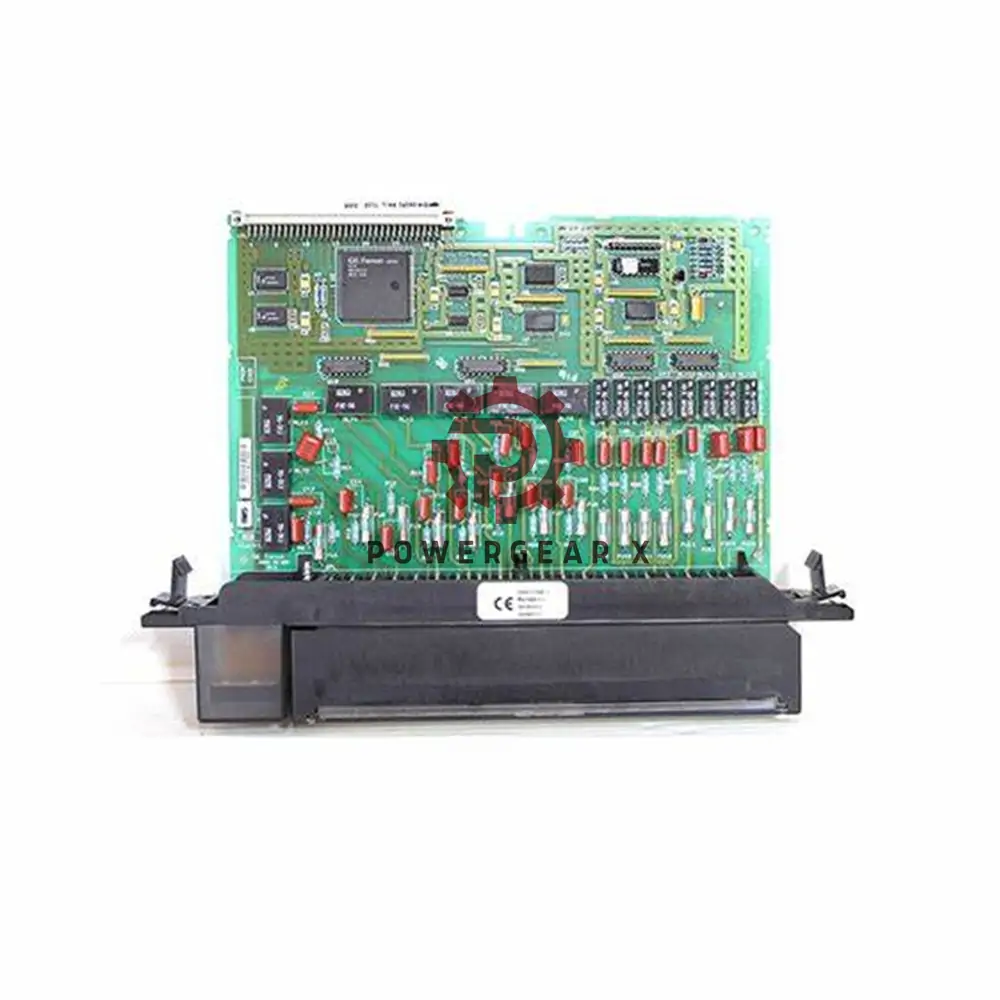

GE Fanuc IC697MDL340 AC Output Module – Industrial Power Control
Robust 120V AC Switching Solution
The GE Fanuc IC697MDL340 delivers 16 AC outputs in 4 isolated groups. Handles 2A per point with heavy-duty 10x inrush capacity. Perfect for motor starters and industrial loads in Series 90-70 systems.
Key Performance Features
- 4 isolated groups for phase separation
- 2A/point, 4A/group switching capacity
- 10A fuse protection per group
- LED status for every output
- Mechanical keying for safe replacement
- Handles Size 4 contactors
Technical Specifications
- Brand: GE Intelligent Platforms/GE Fanuc
- Model: IC697MDL340 (Series 90-70)
- Outputs: 16 points AC
- Voltage: 120V AC (47-63Hz)
- Current: 2A/point, 4A/group continuous
- Inrush: 20A (10x) per point
- Backplane Current: 0.25A @5VDC
- Isolation: 4 independent groups
- Fuse Rating: 10A per group
- Indicators: Per-point status + fuse monitoring
Installation Guide
- Mount in Series 90-70 rack
- Verify mechanical key alignment
- Separate wiring by isolated groups
- Check fuse ratings before power-up
Compatible Loads
- Motor starters (Size 4)
- Solenoid valves
- Industrial lighting
- Inductive control circuits
Safety Certifications
- UL 508 Listed
- CE Compliant
- RoHS Certified
Package Contents
- IC697MDL340 module
- 10A replacement fuses (4)
- Mounting hardware
- Installation guide
Warranty & Shipping
- 12-month performance warranty
- Global delivery: FedEx/UPS/DHL
- Priority shipping available
Expert FAQs
- Q: Can it handle motor inrush currents?
A: Yes, 20A inrush capacity per point - Q: Are groups truly isolated?
A: Yes, 4 fully isolated output banks - Q: What’s the fuse response time?
A: Instant protection against overloads - Q: Suitable for three-phase systems?
A: Yes, groups can represent separate phases - Q: Is hot-swapping supported?
A: Yes, with mechanical keying for safe replacement
