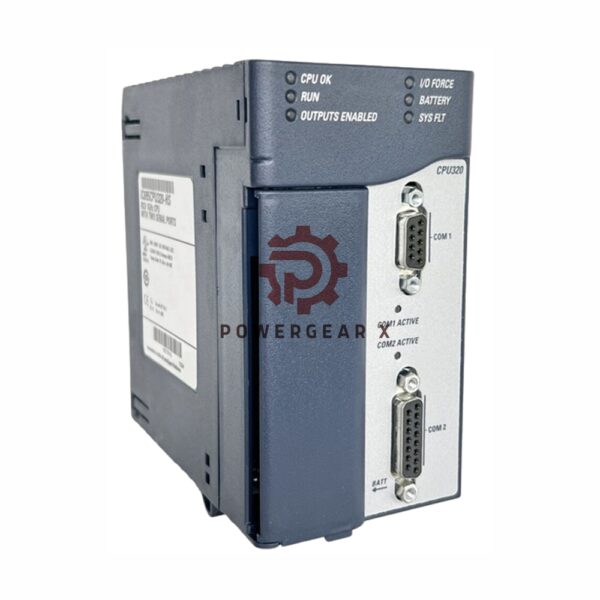

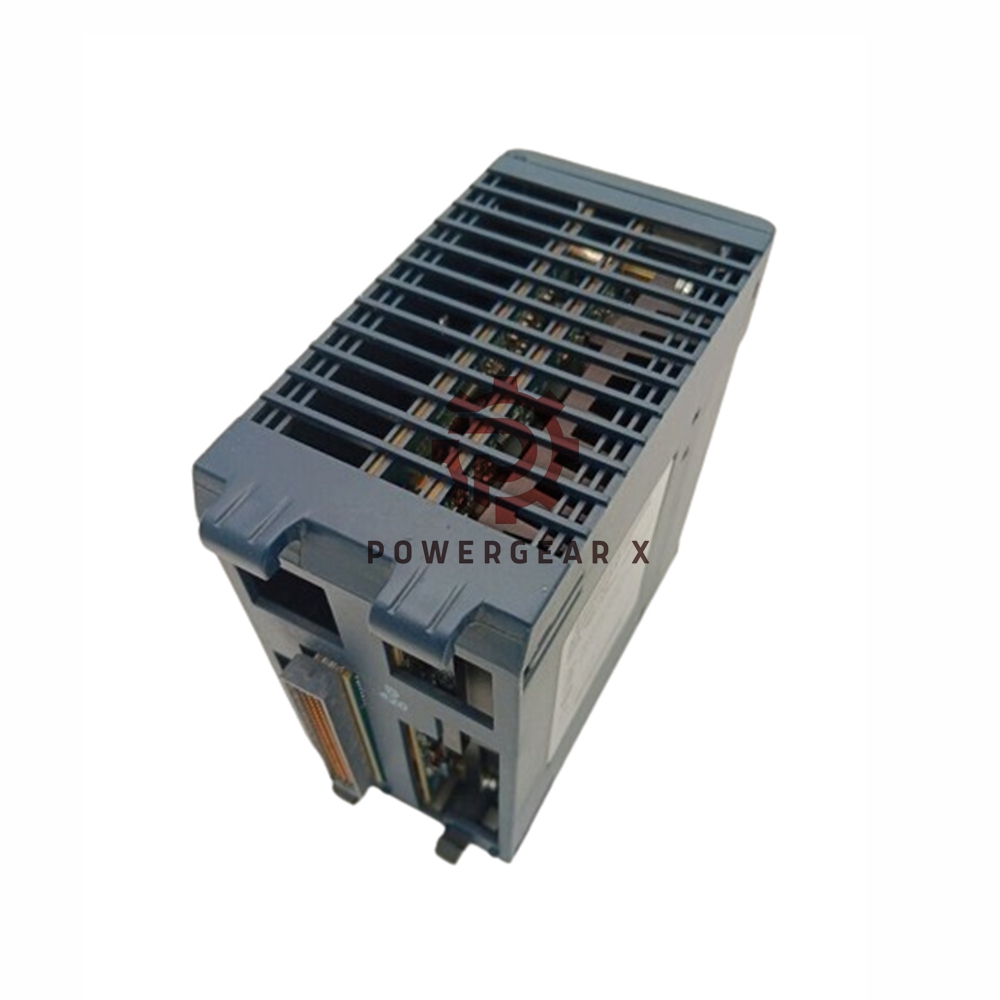

IC695CPU320 GE Fanuc Rx3i Controller Module CPU

Overview

The IC695CPU320 is a key controller module from GE Fanuc, designed to integrate seamlessly into the PACSystems RX3i platform. It provides high-speed data transfer, efficient communication, and flexible system migration, especially for upgrading legacy Series 90-30 PLCs to modern PAC systems. This module is well-suited for industrial automation and process control applications. It is compatible with multiple communication standards, including RS232 and RS485, and can be integrated with a variety of I/O modules, enhancing flexibility and scalability.

Technical Specifications

• Brand: GE Fanuc
• Model: IC695CPU320
• Processor: Celeron M, 1.0 GHz
• RAM: 64 MB
• NVRAM: 64 MB
• Communication Ports: 2 (RS232, RS485)
• Max Program Blocks: 512
• Max Block Size: 128 KB
• Memory Type: Non-volatile flash user memory
• Power Consumption: 1 Amp at 3.3V DC, 1.2 Amps at 5V DC
• Batteries: IC695ACC302 (Lithium Smart Battery)
• Operating Temperature: 0 to 60°C
• Compatibility: PACSystems RX3i, Series 90-30 I/O modules
• Protocols Supported: SNP, Modbus RTU slave, Serial I/O
• Backplane Support: RX3i Serial backplane, Dual backplane bus

FAQs

1. What I/O modules are compatible with the IC695CPU320?
   • It supports most Series 90-30 I/O modules, allowing for an easy transition from older systems.
2. How does the IC695CPU320 communicate with other devices?
   • It uses RS232 and RS485 communication ports, supporting protocols like SNP, Modbus RTU slave, and Serial I/O.
3. What power supply is required for the IC695CPU320?
   • It requires a standard power supply rated at 120–240V AC, 125V DC, and 40 watts.
4. What is the processor speed of the IC695CPU320?
   • The module features a 1.0 GHz Celeron M processor, offering high processing power for rapid task execution.

Check official datasheet for more detailed information: PACSystems RX3i IC695CPU320
