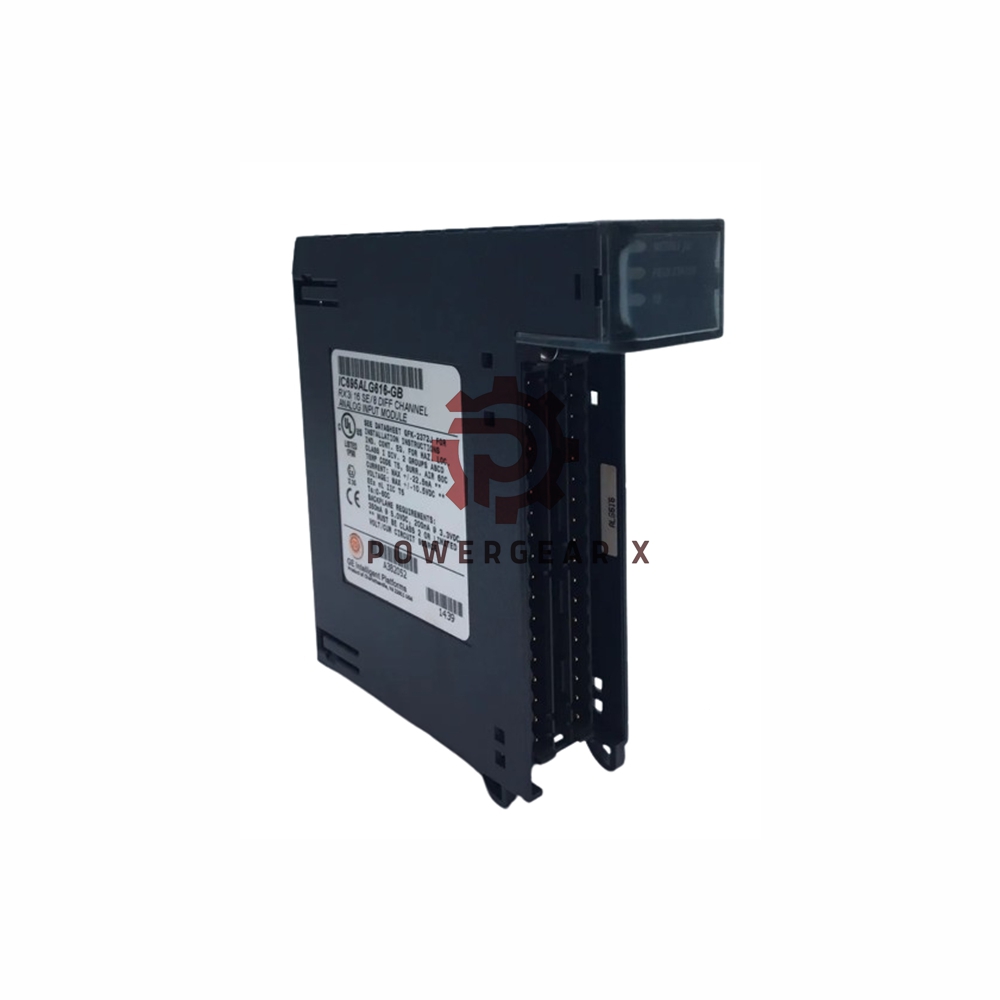

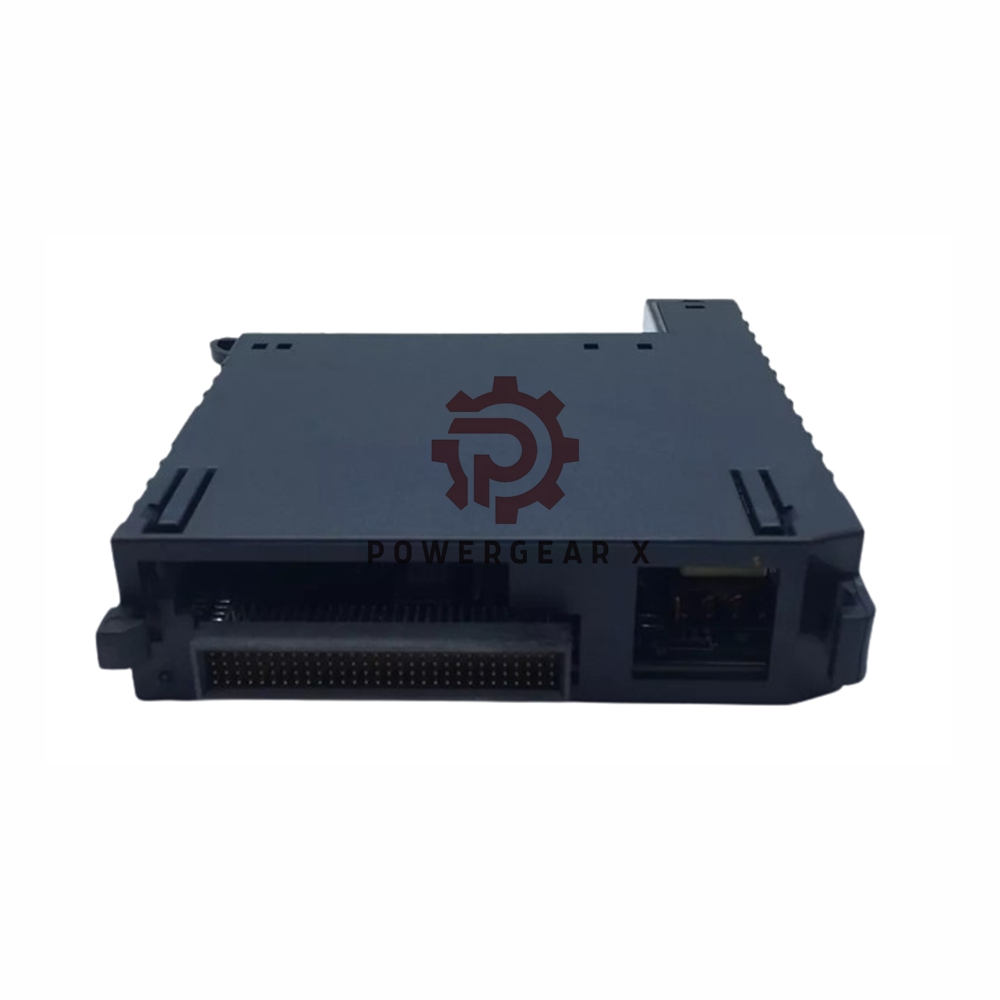

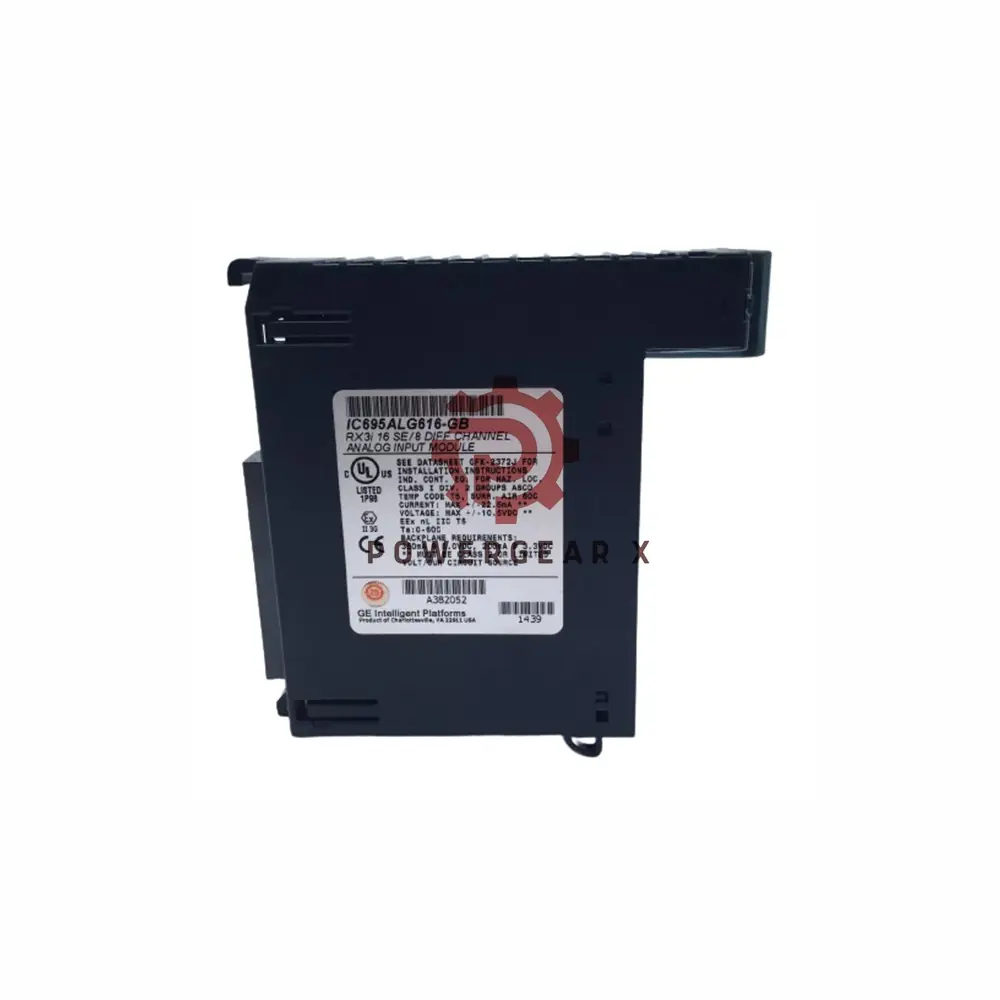

IC695ALG616 GE Fanuc RX3i Analog Input Module

Overview

The IC695ALG616 is a Programmable Automation Controller (PAC) analog input module suitable for industrial applications. This module, previously manufactured by GE Intelligent Platforms and now under Emerson Automation, provides advanced analog signal processing with a focus on precision and versatility.

Technical Specifications

• Brand: GE Fanuc
• Model: IC695ALG616
• Type: Analog Input Module

Key Features:

• Channels:
  • 16 Single-ended inputs
  • 8 Differential inputs
• Input Signal Compatibility:
  • Current:
    • 0 to 20 mA
    • 4 to 20 mA
    • ±20 mA
  • Voltage:
    • ±10V
    • 0 to 10V
    • ±5V
    • 0 to 5V
    • 1 to 5V
• ADC Resolution: 24-bit
• Internal Power Supply:
  • 3.3V at 450mA
  • 5V at 600mA
• Configurable Input Filter Options:
  • 8 Hz
  • 12 Hz
  • 16 Hz
  • 40 Hz
  • 200 Hz
  • 500 Hz
• Operating Temperature Range: 32°F to 140°F
• Storage Temperature Range: -40°F to 185°F
• Humidity: 5% to 95%, non-condensing
• Overvoltage Protection: ±60 VDC continuous
• Overcurrent Protection: ±28 mA continuous
• Open Circuit Detection Time: 1 second maximum
• Input Impedance: >100 kΩ for voltage inputs
• Current Input Resistance: 249 Ω ±1%
• Alarm Settings: Very Low, Low, High, Very High, plus Positive and Negative rate of change.

Indicators:

• Module OK LED: Displays operational status
• Field Status LED: Indicates terminal block or channel faults
• Terminal Block LED: Shows the presence of terminal blocks

FAQ

• Q: What types of signals can the IC695ALG616 process?
  A: It can process both current and voltage signals within specified ranges.
• Q: How does the module protect against overvoltage?
  A: The module includes built-in overvoltage protection up to ±60 VDC continuous.
• Q: What programming software is needed to configure this module?
  A: Proficy Machine Edition (PME) programming software.
• Q: Can the module perform auto-calibration?
  A: Yes, the module performs autocalibration during startup.
• Q: What is the temperature range for operation?
  A: The operating temperature ranges from 32°F to 140°F.
