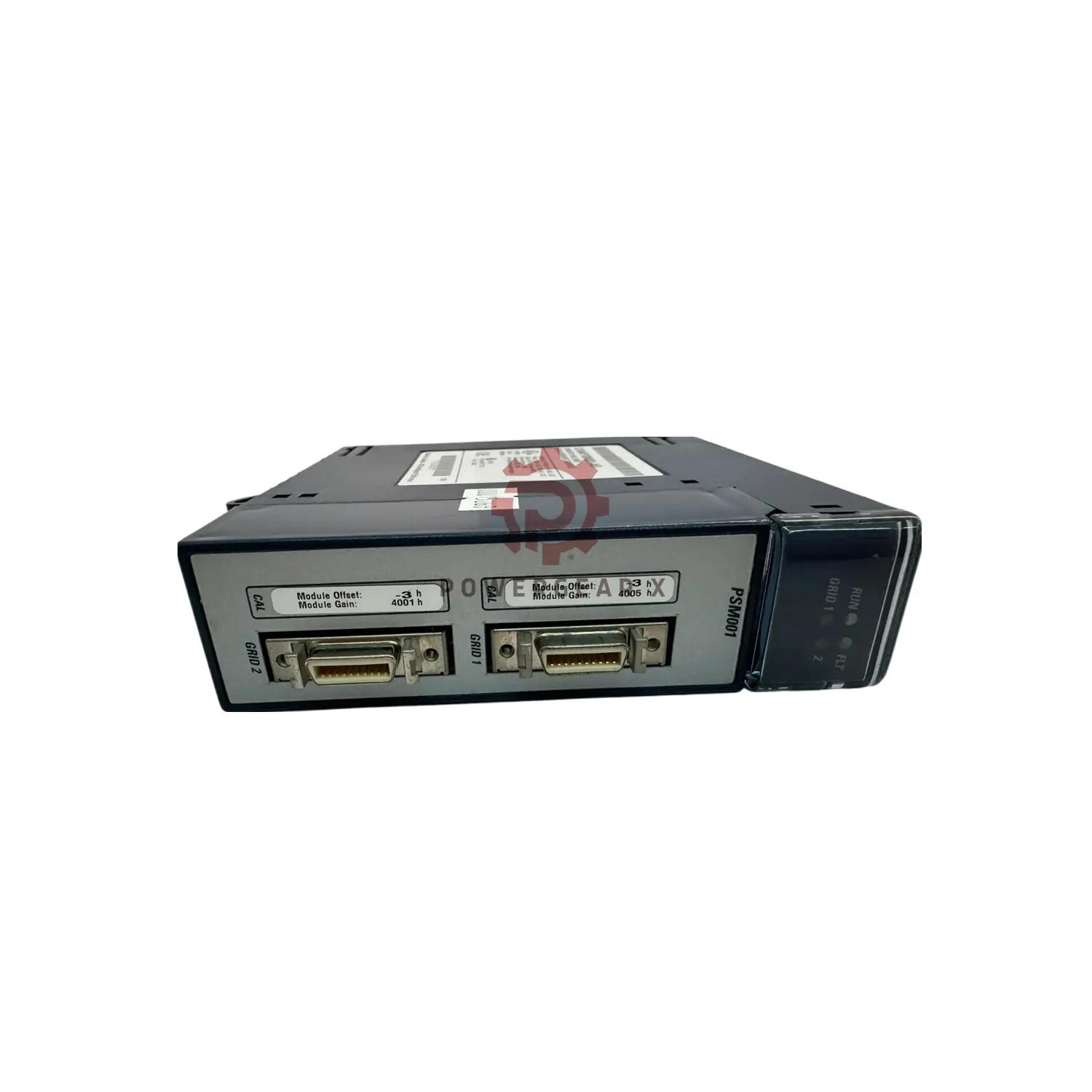

GE Fanuc IC694PSM001 Power Sync and Measurement Module for RX3i

Product Overview

The IC694PSM001 is a power sync and measurement module. It is used in RX3i PLC systems. It monitors two power grids at the same time. It supports hot swapping and installs in the main CPU rack.

Technical Specifications

• Voltage Inputs per Grid: 3
• Current Inputs per Grid: 4
• Power Supply: 5 VDC
• Hot Swapping: Supported
• Supported Power Systems: Single-phase, Wye 3-phase, Delta 3-phase
• Measured Parameters:
  • RMS Voltage
  • RMS Current
  • RMS Power
  • Frequency
  • Phase Angle Between Grids
• Digital Signal Processing (DSP): Built-in
• CPU Compatibility: RX3i CPUs, firmware v7.70 or higher

Installation Guide

• Install in RX3i CPU backplane
• Supports live install or removal (hot swap)
• Connect to terminal assembly and interface cables

Package Includes

• 1 x IC694PSM001 PSM Module
• Ships without certificate
• 12-month warranty included
