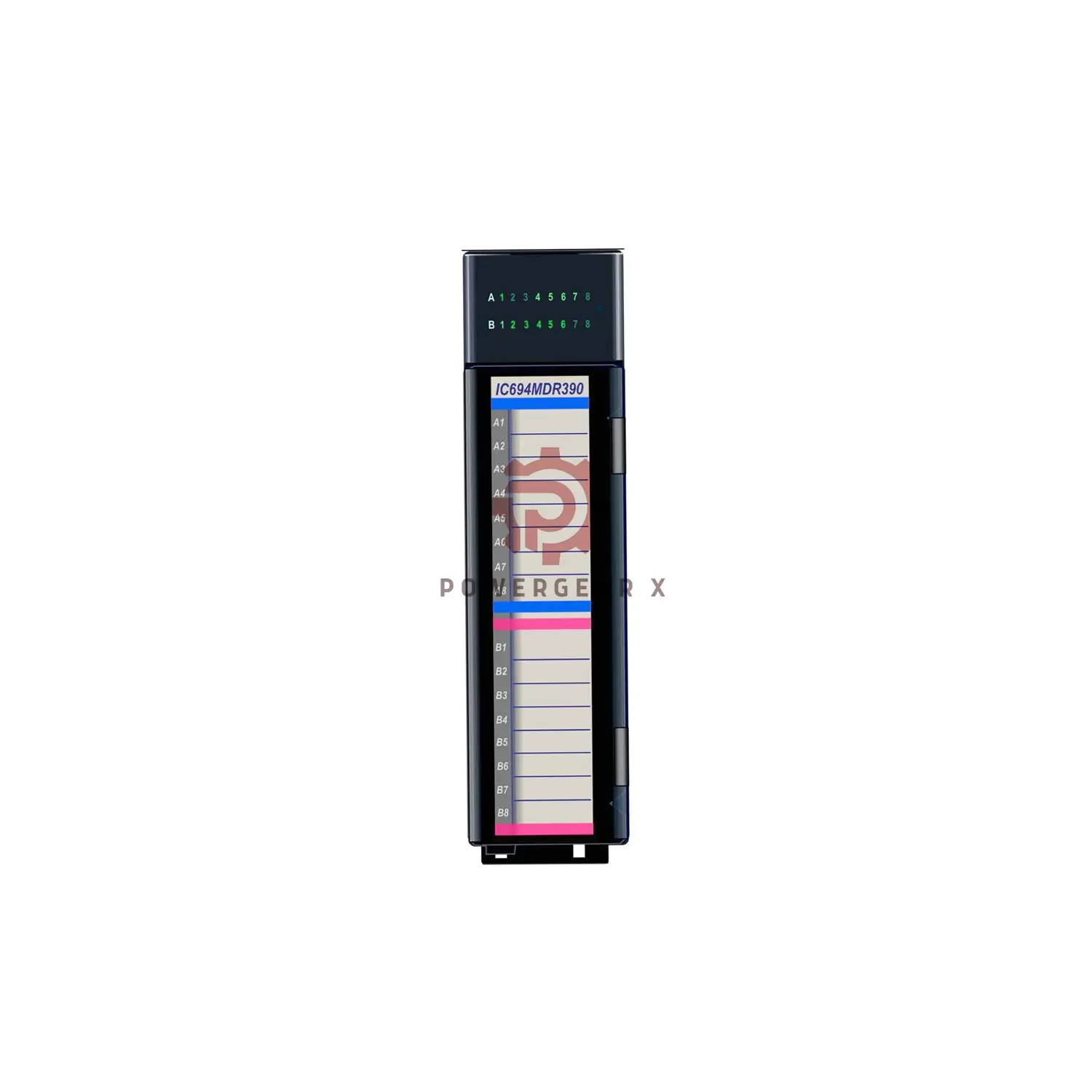

GE Fanuc IC694MDR390 Mixed I/O Module for RX3i PLC
Product Summary
The IC694MDR390 is a mixed I/O module made for RX3i PacSystem PLCs. It has 8 digital inputs and 8 relay outputs. All channels are isolated. It helps control devices like switches, lights, and motors in one unit.
Main Features
- 8 isolated digital inputs (sink or source type)
- 8 isolated relay outputs (normally open)
- Each channel has its own LED indicator
- Wide voltage range for input and output
- Fast switching and response
Technical Data
| Model | IC694MDR390 |
|---|---|
| Brand | GE Fanuc |
| System | RX3i PacSystem |
| Inputs | 8 channels, 5–30 VDC |
| Outputs | 8 relays, 5–250 VAC or 5–30 VDC |
| Max Output Load | 2 Amps |
| Input Current | 7.5 mA per point |
| Response Time | Inputs: 7.5 ms, Outputs: 15 ms |
| Isolation | 500 VAC between points |
| Backplane Use | 6 mA at 5 VDC |
| LEDs | 16 (one for each channel) |
How to Install
- Fits into any RX3i I/O slot
- Needs external power (AC or DC)
- Turn off system power before install
- Do not hot-swap
Usage Examples
- Control lights and buzzers in factories
- Read signals from sensors and switches
- Operate small machines with relay outputs
- Build compact control panels
Why Use This Module
- One module for both input and output
- Saves panel space
- Quick to check status with LEDs
- Reduces wiring errors
Compatibility
- Works only with RX3i PacSystem PLCs
- Use with pushbuttons, sensors, and lights
What You Get
- 1x GE Fanuc IC694MDR390 module
- Installation info sheet
- Factory packing (no certificate)
Shipping and Warranty
- Warranty: 12 months
- Ships by FedEx, UPS, or DHL
- Fast global delivery
