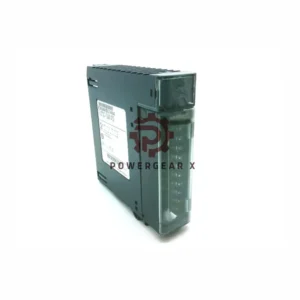

IC694MDL350 GE Fanuc RX3i Voltage Output Module

GE Fanuc IC694MDL350 RX3i AC Output Module

Quick Overview

The IC694MDL350 is a high-voltage output module. It has 16 channels. Each channel is isolated. It is made for 120 or 240V AC loads. It is part of the RX3i PACSystem series.

Main Features

• Output Channels: 16 (each one isolated)
• Voltage Range: 74–265V AC (47–63 Hz)
• Rated Voltage: 120V or 240V AC
• Max Output Current: 2A at 30°C, 1A at 60°C
• Fast Response Time: Max half cycle on/off
• Low Voltage Drop: Max 1.5V
• Leakage Current: Max 2 mA (off)
• Power Use: 315 mA when all outputs are active
• Inrush Current: Up to 20A for one cycle
• Isolation: 250V continuous, 1500V for 1 minute

Environment Specs

• Working Temperature: 0 to 60°C
• Storage Temperature: -40 to 85°C
• Humidity: 5% to 95% (non-condensing)
• Shock Limit: 15G, 11ms
• Vibration Limit: 10–57 Hz, 0.0524 mm

Mounting and Use

• Fits one RX3i slot
• Needs RX3i CPU (firmware 3.50+)
• Not for Series 90-30

Compatible Terminal Blocks

• IC694TBB032 (Box)
• IC694TBB132 (Extended Box)
• IC694TBS032 (Spring)
• IC694TBS132 (Extended Spring)

What’s in the Box

• 1 x IC694MDL350 module
• No certificate included
• 12-month warranty
