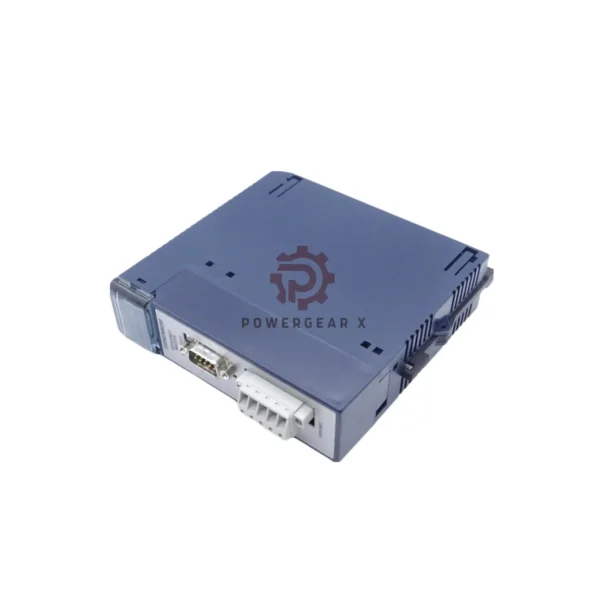

GE Fanuc IC694DNM200 DeviceNet Master Module for RX3i and 90-30 PLCs
Product Summary
The GE Fanuc IC694DNM200 is a DeviceNet Master module used with RX3i and Series 90-30 PLCs. It connects the CPU to a DeviceNet network and controls up to 63 slave devices. It fits into one slot on the backplane and runs on 5V DC from the PLC.
Main Features
- Supports up to 63 DeviceNet slaves
- Input and Output per slave: 255 Bytes each
- Total data capacity: 3972 Bytes input + 3972 Bytes output
- Baud rates: 125k, 250k, 500k
- Configurable scan rate and connection types
- No external power needed
Technical Specifications
| Model | IC694DNM200 |
|---|---|
| Brand | GE Fanuc (Now Emerson) |
| Series | PACSystem RX3i, Series 90-30 |
| Communication Type | DeviceNet Master |
| Input Capacity | 255 Bytes per slave |
| Output Capacity | 255 Bytes per slave |
| Total I/O Support | Up to 63 devices, 3972 Bytes max |
| Baud Rates | 125k, 250k, 500k |
| Power Draw | 450 mA at 5V DC (2.25W) |
| Network Power | 24V DC ± 4% |
| Firmware Update | Via RS232 port |
| Topology | Trunkline or Dropline |
| Redundancy | Not supported |
| Hot Swap | Not supported |
Installation Guide
- Mounts in any RX3i or Series 90-30 backplane slot
- Do not install in remote or expansion racks
- Use shielded DeviceNet cable with center drain wire
- Power comes from the backplane; no external power supply needed
Compatibility Notes
- Works with RX3i CPUs version 3.5 and up
- Also fits into Series 90-30 PLCs
- Works with devices that follow DeviceNet standards
Shipping and Warranty
- 12-month factory warranty
- Fast global delivery via FedEx, UPS, or DHL
- Secure packaging to protect module in transit
