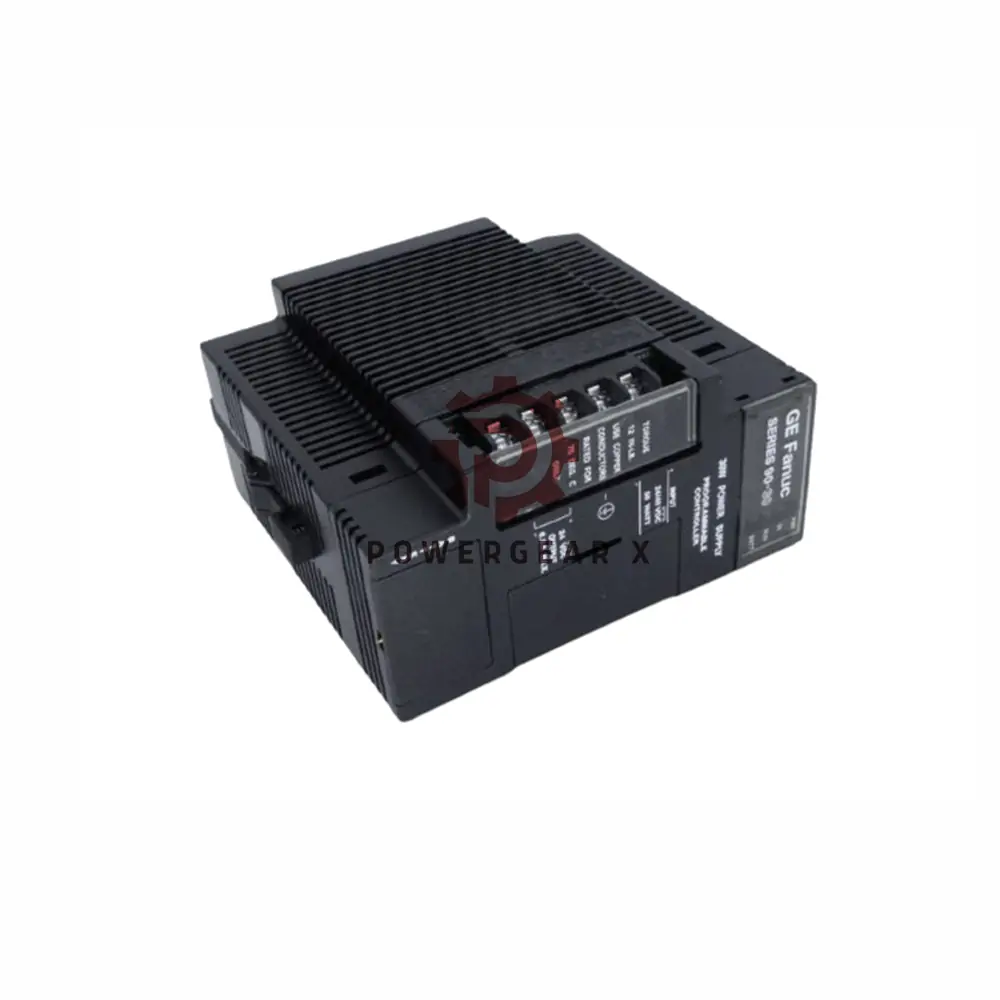

GE Fanuc IC693PWR322 Power Supply: Reliable 90-30 PLC Energy Source
Essential Power for Industrial Control
Standard 30W power supply module for GE Fanuc Series 90-30 PLC systems. Provides stable triple-output power with 24/48VDC input flexibility. Designed for demanding industrial environments with robust overload protection. Note: This product is discontinued but available for legacy system maintenance.
Core Technical Specifications
- Brand: GE Fanuc
- Model: IC693PWR322 (Series 90-30)
- Input Voltage: 24/48VDC (18-56VDC operating range)
- Outputs:
- 5VDC @ 15W (Backplane power)
- 24VDC Isolated @ 20W (External modules)
- 24VDC Relay @ 15W (Relay modules)
- Status Indicators: PWR, OK, RUN, BATT LEDs
- Communication: RS-485 (9-pin sub-D)
- Protection: Overvoltage (6.4-7V), Overcurrent (4A max)
Critical Performance Features
- Triple-output design for system flexibility
- Wide voltage input (18-56VDC) for unstable grids
- 14ms holdup time during power interruptions
- Inrush current protection (4A/100ms max)
- RAM battery backup support (IC693ACC301 compatible)
Installation & Safety
- Disconnect all power before installation
- Overvoltage protection via internal pin jumper (Pins 3-4)
- Accessible 15-pin D-connector behind front panel
- Mounts in Series 90-30 PLC racks
System Compatibility
Designed for GE Fanuc Series 90-30 PLC systems. Supports:
- • Backplane power for CPU modules
- • Relay output modules
- • 24VDC input modules
- • Hand-held programmers (via RS-485)
Package Includes
- 1x IC693PWR322 Power Supply Module
- Installation documentation
- 12-month replacement warranty
Global Shipping Options
FedEx | UPS | DHL | Express delivery available
Frequently Asked Questions
Q: Is this still supported by GE?
A: No, this is discontinued but available for existing systems.
Q: Can I replace the backup battery?
A: Yes, use IC693ACC301 battery for RAM retention.
Q: What’s the RS-485 port for?
A: Connects programmers and compatible devices.
