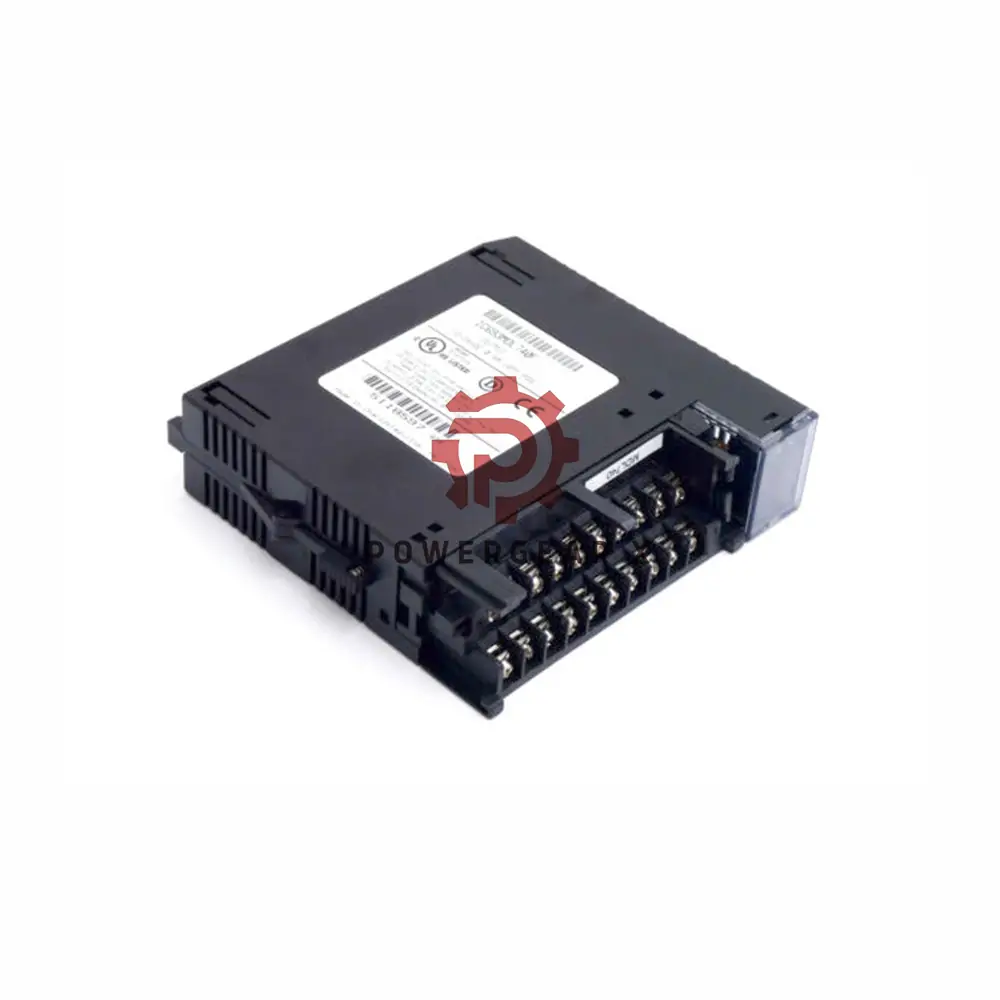

IC693MDL760 Voltage Output Module GE Fanuc Series 90-30

IC693MDL760 Series 90-30 Solenoid Valve Output Module

Main Specifications

• Output Types: 5 digital (24 VDC) + 11 pneumatic outputs
• Pneumatic Valve Type: 3-way solenoid valve
• Peak Supply Pressure: 100 PSI max
• Solenoid Power Range: 21.6 to 26.4 VDC
• Inrush Current: 33 mA per valve
• Holding Current: 13 mA per valve
• Backplane Current Draw: Max 75 mA
• Operating Temperature: Up to 45°C
• On/Off Response Time: 12 ms max
• LED Indicators: Yes, one per output

Output Operation Limits by Temperature

• At 30°C: All 11 pneumatic outputs can stay ON
• At 40°C: Max 6 pneumatic outputs ON
• At 45°C: Max 4 pneumatic outputs ON

What You Receive

• IC693MDL760 Output Module
• Quick Install Sheet
• Mounting hardware

Shipping and Support

We ship via FedEx, UPS, and DHL. Each module comes with a 12-month warranty. Our support team is available 24 hours to help you with setup or any issues.
