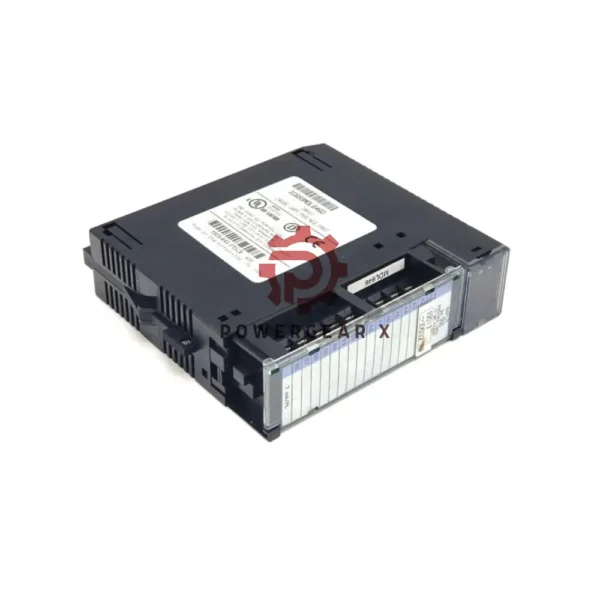

GE Fanuc IC693MDL648 48VDC Discrete Input Module | Series 90-30 | 16-Point Logic Input
Product Overview
The GE Fanuc IC693MDL648 is a DC discrete input module built for the Series 90-30 PLC system. It supports both positive and negative logic and features 16 input channels. With a wide voltage range and high trigger voltage, this module is ideal for industrial applications requiring reliable signal detection from field devices.
Key Technical Specifications
- Rated Voltage: 48 Volts DC
- Input Voltage Range: 0 to 60 VDC
- Trigger Voltage: 34 to 60 VDC
- Input Current: 4.2 mA per channel
- Number of Input Points: 16
- Response Time: 1 ms ON / 1 ms OFF
- Logic Type: Positive / Negative
- Isolation: Optically coupled with isolated DC-DC converter
Power Requirements
- Backplane Power: 80 mA @ 5 VDC
- Isolated Power: 125 mA @ 24 VDC
Module Features
- Connector: Terminal block with 20 screws (included)
- Status LEDs: Individual indicators for each input channel
- Bus Support: I/O communication bus and power bus
- Mounting: 4-hole metal backplate with retainer slots
Installation and Compatibility
- Mounts in GE Series 90-30 baseplate with expansion support
- Works with prewired I/O bus expansion cables
- Compatible with multiple Series 90-30 I/O modules
Typical Applications
- Connects pushbuttons, sensors, and switches
- Used in high-voltage industrial control environments
- Ideal for remote control panels and factory automation lines
Packaging Details
- 1 x IC693MDL648 Input Module
- 1 x Screw-terminal block (20 screws included)
- 1 x Pre-installed wiring insert under front door
Warranty and Shipping
- 12-month limited warranty
- Ships via FedEx, UPS, or DHL worldwide
- Packaged with anti-static protection for safety
