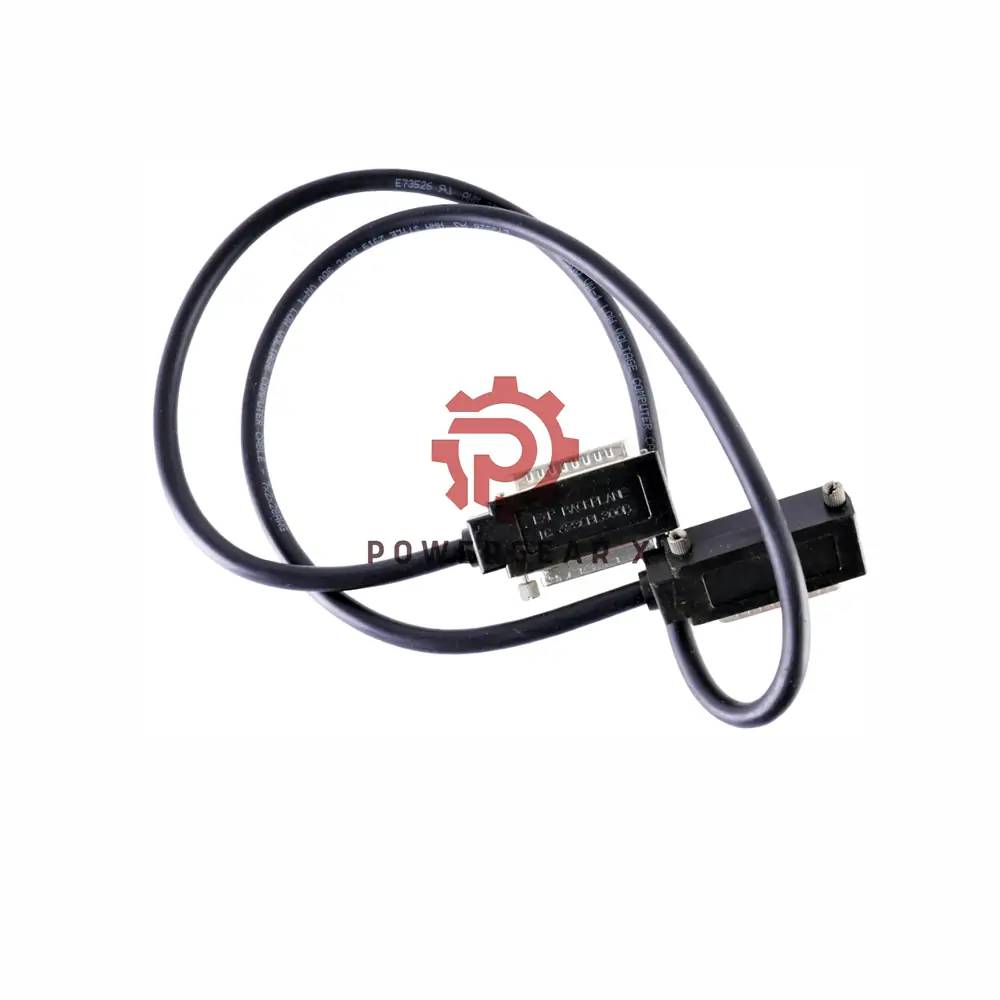

GE Fanuc IC693CBL319 Axis Control Cable
Cable Function
Connect Series 90-30 positioning modules to drives/controllers. Essential for motion control systems. 3ft length with noise-shielded wiring.
Technical Specifications
- Brand: GE Fanuc Automation
- Model: IC693CBL319 (Full suffix)
- End A: 24-pin female (module connection)
- End B: 25-pin terminal block (drive connection)
- Length: 3 feet (0.9 meters)
- Wire Gauge: 28 AWG shielded
- Voltage Rating: 60V DC max
- Current Capacity: 2A per pin
- Temp Range: -20°C to 75°C
- Pin Coding: A1-A12/B1-B12 (24-pin) → 1-25 (terminal)
Installation Guide
1. Plug 24-pin end into APU301/APU302 module
2. Wire 25-pin terminal block to drive
3. Use two cables per axis module
4. Ground shield at both ends
Compatible Equipment
Works with IC693APU301/APU302 axis modules. For Motion Mate systems. Alternatives: CBL317 (3m) or CBL320 (1m).
Package Contents
- IC693CBL319 Cable (3ft)
- Pinout diagram
Warranty & Shipping
12-month warranty. Ships globally via FedEx/UPS/DHL. Express options available.
FAQ
Q: How many cables per module?
A: Two cables required per APU301/APU302
Q: Noise protection?
A: Shielded design – use CBL317 for external drain wire
Q: Maximum voltage?
A: Do not exceed 60V DC between pins
