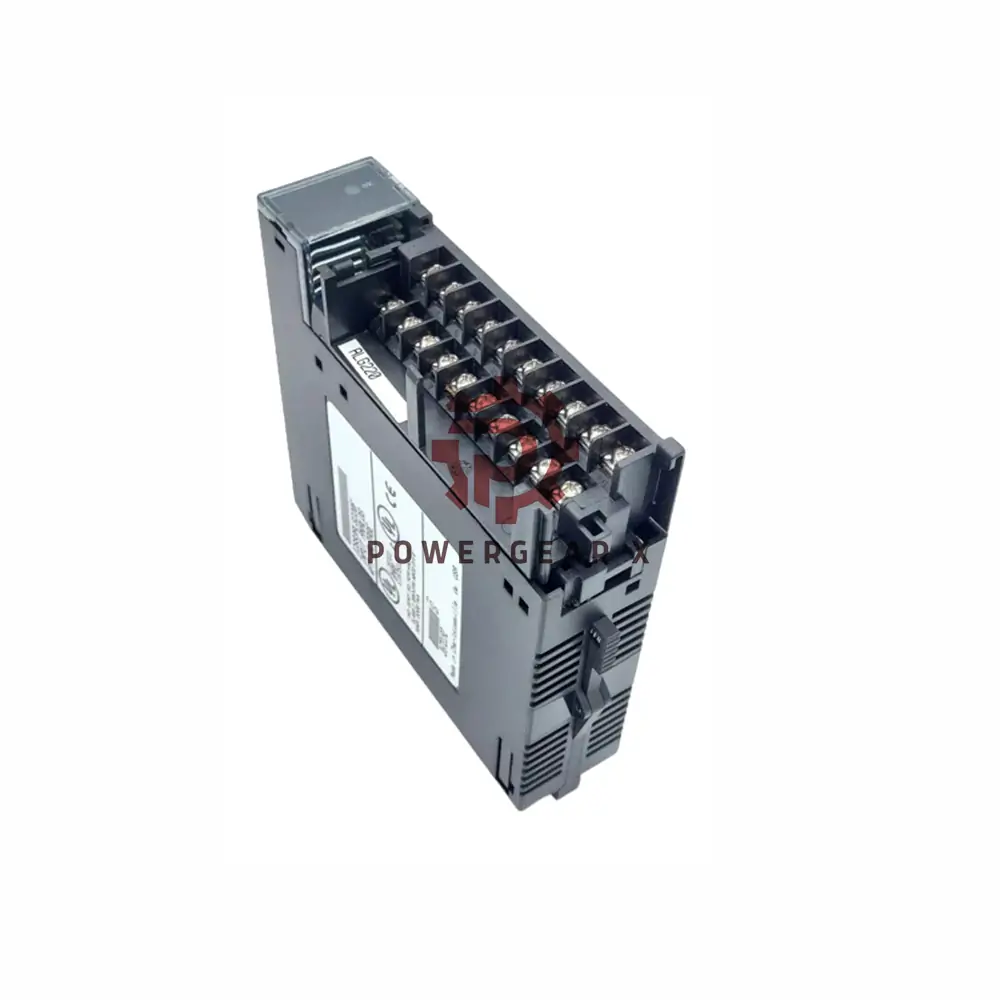

GE Fanuc IC693ALG442 Analog Current/Voltage Combination Module

Core Technical Specifications

• Input Channels: 4 differential, supports 0 to +10 V, –10 to +10 V, 0-20 mA, 4-20 mA, and enhanced 4-20 mA
• Output Channels: 2 single-ended, 0 to +10 V, –10 to +10 V, 0-20 mA, 4-20 mA
• Accuracy: ±0.25% at 25°C, ±0.5% over operating range
• Resolution: 2.5 mV at 0-10 V, 5 mV at -10 to 10 V, 0.5 µA (4-20 mA), 0.625 µA (0-20 mA)
• Input Impedance: 800 KΩ
• Update Rate: 8 ms for inputs, 4 ms for outputs
• Power Supply: 20-30 VDC external, 5 VDC internal
• Power Consumption: 95 mA internal +5V, 129 mA external 24 VDC
• Operating Temperature: -10°C to 60°C
• Isolation: 1500 VAC field to logic

Installation and Compatibility

• Fits Series 90-30 5-slot or 10-slot baseplates
• Easy wiring with 20-terminal connector block
• Use shielded cables to reduce noise
• Compatible with Series 90-30 PLC systems

Package Contents

• 1 x IC693ALG442 Analog Combination Module
• 12-month warranty included
