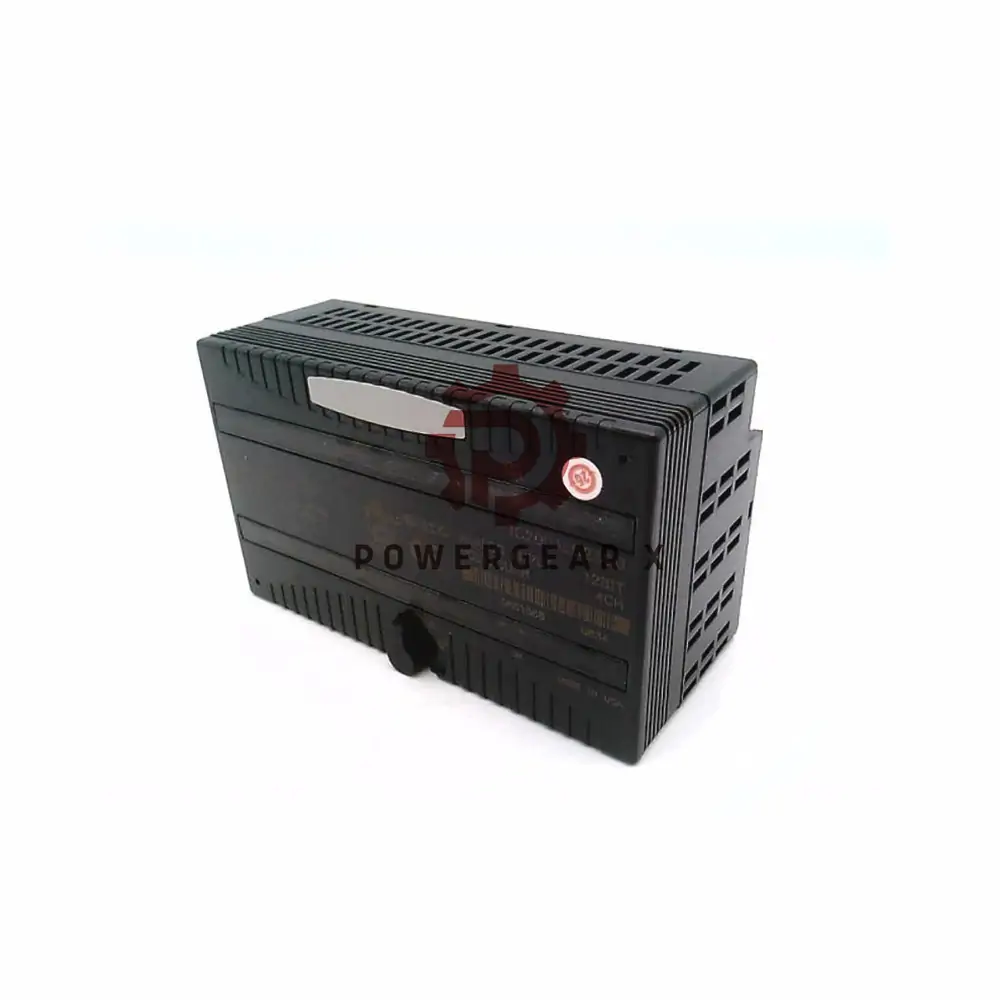

IC200ALG620 GE Fanuc Analog Input Module VersaMax

Emerson IC200ALG620 – Precision 4-Channel RTD Input Module

Product Highlights

New IC200ALG620 delivers 16-bit temperature precision for industrial monitoring. Supports all major RTD types with 3/4-wire connections. Ships factory-sealed with 12-month warranty.

Key Specifications

• Input Channels: 4 isolated RTD inputs
• Supported Sensors:
  • Platinum (25Ω/100Ω/1000Ω)
  • Copper (10Ω/50Ω/100Ω)
  • Nickel (100Ω/120Ω/604Ω)
• Resolution: 16-bit temperature accuracy
• Measurement Accuracy: ±0.15%
• Update Speed: 210ms @60Hz
• Resistance Range: 0-3000Ω

Advanced Features

• 3-wire and 4-wire RTD support
• Dual LED indicators (FLD PWR + OK)
• Comprehensive diagnostics:
  • Open sensor detection
  • Short circuit alerts
  • Wiring fault monitoring
• High noise immunity (120dB CMRR)

Wiring & Configuration

• Max Lead Resistance: 5Ω per wire
• Isolation: 1500VAC input-to-frame
• Power: 125mA @5VDC backplane
• Operating Temp: 0-60°C
• No external power required

Diagnostics & Safety

• Real-time sensor health monitoring
• Over/underrange detection
• Memory fault detection
• High/low alarm thresholds

Package Contents

• IC200ALG620 module
• Installation documentation
• 12-month precision warranty

Shipping Information

Global delivery via FedEx, UPS, DHL. Ships same day for in-stock items.

FAQ

• Q: Difference between 3-wire and 4-wire?
  A: 4-wire provides better accuracy by eliminating lead resistance errors
• Q: Minimum temperature change detected?
  A: ±0.01°C precision (depends on RTD type)
• Q: Can I mix different RTD types?
  A: Yes – each channel independently configurable
• Q: Suitable for high-vibration areas?
  A> Yes – designed for industrial environments
