Product details

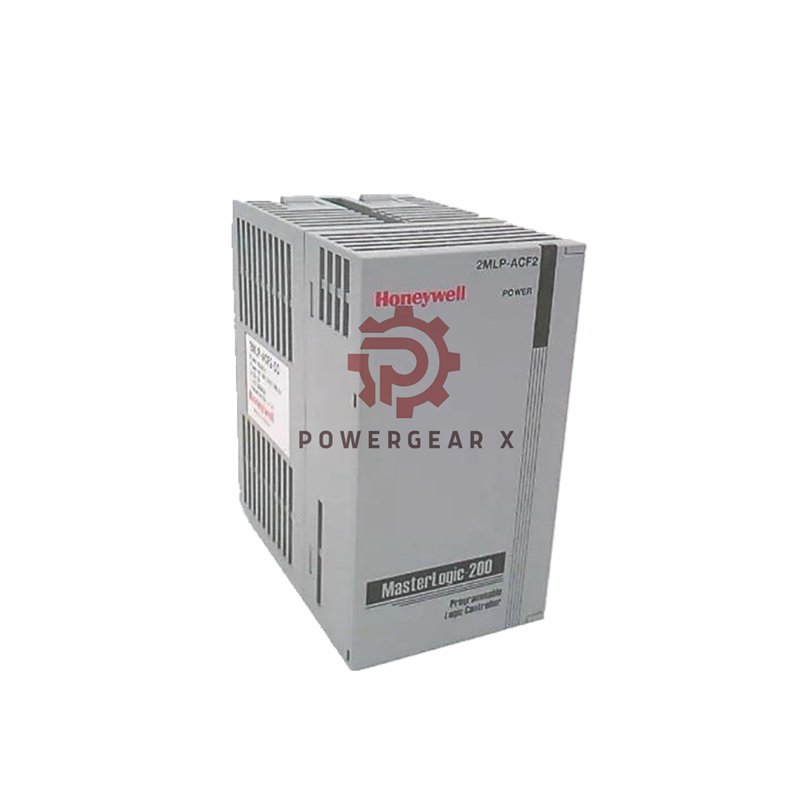

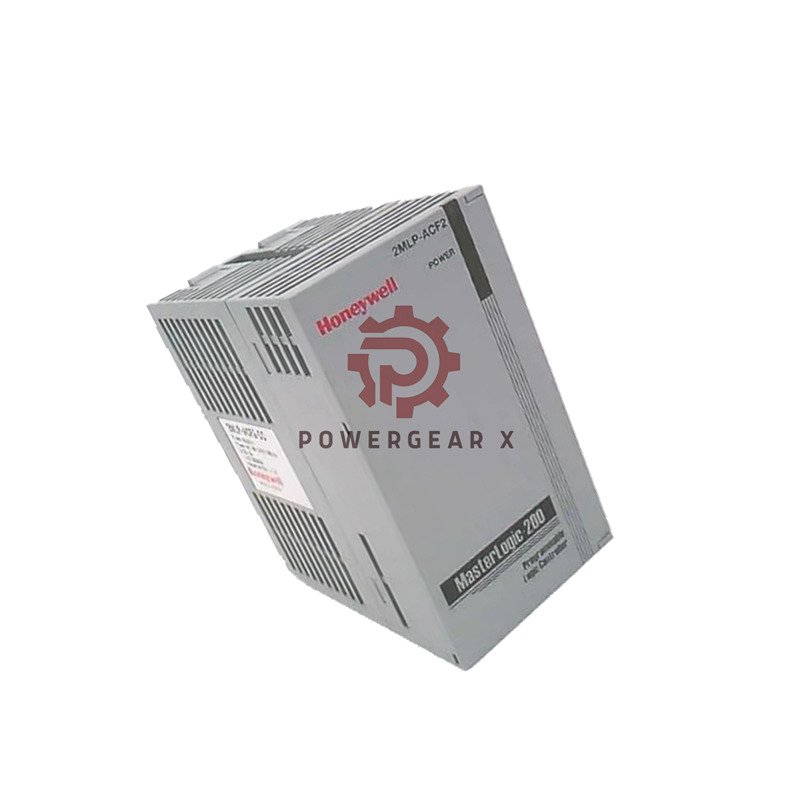

Honeywell 2MLP-ACF2 Power Supply | MASTERLOGIC 200 Series
The Honeywell 2MLP-ACF2 is a compact industrial power module. It provides stable DC output and broad AC input. Ideal for automation and control systems.
Main Highlights
- Wide voltage range: Operates from AC 85V to 264V.
- Stable output: DC 5V ±2% at 6A continuous current.
- Fast response — less than 10 ms ON/OFF switching for precise signal timing.
- High durability — 20 million mechanical operations and 100,000 electrical cycles.
- LED indicator shows voltage status clearly during system monitoring.
- Integrated fuse (UL standard) ensures safe protection from overload or surge.
- Free voltage type supports 110V / 220V power environments globally.
Technical Data
- Brand: Honeywell
- Model: 2MLP-ACF2
- Input voltage: AC 100–240V (50/60 Hz)
- Input range: AC 85–264V
- Output voltage: DC 5V ±2%
- Output current: 6.0A continuous, 6.6A protection trip
- Over-voltage protection: 5.5V – 6.5V
- Efficiency: ≥65%
- Weight: 0.4 kg
- RUN Contact: DC 24V, 0.5A
- Terminal type: RAV 1.25–3.5, RAV 2–3.5, 0.75–2 mm cable
- Temperature: -10°C to 55°C operating range
- Humidity tolerance: Up to 90% non-condensing
- Shock resistance: 15G (IEC 60068-2-27 standard)
Installation & Use
- Mount on a ventilated panel to avoid overheating.
- Use appropriate wire gauge and secure compression terminals firmly.
- Confirm LED ON before connecting downstream control modules.
- Keep at least 20 mm clearance for cooling airflow.
Warranty & Shipping
- Includes 12-month warranty from the date of shipment.
- Ships globally via FedEx, UPS, and DHL.
- Each unit is factory-tested before dispatch for reliability.
FAQ
- Q: Can the 2MLP-ACF2 run on both 110V and 220V power systems?
- A: Yes, it supports free voltage input from 85V to 264V AC.
- Q: What is the typical ripple or noise level of the DC 5V output?
- A: Ripple remains below 100 mVp-p, ensuring stable power to sensitive logic boards.
- Q: How can I check if the output is normal?
- A: The front LED indicator lights up when DC 5V output is stable.
- Q: Is the power supply suitable for continuous 24-hour operation?
- A: Yes, it is designed for round-the-clock use in industrial automation systems.
- Q: How do I order or request a quotation?
- A: Contact sales@powergearx.com or WhatsApp +86 18030005825 for assistance.
