Product details

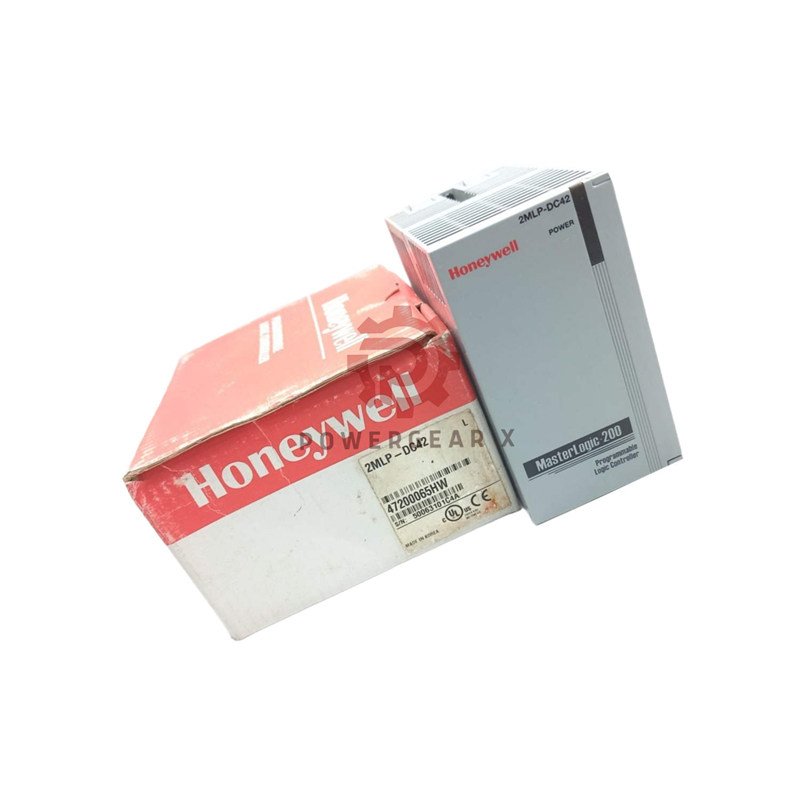

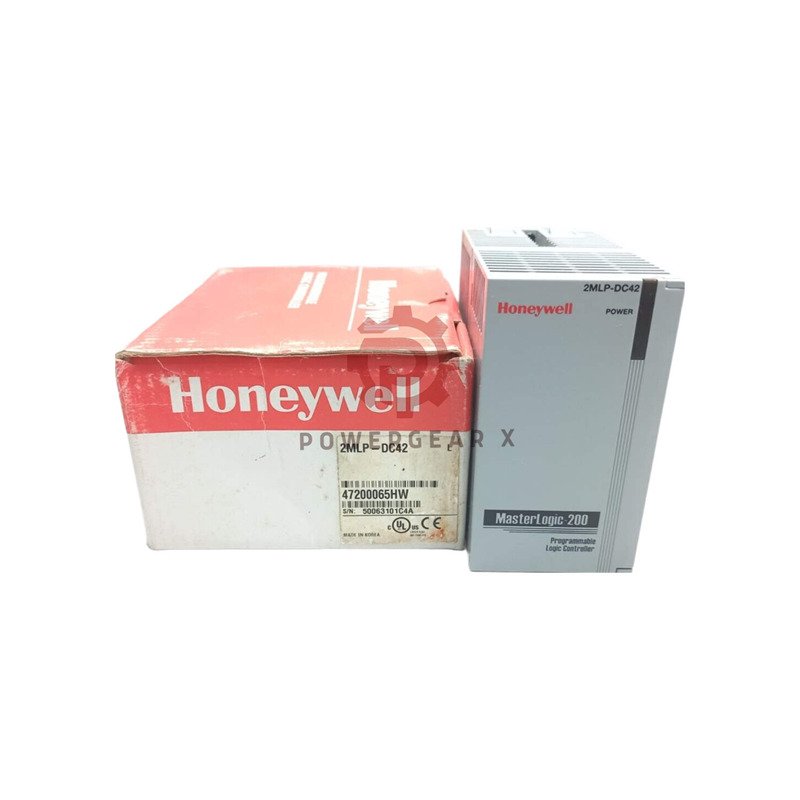

Honeywell 2MLP-DC42 Power Supply for MasterLogic-200
The Honeywell 2MLP-DC42 provides reliable and consistent DC power for automation systems.
It ensures stable output, high efficiency, and long service life, designed to meet demanding industrial environments.
Core Highlights
- Manufacturer: Honeywell MasterLogic-200 Series
- Model: 2MLP-DC42
- Type: Industrial Power Supply Unit
- Input Voltage: 24V DC
- Input Current: 80A peak or less
- Efficiency: 60% or more at rated load
- Built-in input fuse (UL Slow Blow Type)
- Instantaneous interruption tolerance: 10 ms or shorter
- Output Voltage: 5V DC (±2%)
- Output Current: 6.0A
- Over-current protection activates at 6.6A or higher
- Over-voltage protection range: 5.5V – 6.5V
- LED indicator shows voltage output status
- Application RUN contact: DC 24V, 0.5A
- Switching load minimum: DC 5V, 1mA
Performance & Durability
- Response Time: OFF→ON 10ms, ON→OFF 12ms or less
- Mechanical Life: Over 20 million operations
- Electrical Life: Over 100,000 operations at rated current
- Supports stable voltage under load fluctuations
- Compact 0.5kg body suitable for cabinet installation
- Cable range: 0.75–2 mm, easy to connect with compressed terminals
Battery Specifications
- Nominal Voltage/Current: DC 3.0V / 1,800mAh
- Type: Manganese dioxide lithium battery
- Backup: Program, data, and RTC memory
- Battery Life: 5 years (at room temperature)
- Size: φ17.0 × 33.5mm
Reliability & Safety Features
- Automatic over-current and over-voltage protection
- LED indicator for real-time output voltage monitoring
- Stable power during short interruptions (≤10ms)
- High safety standard UL fuse design for circuit protection
- Durable performance in high-load industrial applications
Shipping & Warranty
- Fast worldwide delivery via FedEx, UPS, and DHL.
- Each unit is securely packaged with anti-static protection.
- Standard warranty: 12 months from delivery date.
- Express handling available for urgent production projects.
FAQ
- Q: What is the rated input voltage for the 2MLP-DC42?
A: It uses a 24V DC input supply for stable operation. - Q: How much output current does it provide?
A: The output current is 6A with over-current protection at 6.6A. - Q: Can it handle short power interruptions?
A: Yes, it can maintain performance during interruptions shorter than 10 milliseconds. - Q: What type of fuse is used inside the module?
A: It has a built-in UL standard slow-blow fuse that cannot be replaced by the user. - Q: Does the power supply include a backup battery?
A: Yes, a 3.0V 1,800mAh lithium battery for data and clock backup is included.
Contact & Ordering
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
- Request your quote for 2MLP-DC42 now and check stock availability.
- Bulk and OEM supply available for industrial system integrators.
