Advanced Digital Output Protection Module

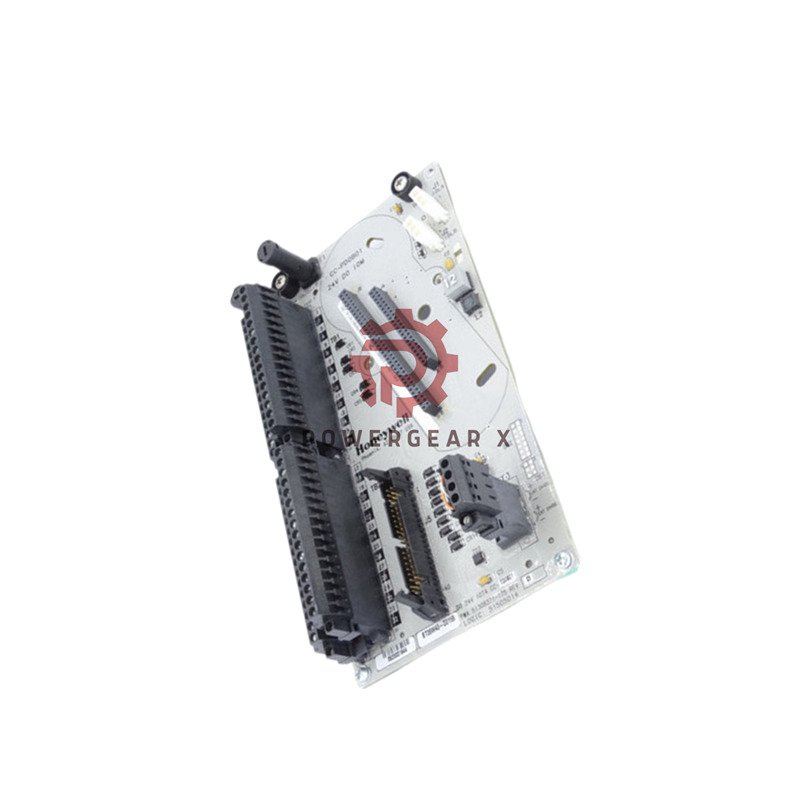

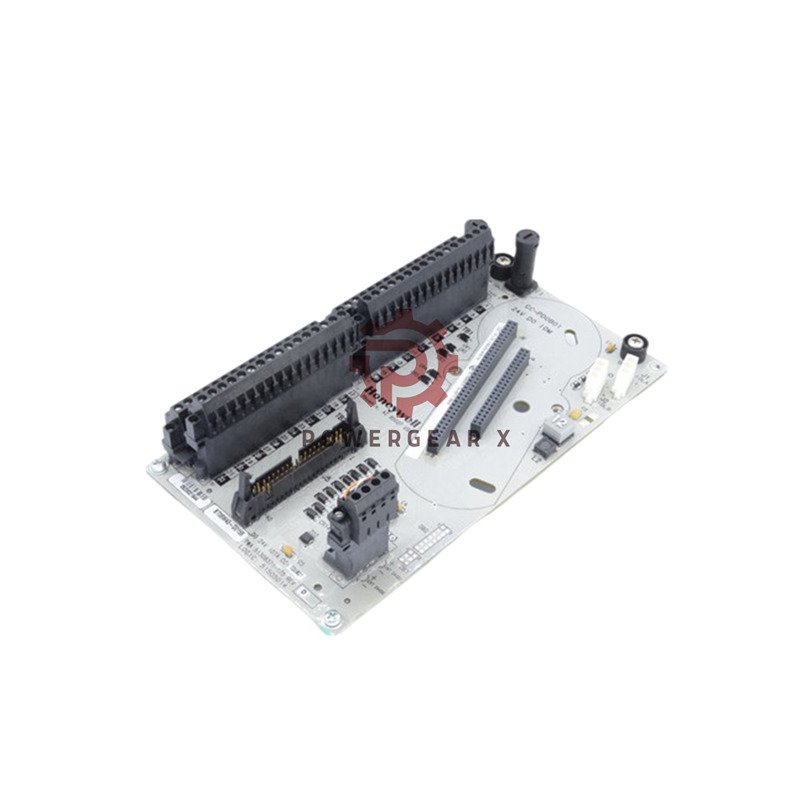

The CC-TDOB01 51308371-175 24V Digital Output Module provides intelligent protection against field short circuits. This industrial-grade module automatically detects over-current conditions and takes immediate action to prevent damage.
Technical Specifications
- Brand: Honeywell
- Model: CC-TDOB01 51308371-175
- Output Voltage: 24V DC ±10%
- Over-Current Response: Immediate shutdown with alarm activation
- Thermal Protection: >0.5A continuous short-circuit detection
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Humidity Rating: 5% to 95% non-condensing
- Unit Weight: 300 grams (0.66 lbs)
- Channel Independence: Complete electrical isolation between outputs
Installation & Packaging
- Mount the module in a well-ventilated industrial control cabinet
- Ensure proper wiring according to the installation manual specifications
- Maintain clearances for heat dissipation and maintenance access
- Package includes: CC-TDOB01 51308371-175 module and installation guide
- Shipping options include FedEx, UPS, and DHL express services
- All modules undergo full functional testing before shipment
Frequently Asked Questions
- What happens when a short circuit occurs?
The module immediately shuts down the affected output and generates a soft failure alarm.
- Can one channel failure affect other outputs?
No, each channel operates independently with complete electrical isolation.
- How do I restore operation after a fault?
Clear the short circuit condition and manually reset the affected point.
- What environmental conditions does this module support?
It operates reliably in temperatures from -20°C to 60°C and high humidity environments.
