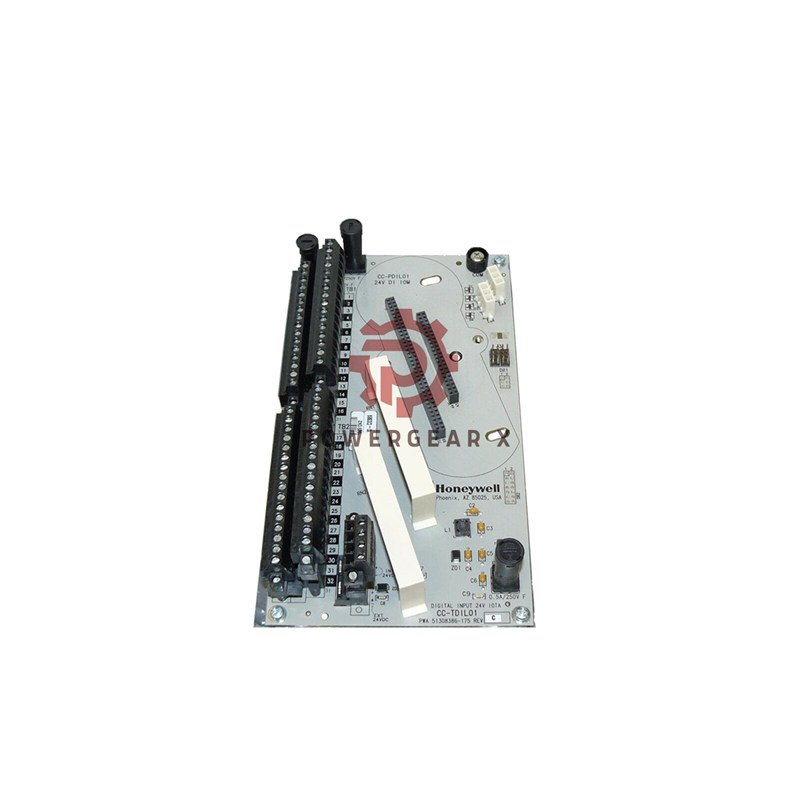

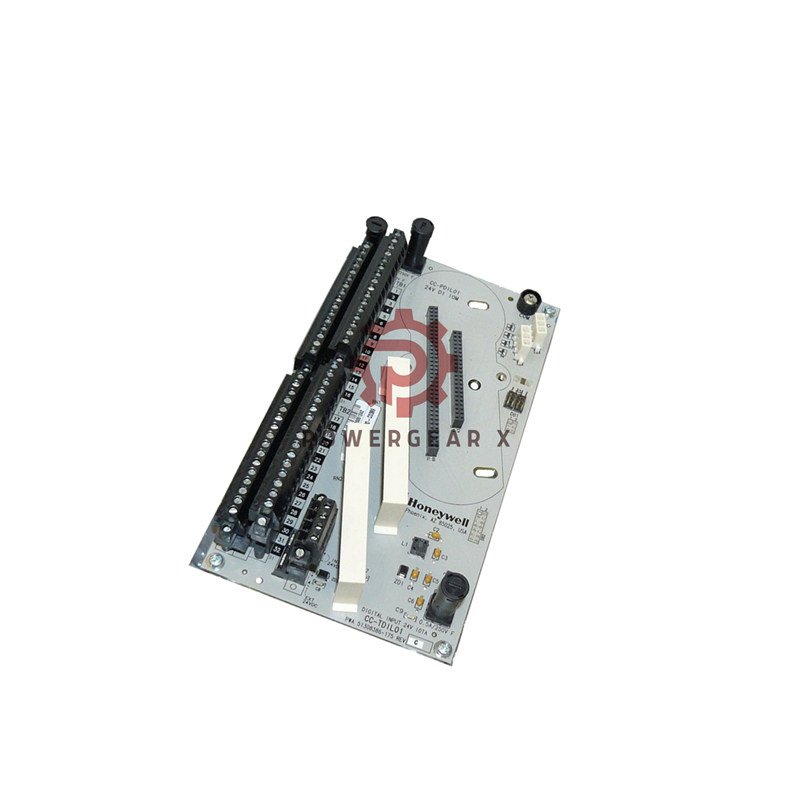

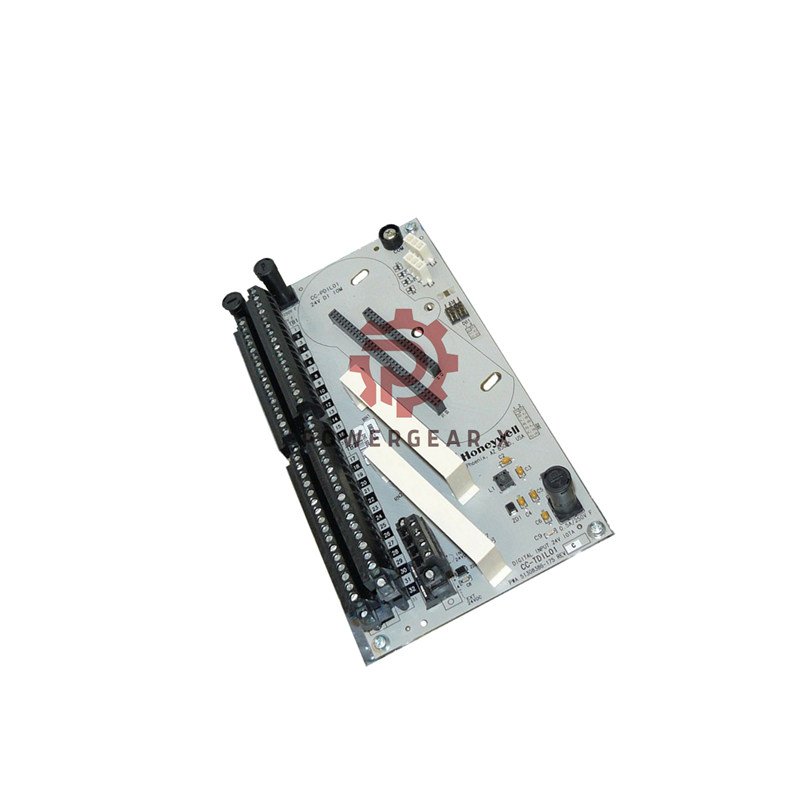

Honeywell CC-TDIL01 Digital Input Board
This 24V IOTA board connects digital signals to control systems. It works in tough industrial places. The board keeps your equipment safe from electrical problems.
Main Product Benefits
- Safe for Hazardous Areas: Approved for Division 2 and Zone 2 locations
- Flexible Power Options: Choose internal or external power with simple jumper
- Strong Short-Circuit Protection: Each input protected separately
- Independent Channel Operation: One channel failure won’t affect others
- Wide Temperature Range: Works from -20°C to +60°C
Technical Details
- Brand: Honeywell
- Model: CC-TDIL01 IOTA Board
- Input Voltage: 24V DC nominal
- Input Current: 5mA per point typical
- Response Time: <10ms update rate
- Isolation Voltage: 500V channel to system
- Connection Type: Removable terminal blocks
- Wiring Size: 12-24 AWG recommended
- Product Weight: 0.3 kg (0.66 lbs)
- Warranty Period: 12 months
What’s in the Box
- CC-TDIL01 Digital Input Board
- IOTA terminal assembly
- Plug-in connector blocks
- Protection fuses
- Installation guide
Shipping & Support
- We ship worldwide via FedEx, UPS, DHL
- Most orders ship within 24 hours
- Email: sales@powergearx.com
- Phone: +86 18030005825
Common Questions
- What is the maximum input voltage?
The board handles 24V DC inputs with 30V maximum rating.
- Can I use different power sources?
Yes, use jumper TB3 to select internal or external power.
- How many input points are there?
The standard CC-TDIL01 has 16 digital input points.
- Is this board safe for wet areas?
It has protection against moisture and dust contamination.
- What happens during power loss?
The board saves its configuration and restarts automatically.
