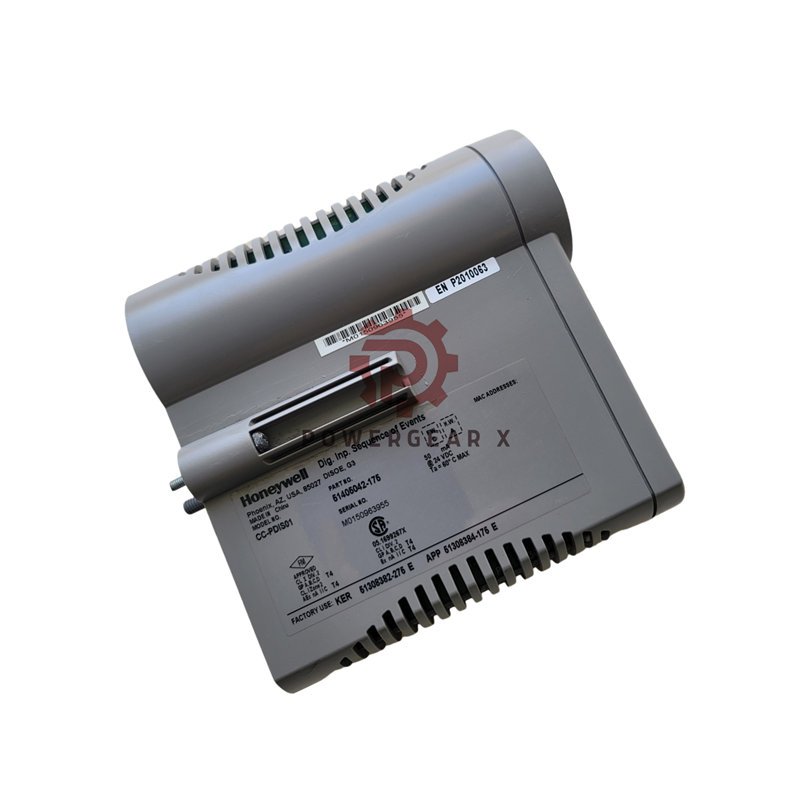

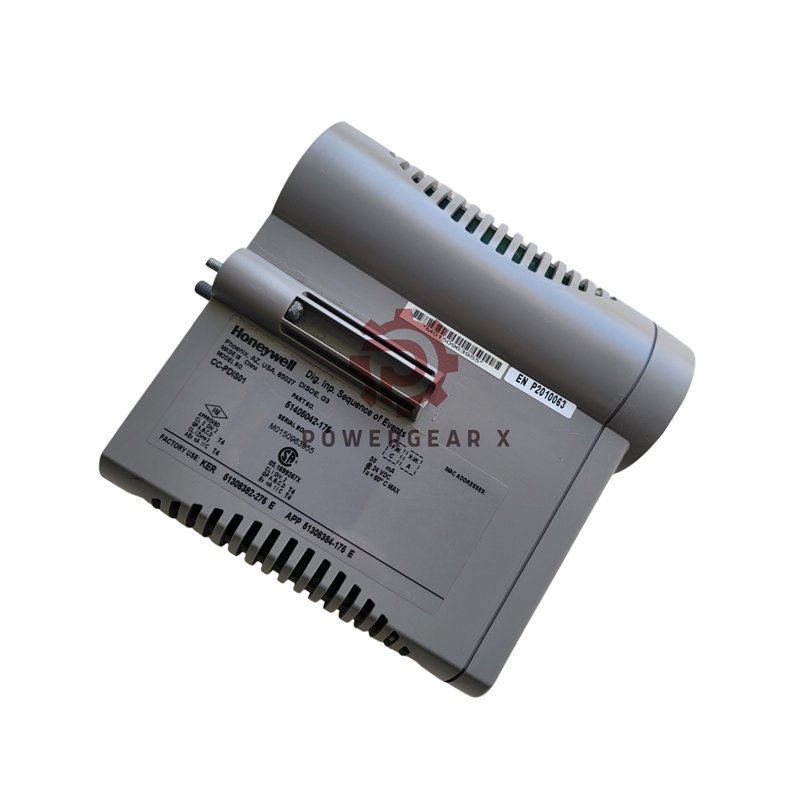

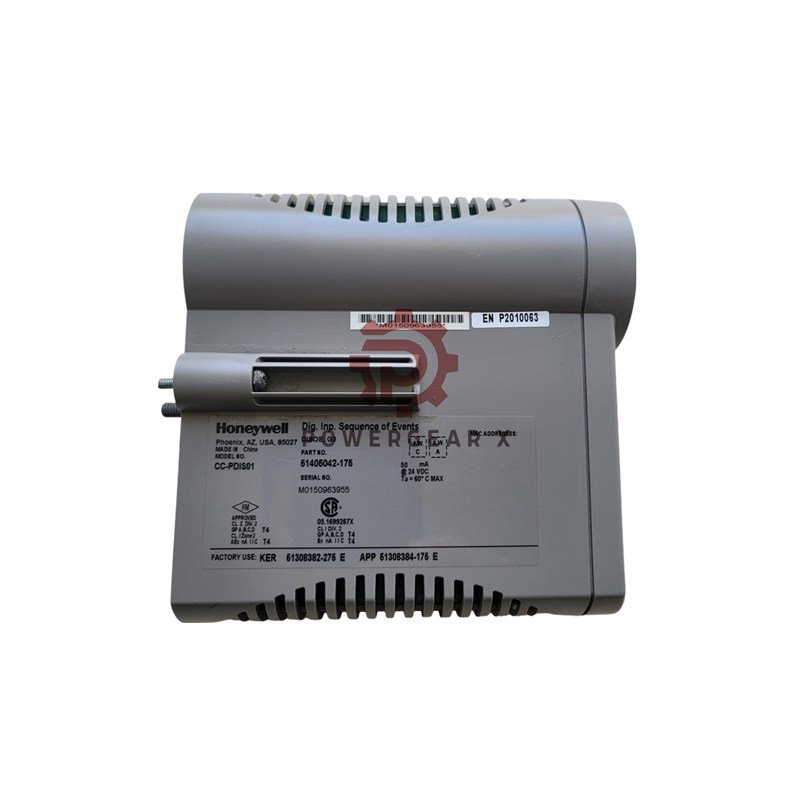

Digital Input Sequence of Events — Honeywell CC-PDIS01
The Honeywell CC-PDIS01 51405042-175 is a high-performance Digital Input Sequence of Events (DISOE) module. It captures 24VDC discrete signals with 1ms resolution, providing precise event recording and stable process monitoring.
Key Highlights
- Accepts 24VDC discrete input signals.
- Provides 1ms Sequence of Events (SOE) resolution.
- Supports Normal (20ms), Fast (5ms), and SOE modes.
- Offers optical isolation up to 1500 VAC RMS or ±1500 VDC.
- Detects open-wire faults and invalid process variables.
- Optional redundant configuration for high system availability.
- Integrated field power reduces wiring and marshalling needs.
Technical Specifications
- Brand: Honeywell
- Model: CC-PDIS01 51405042-175
- Type: Digital Input Sequence of Events Module (DISOE)
- Input Channels: 32
- Scanning Rate: Normal = 20ms; Fast = 5ms
- SOE Resolution: 1ms
- DI Power Supply: 18–30 VDC
- ON Sense: ≥13 VDC or ≥3 mA
- OFF Sense: ≤5 VDC or ≤1.2 mA
- Input Impedance: 4.2 kΩ
- Absolute Delay: 5 ms ±20%
- Galvanic Isolation: Optical, 1500 VAC RMS or ±1500 VDC
- Field Resistance (ON): 300 Ω @ 15 VDC
- Field Resistance (OFF): 30 kΩ @ 30 VDC
- Weight: 0.35 kg
- IOTA Models: CC-TDIL01, CC-TDIL11, CC-GDIL11, CC-GDIL21, CC-GDIL01, CC-SDXX01
Installation Guidelines
- Mount the module in a Honeywell-approved Series C rack.
- Connect inputs using twisted pair cables to minimize interference.
- Confirm correct polarity before applying field power (18–30VDC).
- Enable Fast or SOE mode as required by process response speed.
- Perform open-wire test during system commissioning.
Packaging & Shipping
- Includes one Honeywell CC-PDIS01 module and installation accessories.
- Packed securely for global delivery via FedEx, UPS, or DHL.
- Technical guide and quick start instructions included.
Warranty
- Warranty period: 12 months from the date of purchase.
- Warranty covers defects in materials and workmanship only.
Five Professional FAQs
- Q: How many channels does CC-PDIS01 support?
A: It supports 32 digital input channels per module. - Q: What is the isolation rating?
A: The module provides 1500 VAC RMS or ±1500 VDC optical isolation. - Q: Can I use external field power?
A: Yes, the module supports both internal and external field power. - Q: What scanning speeds are available?
A: Normal (20ms), Fast (5ms), and SOE (1ms resolution) modes. - Q: How does open-wire detection improve safety?
A: It identifies broken wires and flags them as invalid to prevent false readings.
