Honeywell CC-PDIL51 32-Channel Digital Input Module — Industrial I/O

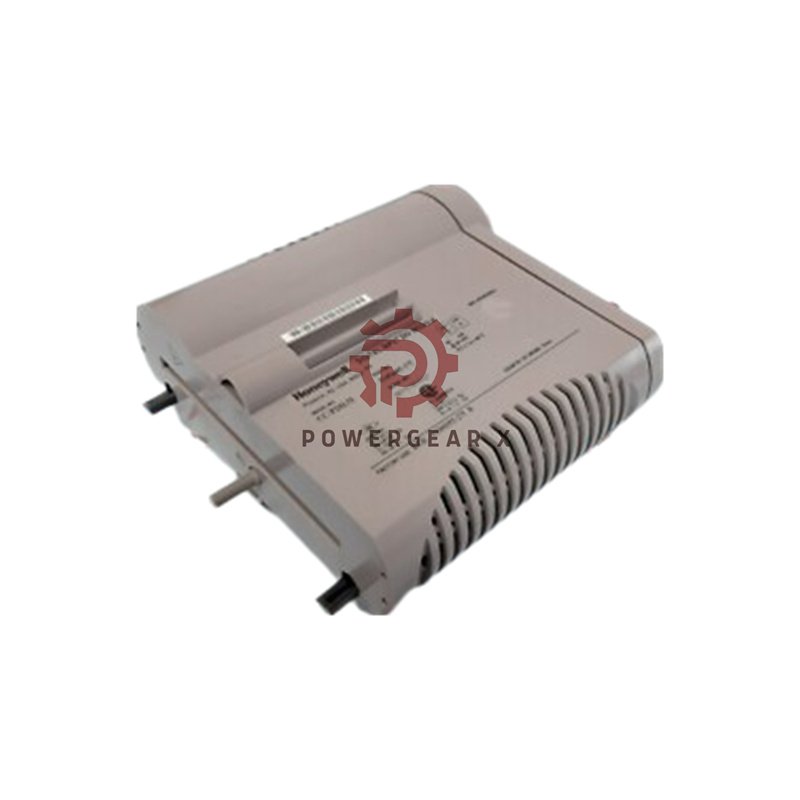

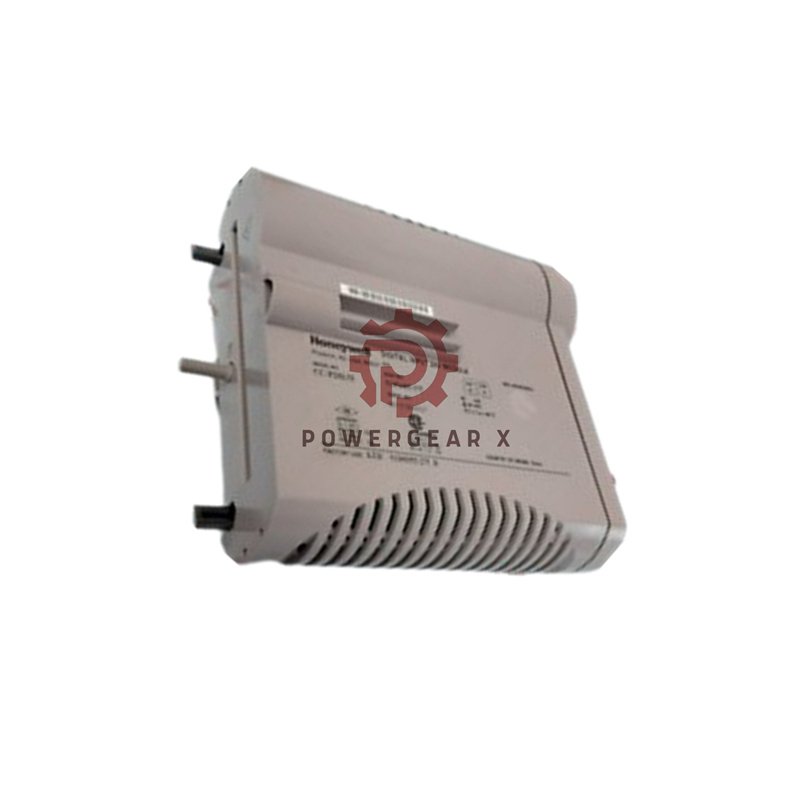

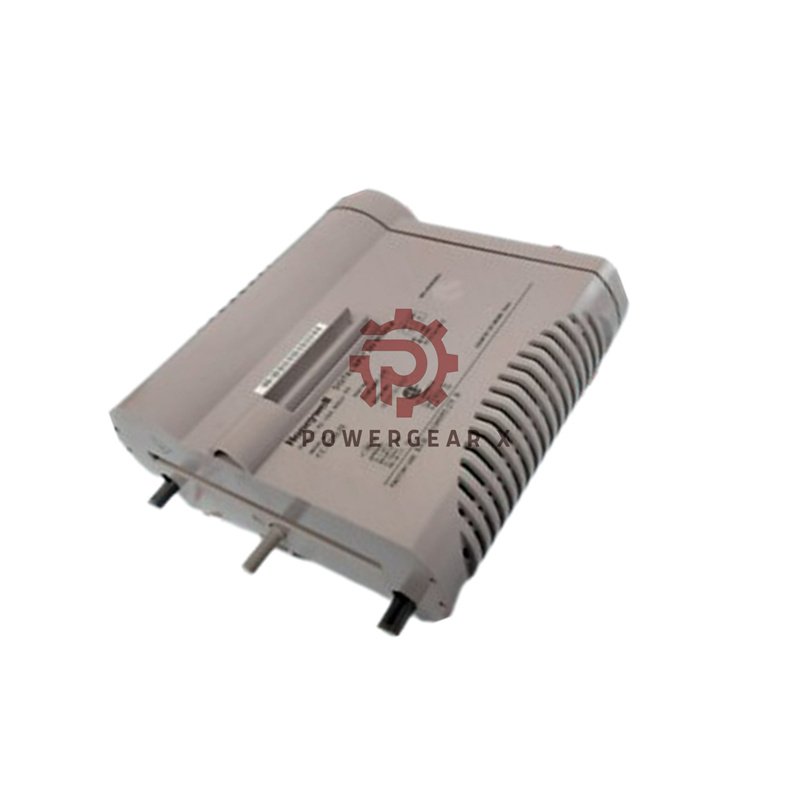

Honeywell CC-PDIL51 – 24VDC Digital Input Module

The Honeywell CC-PDIL51 captures 24VDC discrete signals with speed and precision. It supports 32 input channels, ensuring reliable operation in process control and factory automation environments.

Technical Highlights

• Brand: Honeywell
• Model: CC-PDIL51 – 24VDC Digital Input
• IOTA Models: CC-TDIL51 (Non-Redundant, 9”), CC-TDIL61 (Redundant, 12”)
• Input Voltage Range: 18 – 30VDC
• ON Threshold: 13VDC min or 3mA min
• OFF Threshold: 5VDC max or 1.2mA max
• Input Impedance: 4.2 kΩ
• Guaranteed ON: 300Ω max @15VDC
• Guaranteed OFF: 30kΩ min @30VDC
• Isolation Technique: Optical isolation (in IOM)
• Power Isolation: 1000VAC RMS between inputs and logic
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Power Consumption: 5W typical
• Weight: 0.35 kg
• Warranty: 12 months

Why Choose Honeywell CC-PDIL51

• Built for demanding process control systems and factory environments.
• Designed for strong EMI protection and long-term signal stability.
• Supports hazardous zone applications with non-incendive power output.
• Optional redundancy provides uninterrupted operation for safety systems.
• Easy installation using standard DIN-rail mounting design.

Shipping Options

• FedEx International Priority – Fast global delivery within 2–3 days.
• UPS Worldwide Express – Reliable service with tracking and customs clearance.
• DHL Global Mail – Cost-effective global shipping with real-time updates.

Professional FAQ

• Q:
  What is the signal delay between input activation and module response?
  A:
  The module responds within 5 milliseconds ±20%, ensuring quick digital updates.
• Q:
  Can the CC-PDIL51 operate in high electrical noise environments?
  A:
  Yes, it includes robust optical isolation and EMI resistance suitable for industrial use.
• Q:
  Does this unit detect open circuit conditions on input lines?
  A:
  No, it does not include open wire detection; external supervision may be required.
• Q:
  What are the available redundant options?
  A:
  Redundant configuration is available with model CC-TDIL61.
• Q:
  How long is the recommended cable length for inputs?
  A:
  The module supports up to 300 meters using shielded cable for optimal performance.
