Honeywell CC-PAOH51 Analog Output with HART – 16 Channel Module

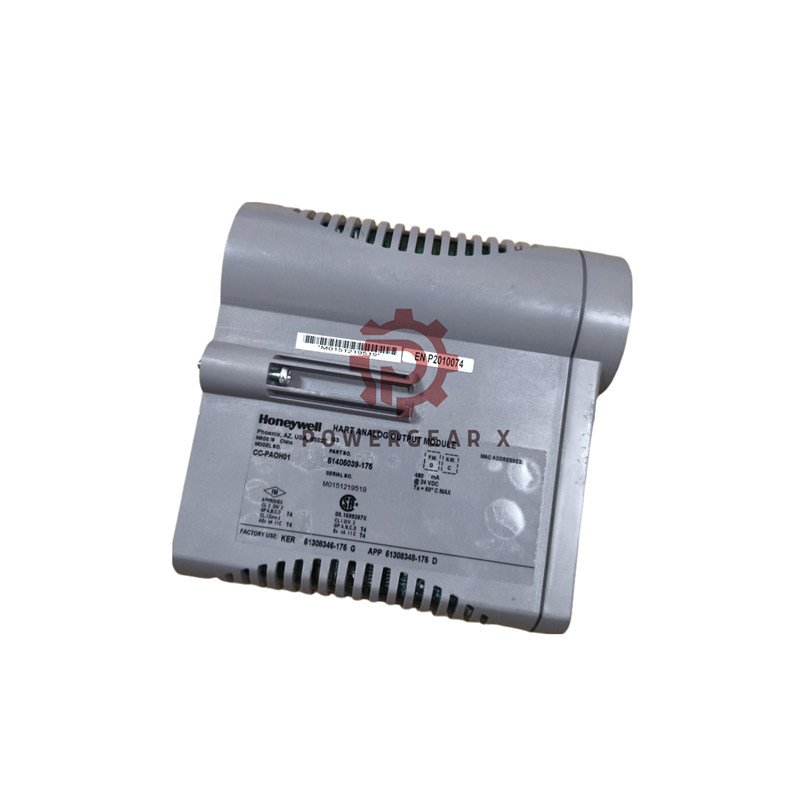

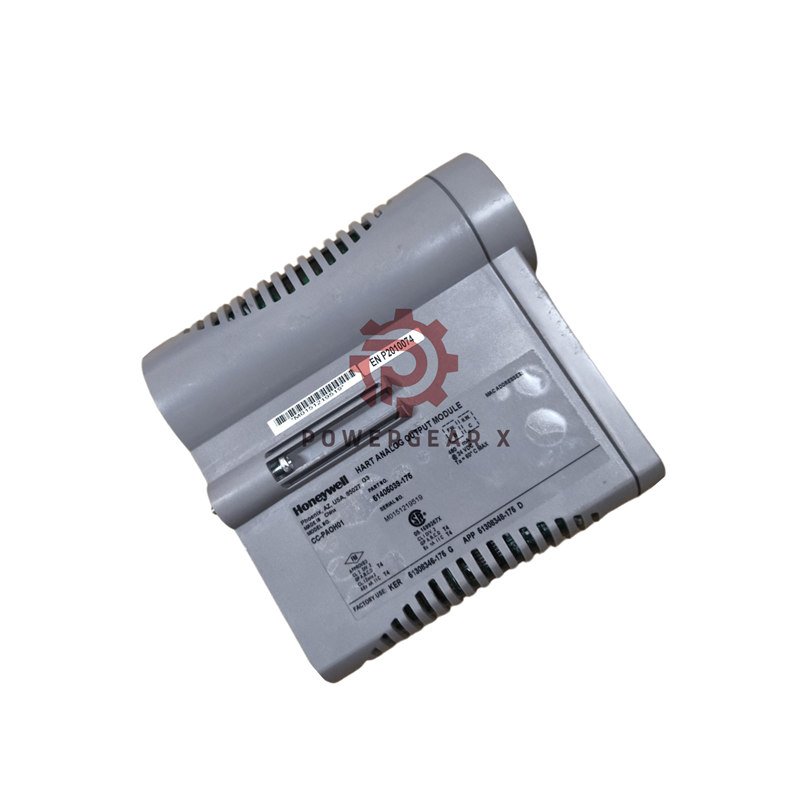

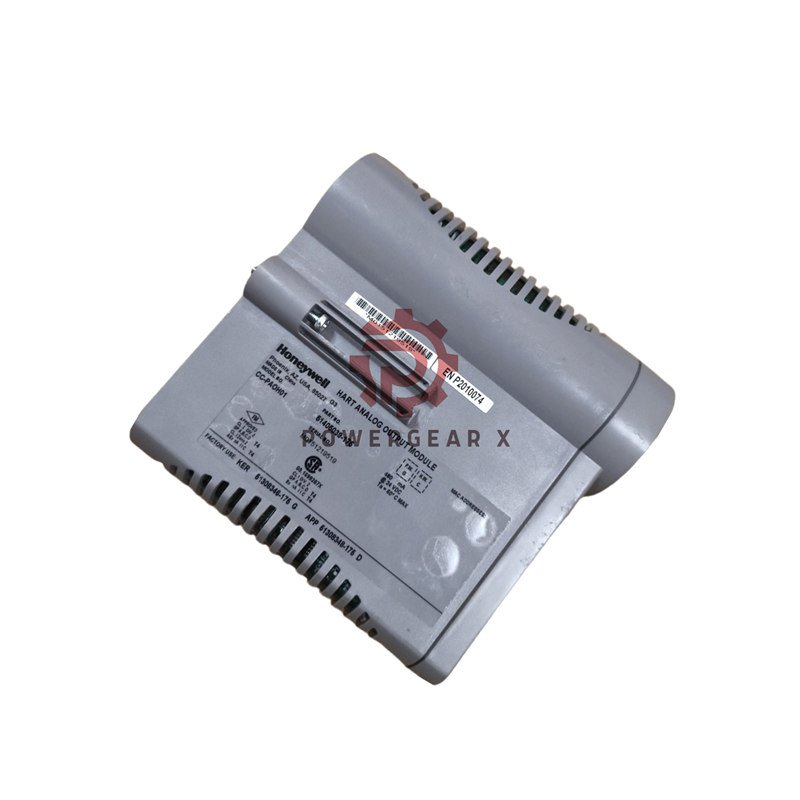

Honeywell CC-PAOH51 Analog Output with HART

The Honeywell CC-PAOH51 is a 16-channel analog output module with advanced HART communication.
It ensures fast, stable, and accurate output control for industrial automation systems.
Compact, precise, and built for demanding environments, it delivers reliability and flexibility in every process loop.

Main Highlights

• 16 analog output channels for efficient multi-point control.
• Supports 4–20 mA current output with full HART capability.
• Delivers ±0.35% full-scale accuracy at 25°C.
• Settles to final output within 80 ms for rapid system response.
• Offers per-channel FAILOPT settings for enhanced safety and flexibility.
• Integrated diagnostics and open-wire detection ensure dependable operation.

Technical Specifications

• Brand: Honeywell
• Model: CC-PAOH51
• Part Number: 51410070-275
• Output Type: 4–20 mA analog with HART communication
• Channels: 16 isolated analog outputs
• Resolution: 16-bit digital precision
• Response Time: ≤80 ms from DAC input to output
• Temperature Drift: 0.005% of Full Scale/°C
• Output Readback Accuracy: ±4% of Full Scale
• Output Linearity: ±0.05% of Full Scale nominal
• Calibrated Accuracy: ±0.35% of Full Scale at 25°C
• Direct Output Range: 0 mA, 2.9 mA to 21.1 mA
• Maximum Load: 800 Ω at 24 VDC supply
• Compliant Voltage: 16 V typical
• Open Circuit Voltage: 22 V maximum
• Output Ripple: <100 mV peak-to-peak across 250 Ω load
• Power Supply: 24 VDC (range 18–30 VDC)
• Power Consumption: 4 W max
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Weight: 0.35 kg

Installation and Setup

• Compatible with IOTA bases CC-TAOX51 (Non-Redundant) and CC-TAOX61 (Redundant).
• Mount securely in the rack and verify grounding connections.
• Confirm load resistance within rated specifications before activation.
• Use shielded wiring for noise-sensitive analog lines.
• Handle under ESD-safe conditions during installation.

Warranty and Shipping

• Includes 12-month warranty from delivery date.
• Ships via FedEx, UPS, or DHL with tracking.
• Secure industrial packaging ensures product safety during transport.

FAQ

• Question:
  What is the function of the CC-PAOH51?
  Answer:
  It delivers precise analog signals to actuators and monitoring devices, supporting HART for configuration and diagnostics.
• Question:
  Can the module operate in redundant mode?
  Answer:
  Yes, it supports redundancy with the CC-TAOX61 base assembly.
• Question:
  What is the maximum resistive load supported?
  Answer:
  The module supports up to 800 Ω at 24 VDC supply.
• Question:
  How does the module handle open-wire conditions?
  Answer:
  It automatically detects open wires and sends a soft fault alert for immediate correction.
• Question:
  Is there a fail-safe mode available?
  Answer:
  Yes, each channel can be set to HOLD LAST VALUE or go to a SAFE VALUE when needed.
