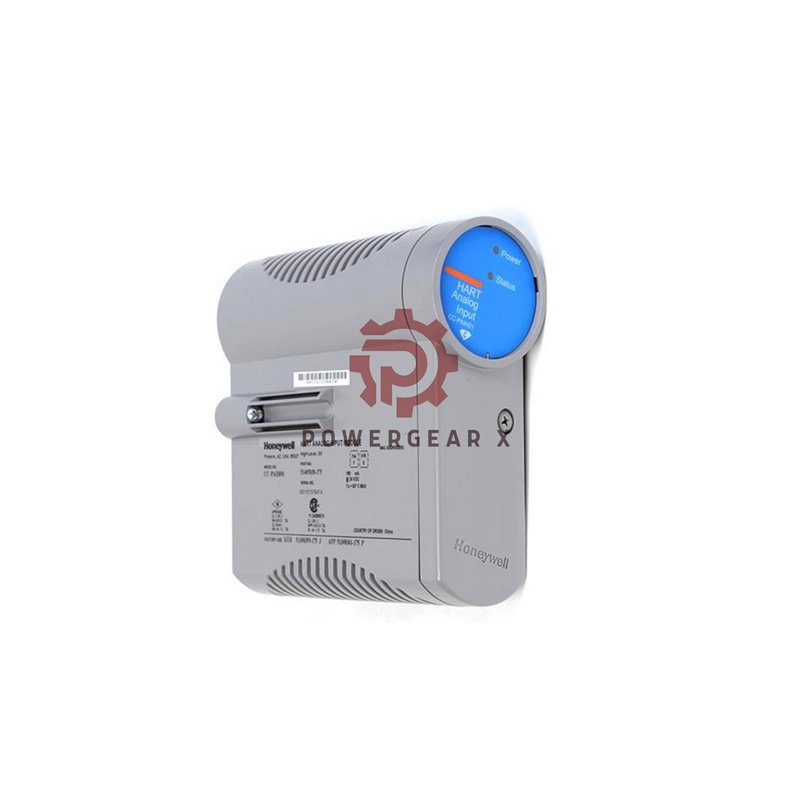

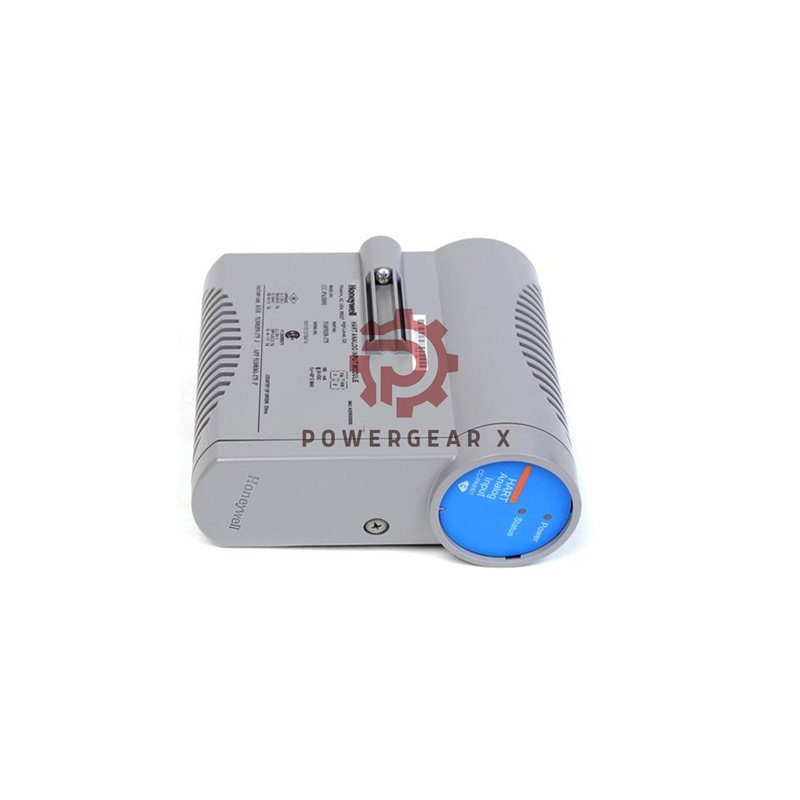

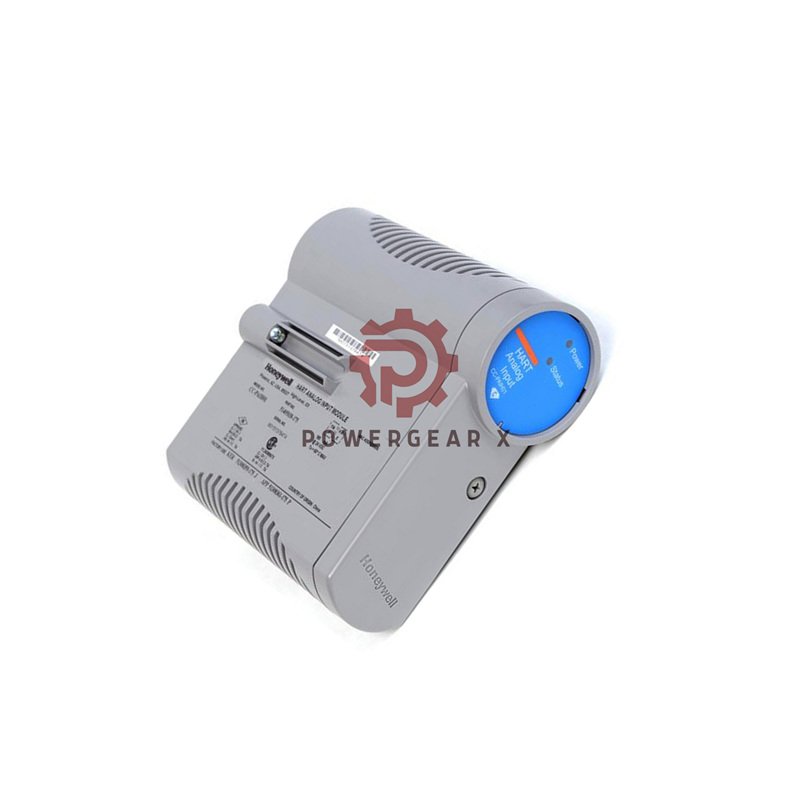

Introducing the Honeywell CC-PAIH02 HART Analog Input Module
The CC-PAIH02 from Honeywell is a high-performance analog input module. It seamlessly integrates with the Experion Series-C I/O system. This module brings smart HART communication to your industrial process control. It allows digital data transfer on top of the standard 4-20 mA analog signal. You can configure and monitor smart field devices in real-time. This capability significantly improves operational efficiency and maintenance workflows.
Detailed Technical Specifications
- Brand: Honeywell
- Model: CC-PAIH02
- Input Type: Current (2-wire or self-powered)
- Input Range: 4-20 mA (through 200 Ω)
- Resolution: 16-bit A/D converter
- Accuracy: ± 0.075% of full-scale
- Common Mode Rejection: 70 dB
- Normal Mode Rejection: 19 dB
- Power Supply: 24 VDC
- Operating Temperature: 0 to 60°C
- Dimensions: 263 mm x 138 mm x 88 mm
- Weight: 1 kg
Installation and Packaging
- Follow the Experion Series-C I/O installation manual for guidelines.
- Ensure proper grounding and use the specified 24 VDC power source.
- The module is designed for vertical mounting in a control cabinet.
Packaging List
- One Honeywell CC-PAIH02 Analog Input Module.
- Product documentation and installation guide.
- We ship via FedEx, UPS, or DHL for fast and reliable delivery.
Frequently Asked Questions
- How many devices can one module connect?
The CC-PAIH02 provides sixteen individual input channels.
- Does it work with existing 4-20 mA transmitters?
Yes, it fully supports standard 4-20 mA signals and adds HART data.
- Can I use this module in hazardous locations?
Its non-incendive field power design makes it suitable for such areas.
- Is module redundancy an option?
Yes, you can configure the module in a redundant pair for critical applications.
