Product details

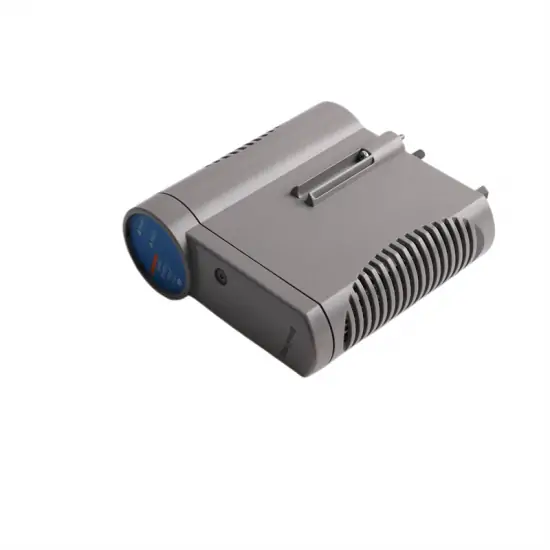

Analog Input with HART – CC-PAIH01 51405038-175
Industrial-Grade Signal Processing
This HART-compatible analog input module safely connects transmitters and sensors in demanding environments. Features open-wire detection and non-incendive power for hazardous areas.
Key Specifications
| Brand/Model | CC-PAIH01 |
| Input Types | Voltage/Current (2-wire or self-powered) |
| Resolution | 16-bit A/D converter |
| Scan Speed | 50 ms per channel |
| Accuracy | ±0.075% FS (23°C) |
| Temp Range | 0°C to 60°C |
| Hazard Rating | Class 1 Div 2 |
Easy Installation
DIN-rail mountable. No fusing required. Works with voltage ranges: 0-5V, 1-5V, 0.4-2V and current: 4-20mA.
Compatibility
Connects to:
- HART-enabled transmitters
- 2-wire field devices
- Redundant systems (CC-TAIX11 models)
Certifications
ATEX/IECEx for hazardous locations. CE marked.
Package Contents
- CC-PAIH01 module
- Installation guide
- 12-month warranty
Global Shipping
Fast delivery via FedEx, UPS or DHL with tracking.
Oil Refinery Application
Monitored 124 pressure transmitters in Class 1 Div 2 zones. Reduced wiring faults by 85% using open-wire detection.
FAQ
Q: How many input channels?
A: 1 channel (CC-PAIH02) or 16 channels (redundant models)
Q: Supports 4-20mA signals?
A: Yes – through 250Ω resistor
Q: Redundancy options?
A: Available in CC-TAIX11/CC-GAIX11 models
