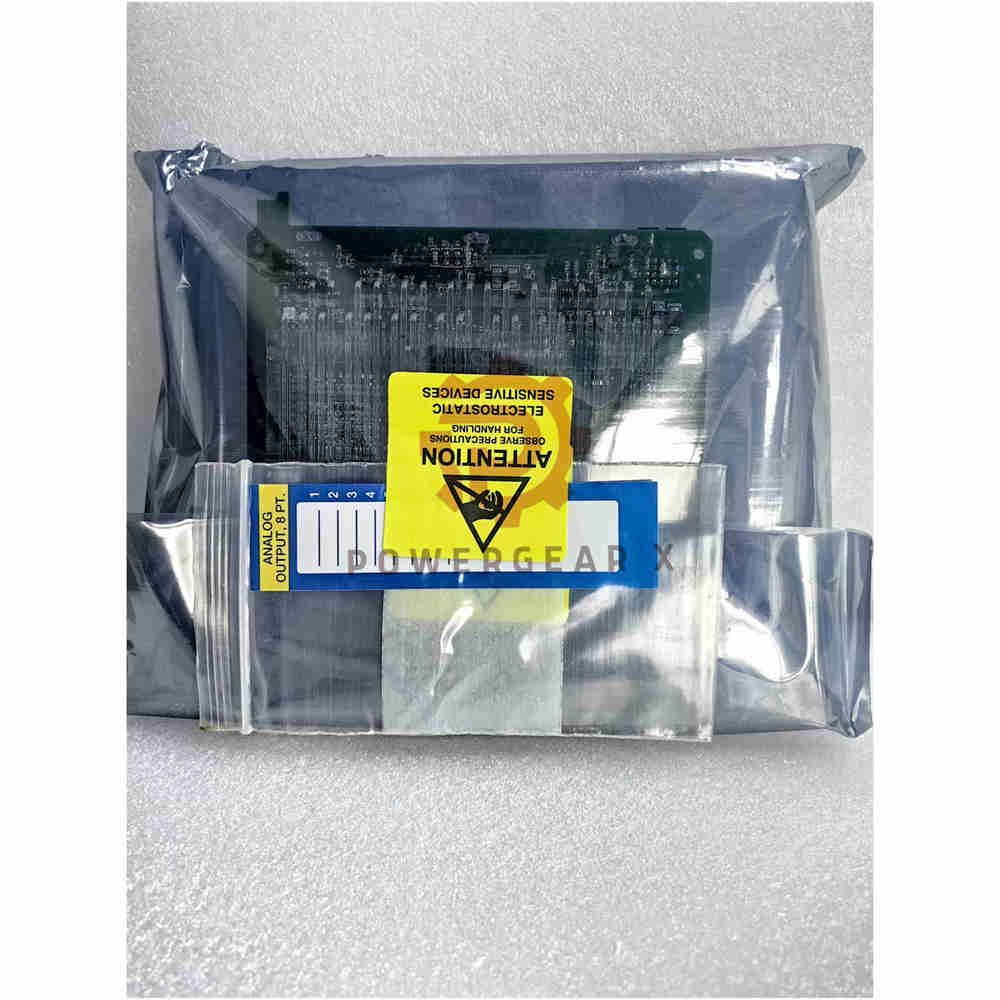

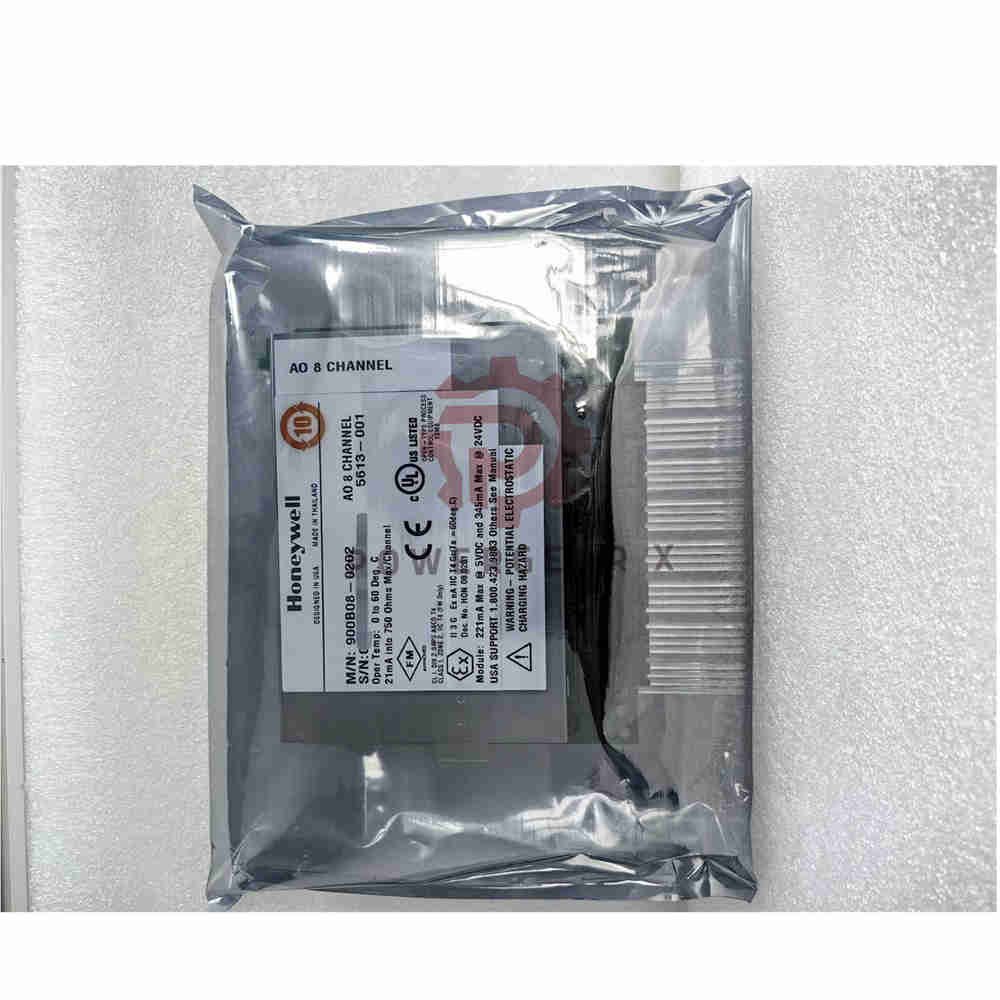

Honeywell 900B08-0202 Analog Output Module 8 Channel

Reliable Signal Control – Honeywell 900B08-0202 Analog Output Module

• Honeywell 900B08-0202 delivers stable analog current outputs.
• Provides 8 channels for precise control tasks.
• Flexible scaling improves process accuracy.
• Designed for industrial automation systems.
• Supports safe and predictable operation.

Core Features

• 8 independent output channels
• Output range: 0 to 21 mA
• Grouped isolation for safety
• High accuracy at 0.1% full scale
• Supports failsafe configuration
• Status LEDs for quick diagnostics

Technical Specifications

• Brand: Honeywell
• Model: 900B08-0202
• Type: Analog Output Module
• Channels: 8 outputs
• Output Range: 0–21 mA
• Resolution: 13+ bits
• Accuracy: 0.1% full scale
• Load Resistance: max 750 Ohms
• Minimum Detection: >0.5 mA
• Isolation: 500VDC group to group
• Logic Isolation: 500VDC
• Modules per Rack: up to 10 external power
• Diagnostics: power and calibration monitoring

Output Behavior

• Synchronous update with control cycle
• Slew rate control prevents sudden change
• Stable signal with low variation
• Supports hold and safe value modes

Configuration Breakdown

• 900B08-0202
•   ├─ 900B08
  • Analog output series
  • 8-channel design
•   └─ 0202
  • 0–21 mA output type
  • Standard industrial version

Installation Notes

• Install on control rack
• Use correct terminal block
• Check power supply stability
• Ensure proper grounding

Applications

• Process control systems
• Valve and actuator control
• Industrial automation lines
• Signal output management
• Energy system control

Packing & Warranty

• 1 × 900B08-0202
• Secure packaging
• 12-month warranty support

Shipping

• FedEx fast delivery
• UPS global shipping
• DHL express service

FAQ

• How to set output range for each channel?
• Use system software to scale each channel as needed.
• What happens if communication fails?
• The module keeps last value or switches to safe value.
• How to avoid output signal fluctuation?
• Use slew rate control and stable power supply.
• What should be checked before installation?
• Verify wiring, load resistance, and voltage range.
• Is this module suitable for precise control?
• Yes. High resolution ensures fine output control.
