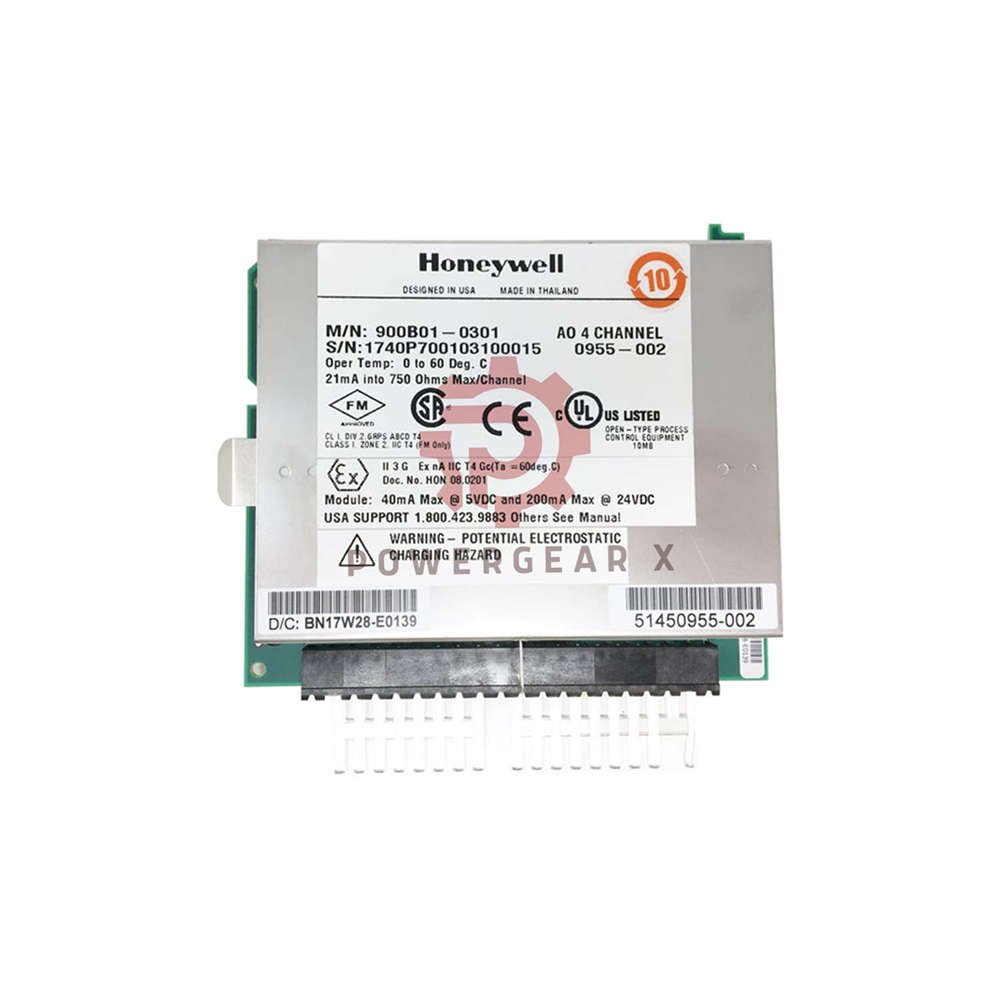

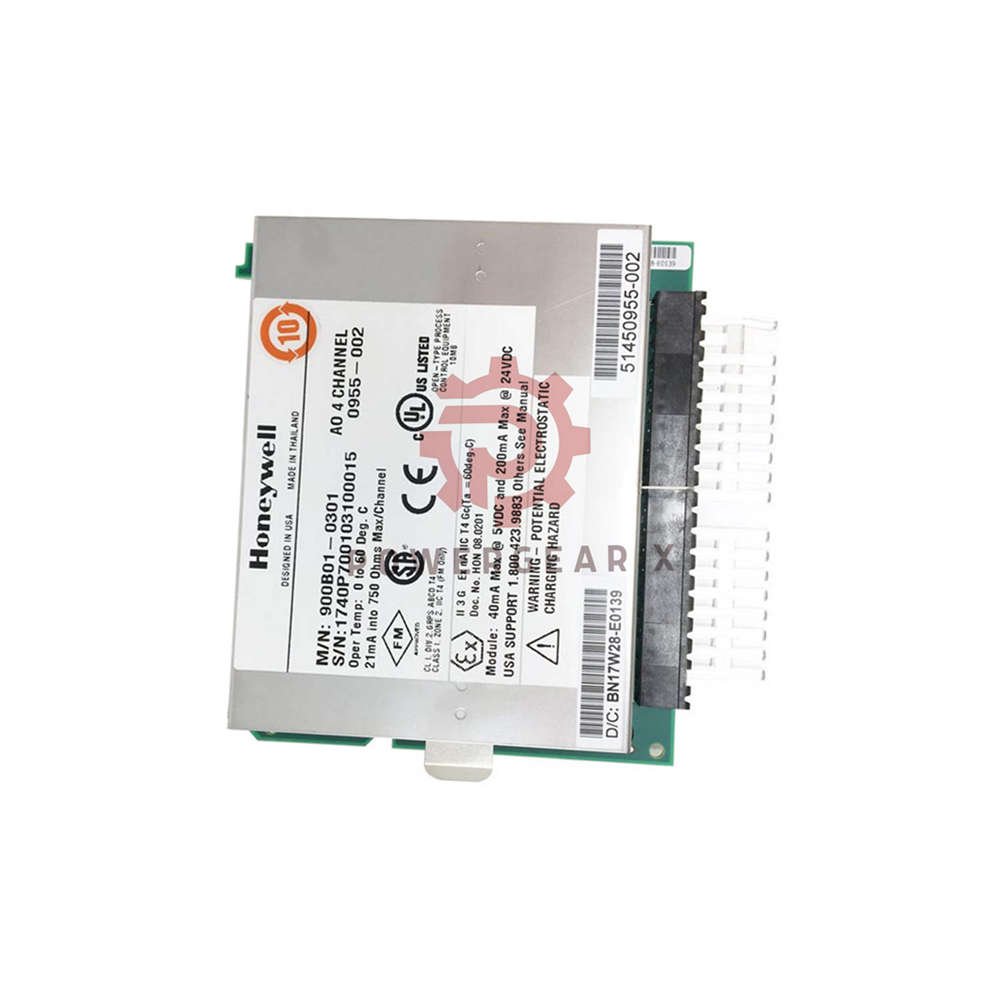

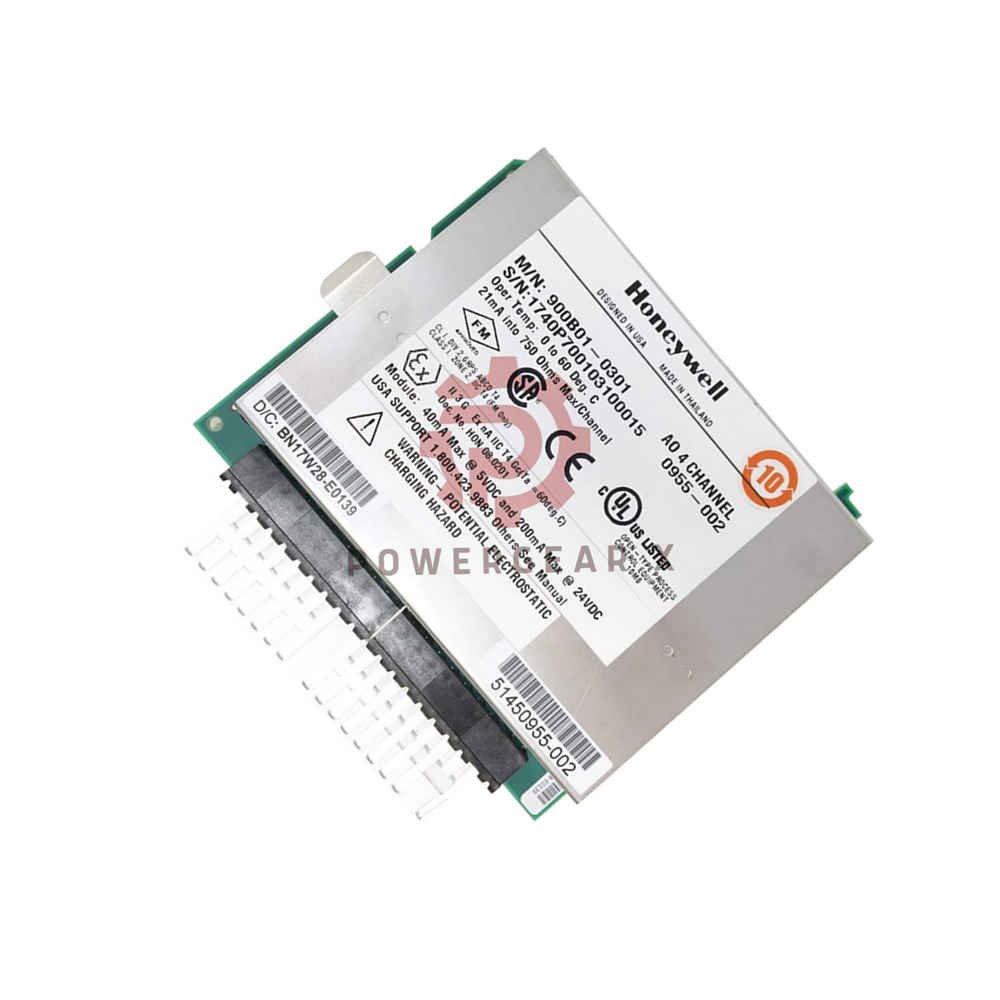

Honeywell 900B01-0301 Analog Output Module | 900 Series AO Module

Product Overview – Honeywell 900B01-0301 Analog Output Module

• Honeywell 900B01-0301 is a 4-channel analog output module for precise current control.
• Each channel delivers isolated current output signals.
• Outputs scale freely within the 0–21.8 mA operating range.
• Designed for stable process control and automation systems.
• Status LEDs allow fast visual diagnostics.
• Failsafe operation ensures predictable plant behavior.

Core Functional Highlights

• Four fully isolated analog outputs.
• User adjustable output span per channel.
• 0.1% full-scale accuracy improves control precision.
• Synchronous update with controller scan cycle.
• Integrated diagnostics monitoring.
• Non-volatile calibration memory prevents data loss.

Technical Specifications

• Brand: Honeywell
• Model: 900B01-0301
• Series: Honeywell 900 Series
• Module Type: Analog Output Module (AO)
• Outputs per Module: 4 isolated channels
• Output Range: 0 to 21.8 mA selectable
• Typical Control Range: 0–20 mA or 4–20 mA
• Load Resistance: Maximum 750 Ω
• Channel Isolation: 500 VDC channel-to-channel
• Logic Isolation: 600 VDC from system logic
• Accuracy: 0.1% full scale
• D/A Resolution: 12-bit
• Minimum Current Detection: >3.5 mA
• Output Update Time: Minimum 500 ms
• Modules per Rack: Up to 10 (12 with temperature derating)
• Calibration Storage: Non-volatile memory
• Output Feedback: Current verification to controller
• Diagnostics: Calibration, configuration, and power monitoring

Configuration Breakdown (Tree Structure)

• 900B01
  • Honeywell 900 Series I/O platform
• -03
  • Analog output functional group
• 01
  • 4-channel isolated current output configuration

Output Control & Slew Rate Logic

• Slew rate limits output change speed.
• Prevents sudden signal jumps.
• Improves actuator and valve lifetime.
• User defines scan rate using function block.
• Smooth transition from OFF to ON output levels.

Status Indicators

• Green blinking LED shows active module scanning.
• Red LED indicates diagnostics or channel fault.
• Quick visual inspection reduces downtime.

Fail Safe Operation

• User selectable safe output value.
• Hold last value option supported.
• Maintains stable operation during communication loss.

Installation Notes

• Install inside a standard control rack.
• Verify load resistance before wiring.
• Use shielded cables for best performance.
• Confirm grounding to reduce noise.

Typical Applications

• Control valve positioning
• Variable speed drive control
• Process loop output control
• Industrial automation systems
• Energy and utility monitoring

Warranty & Shipping Information

• 12-month warranty after shipment date.
• Worldwide delivery supported.
• Courier options: FedEx, UPS, DHL.
• Professional export packaging included.

Professional FAQ & Buying Guide

• How do I select the correct output range?
• Choose based on actuator or device input requirement.
• What happens if communication stops?
• The module applies the configured failsafe or holds last value.
• Why is output verification important?
• It confirms actual current flow to improve control reliability.
• How many modules can one rack support?
• Up to ten modules normally. Twelve with temperature derating.
• What should I consider before purchasing?
• Check load resistance, channel count, and control system compatibility.
