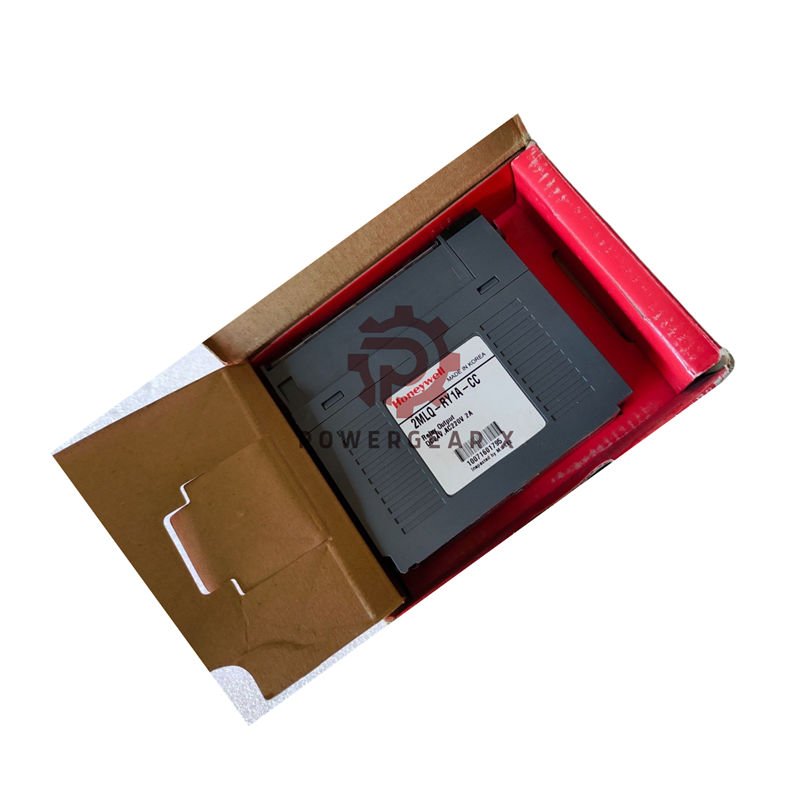

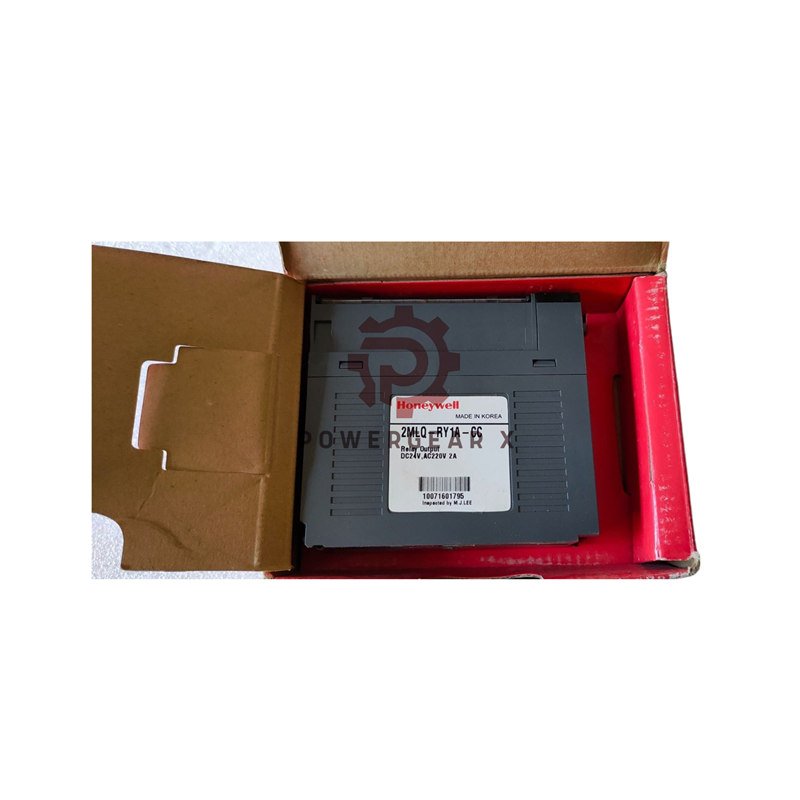

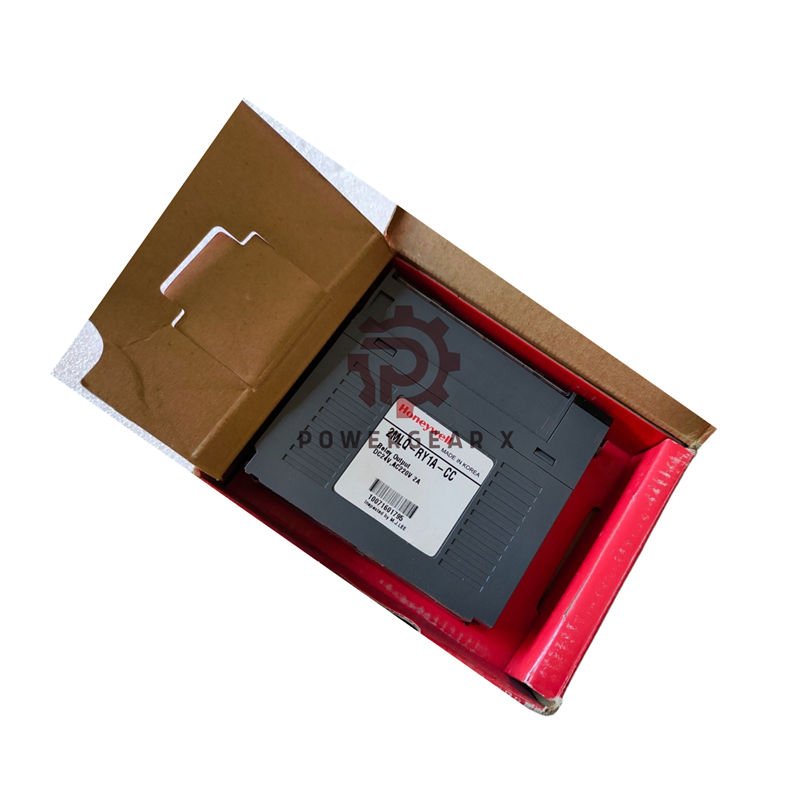

Honeywell 2MLQ-RY1A Relay Output Module | MASTERLOGIC 200 Series

Honeywell 2MLQ-RY1A Relay Output Module | MASTERLOGIC 200 Series

The Honeywell 2MLQ-RY1A delivers reliable relay-based digital outputs for automation control. It fits easily into MASTERLOGIC 200 systems and ensures safe, accurate switching.

Highlights

• 8 relay outputs for precise control of external devices.
• Handles DC24V 2A or AC220V 2A resistive loads with stable operation.
• Compact, lightweight design at only 0.13 kg.
• Clear LED indicators show active output points instantly.
• Perfect for switching solenoids, lamps, and actuators in control panels.

Technical Specifications

• Manufacturer: Honeywell
• Model: 2MLQ-RY1A
• Type: Digital Output Module (Relay)
• Output Points: 8
• Isolation: Relay Isolation
• Rated Load: DC24V 2A / AC220V 2A (COSφ = 1)
• Minimum Load: DC5V / 1mA
• Maximum Load: AC250V or DC125V
• Leakage Current (OFF): 0.1mA (AC220V, 60Hz)
• On/Off Frequency: Up to 3600 times per hour
• Current Consumption: 260mA when all outputs are ON
• Response Time: 10 ms ON / 12 ms OFF
• Insulation Resistance: 20MΩ or higher (at 500V DC)
• Dielectric Strength: 1500V AC for 1 minute
• Humidity: Up to 90% non-condensing
• Temperature Range: 0°C to 55°C
• Weight: 0.13 kg

Installation & Operation

• Plug the 2MLQ-RY1A directly into the MASTERLOGIC 200 base unit.
• Ensure relay outputs connect securely to external devices.
• Keep wiring short to minimize noise and signal loss.
• Use within rated voltage and current limits for safe operation.

Warranty & Shipping

• Comes with a 12-month warranty covering manufacturing defects.
• Shipped worldwide via FedEx, UPS, or DHL.
• All units are tested before delivery to guarantee performance.

FAQ

• Q: Can this module switch both DC and AC loads safely?
• A: Yes, it supports DC24V 2A and AC220V 2A resistive loads.
• Q: What is the maximum switching speed of the relay?
• A: The relay can operate up to 3600 on/off cycles per hour.
• Q: Does the 2MLQ-RY1A have surge protection?
• A: No internal surge absorber; use external protection if required.
• Q: How can I identify which output is active?
• A: Each output channel includes a bright LED indicator when active.
• Q: Where can I request a datasheet or order this product?
• A: Contact sales@powergearx.com or WhatsApp +86 18030005825 for inquiries.
