Product details

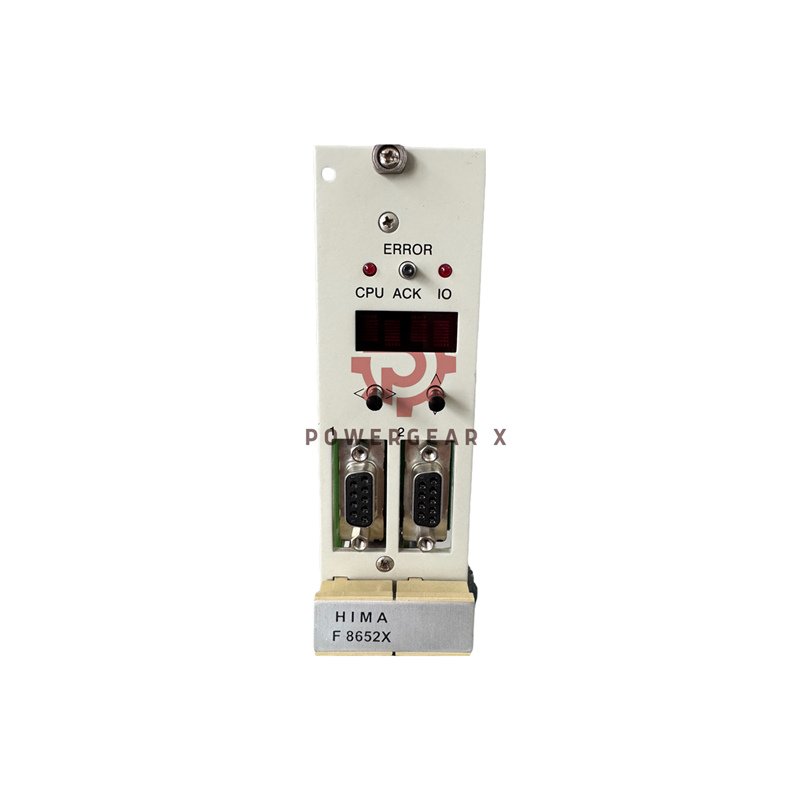

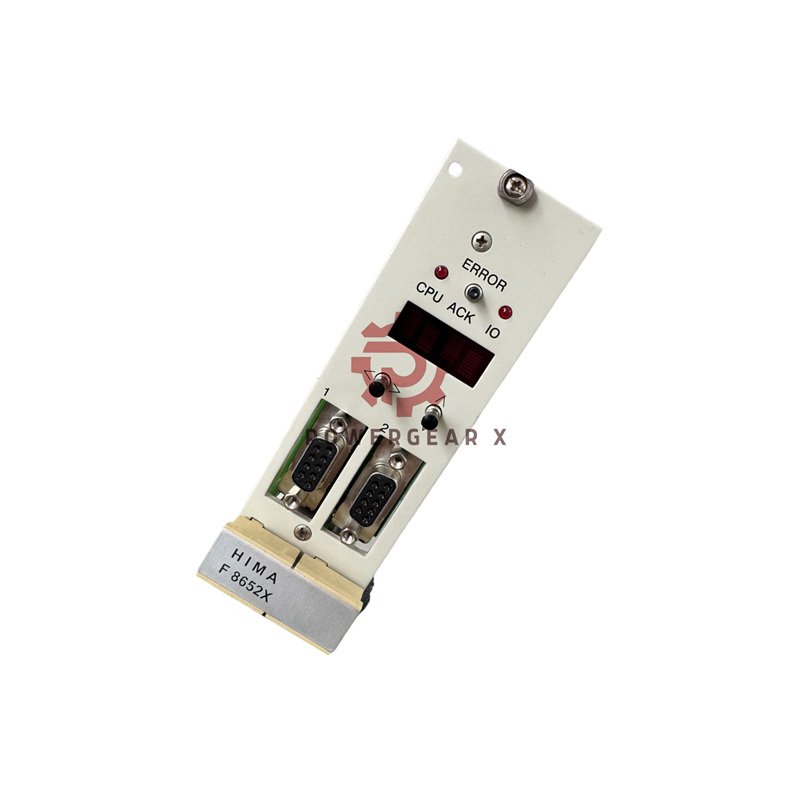

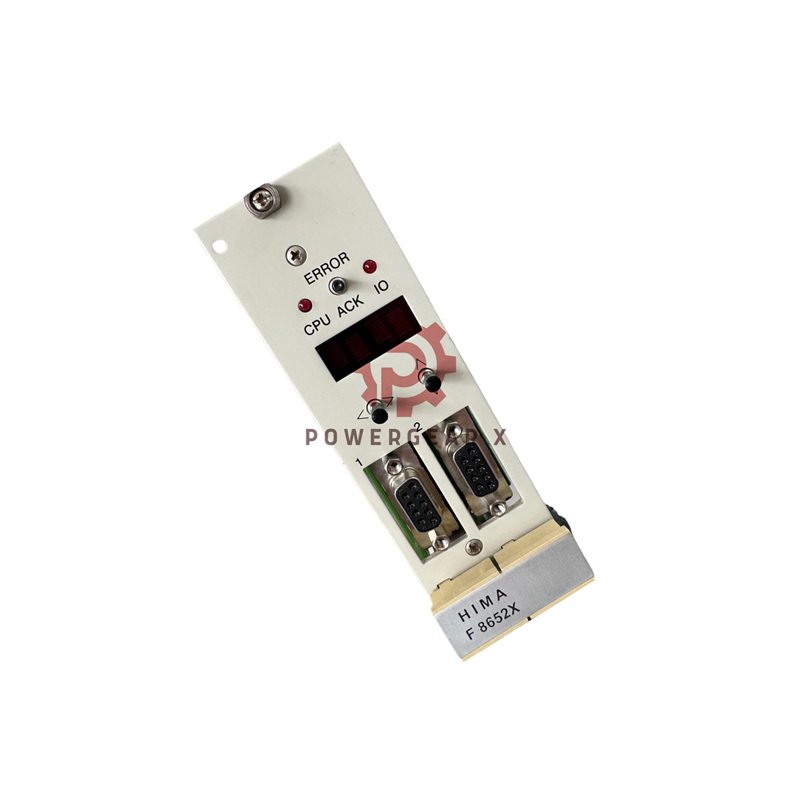

Product Overview
- Brand: HIMA
- Model: F8652X
- Part Number: F8652X
- Order Code: 984865265
- Category: Safety-related CPU
Core Features
- Two INTEL 386EX 32-bit processors for redundant safety performance.
- Clock frequency: 25 MHz ensures fast and stable system control.
- Memory per CPU includes 1 MB OS Flash, 512 KB program Flash, 256 KB SRAM.
- Integrated RS-485 communication ports for data exchange.
- Fail-safe watchdog output: 24V DC, up to 500 mA, short-circuit proof.
- Supports diagnostics through a 4-digit alphanumeric display and dual LEDs.
- Push-button control for acknowledgment and mode switching.
Technical Specifications
- Power Supply: 5 V DC, 2000 mA typical.
- Dimensions: 8 TE width; standard European rack format.
- Diagnostic Display: 4-digit matrix, LEDs for CPU and I/O errors.
- Buffer Battery Life: up to 2500 days at 25°C; 100 days at 60°C.
- Recommended Battery: CR2477N (HIMA part no. 44 0000018).
- Operating Temperature Range: -25°C to +70°C.
- Storage Temperature: -40°C to +85°C.
- Humidity: up to 95% non-condensing.
- System Compatibility: H41q / H51q safety systems.
- Compliance: IEC 61131-2, EN 61000-6, EN 50081-2, EN 50082-2.
Operational Advantages
- Dual-processor design enhances fault tolerance and uptime.
- Compact 8TE form factor saves panel space and simplifies integration.
- Modular design ensures easy maintenance and replacement.
- Direct error feedback helps quick troubleshooting.
- Energy-efficient system with low 5V power draw.
Installation Tips
- Verify bus station number and transmission rate on switch S1 before startup.
- Replace the buffer battery every 4 years for reliable performance.
- Mount on a European standard rack with correct grounding.
- Ensure RS-485 cable shielding and proper termination.
Package & Warranty
- Includes: 1 × F8652X module, manual, and installation accessories.
- Shipping via FedEx, UPS, or DHL worldwide.
- Warranty: 12 months from delivery date under normal use.
Additional Highlights
- Fast error recovery using ACK function similar to system restart.
- Strong EMC protection for industrial environments.
- Long-term stability in continuous 24/7 operation.
- Supports direct connection to ELOP II tools for configuration.
FAQ
- Question: How many processors does the F8652X include?
Answer: It uses two Intel 386EX processors for safe dual-channel operation. - Question: What is the clock speed of the F8652X?
Answer: Each CPU runs at 25 MHz for fast data processing. - Question: How often should I replace the buffer battery?
Answer: Replace every 4 years or sooner under high temperatures. - Question: Which communication interfaces are supported?
Answer: It includes two RS-485 serial interfaces for data transmission. - Question: What systems is this CPU compatible with?
Answer: It fits H41q and H51q system racks perfectly.
