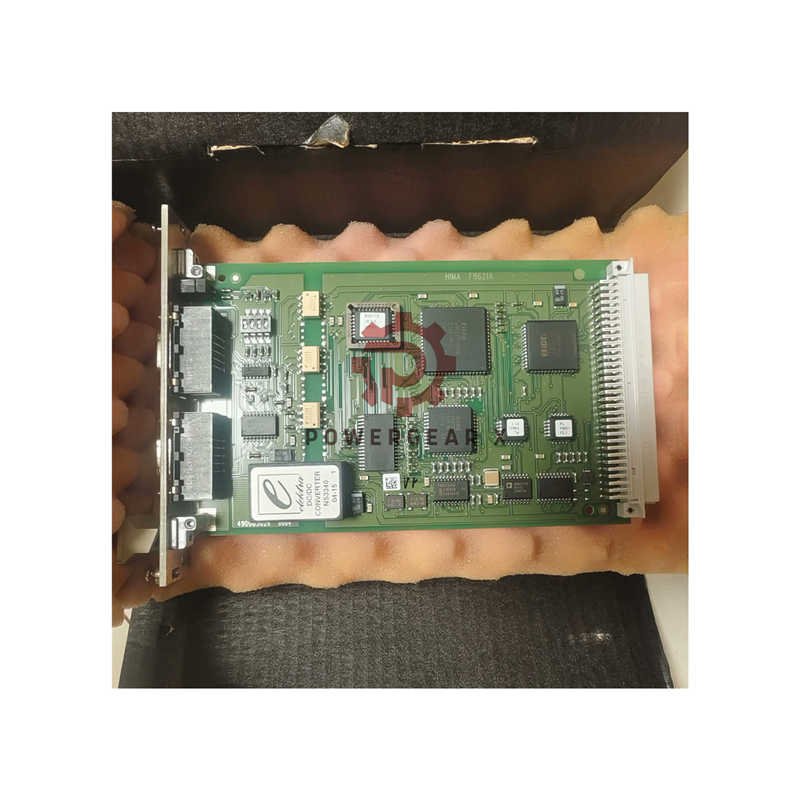

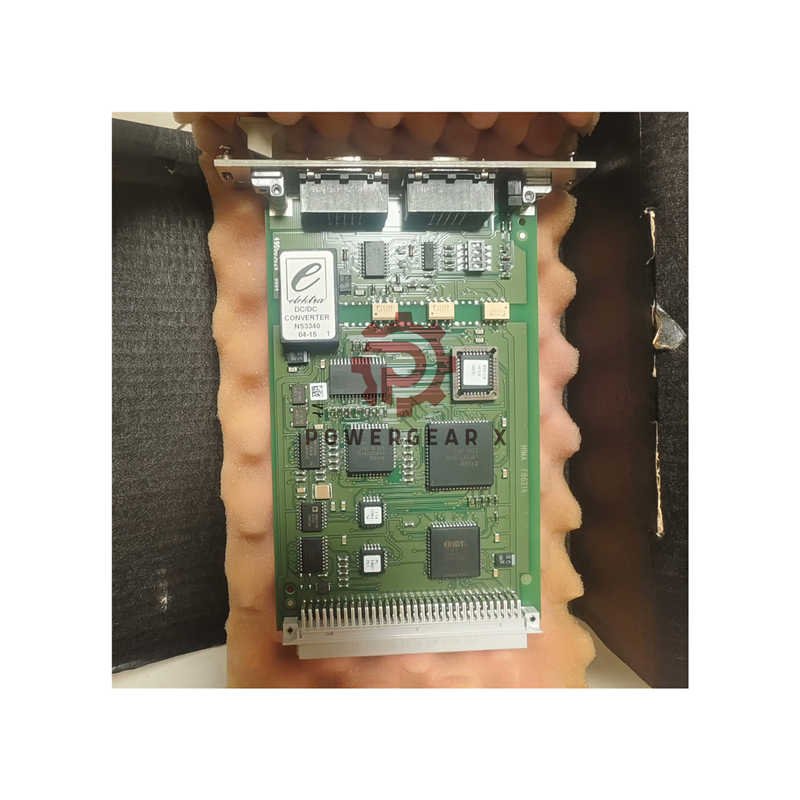

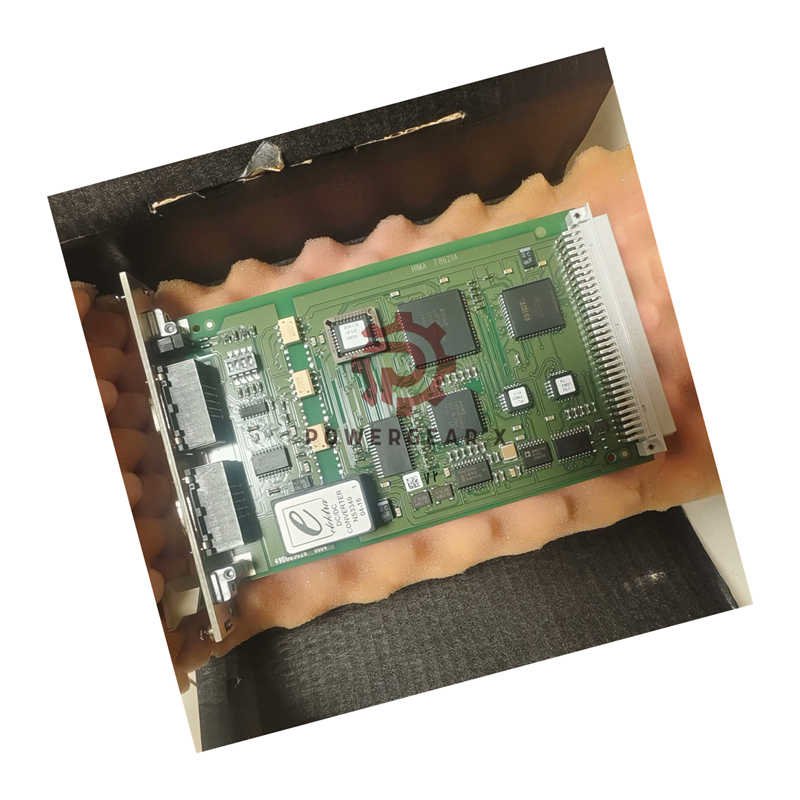

HIMA F8621A Coprocessor Module Overview
- The F8621A coprocessor module is built for high-speed data processing in PES H51q systems.
- It uses an HD64180 microprocessor running at 10 MHz for stable and efficient operation.
- The design focuses on fast communication and dependable memory management.
Core Highlights
- Microprocessor: HD64180, 10 MHz clock speed for responsive control.
- Memory: 384 KB static memory combining CMOS-RAM and EPROM across two ICs.
- RAM backup: Battery-buffered through the F7131 monitoring module.
- Interfaces: Two RS-485 (half-duplex) ports with full galvanic isolation.
- Data Rates: Adjustable via software from 300 to 57600 bps for flexible communication setups.
- Dual Port RAM: Enables direct and fast access to the central module via Bus 1.
- Power Requirement: 5 V DC, 360 mA nominal operating current.
- Space Requirement: Compact 4 TE design, easy to integrate into control cabinets.
Technical Parameters
- Brand: Powergear X
- Model: F8621A
- Processor: HD64180, 8-bit CISC architecture optimized for control systems.
- Operating Frequency: 10 MHz
- Memory Capacity: 384 KB (RAM/EPROM mix)
- Communication: Dual RS-485 ports, configurable baud rates via software or DIP switch.
- Galvanic Isolation: Full protection for industrial noise immunity.
- Bus System: Dual Port RAM interface for rapid exchange with the main CPU.
- Connector Type: Standard 9-pin D-sub with defined pinout for A/B signal and ground.
- Power Supply: 5 V DC ±5%, current consumption 360 mA max.
- Environmental Range: 0–55°C operating temperature, 10–90% relative humidity.
- Installation: Modular mount with plug-in connection for quick service access.
