HIMA F7131 Power Supply Monitoring Module — Reliable Buffer Battery Protection

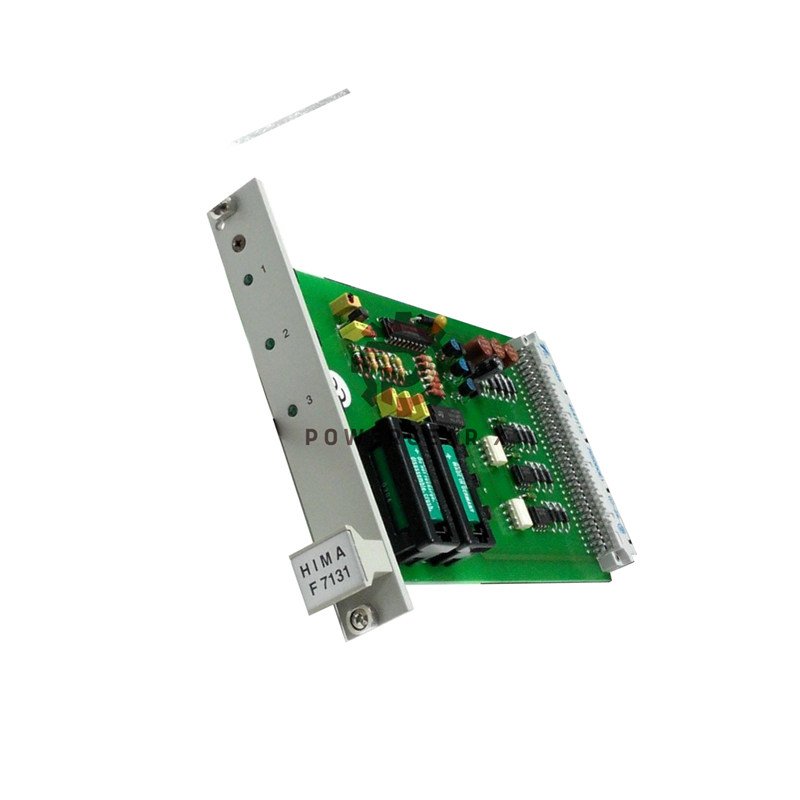

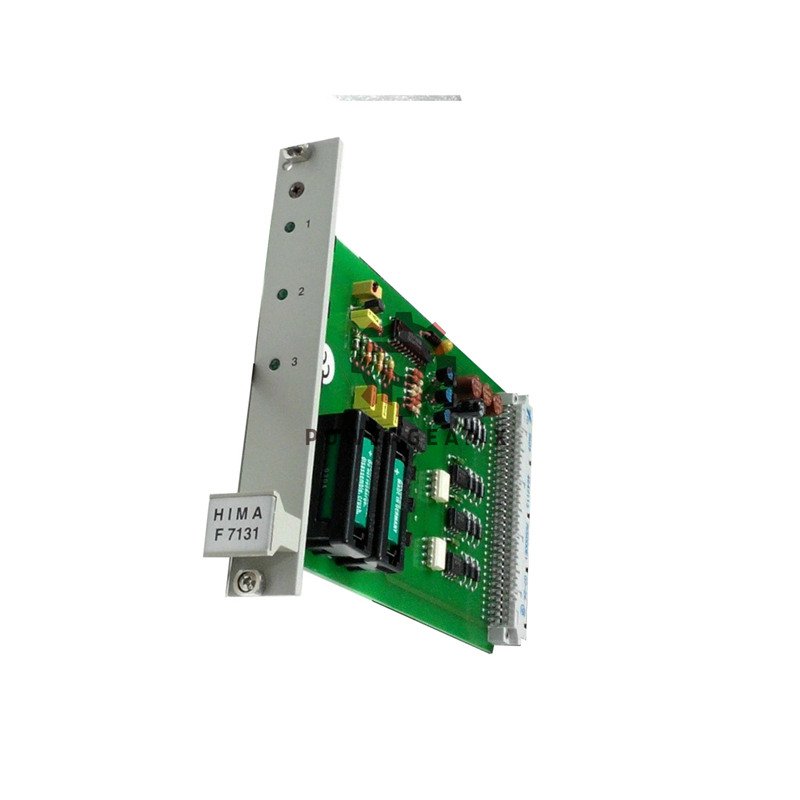

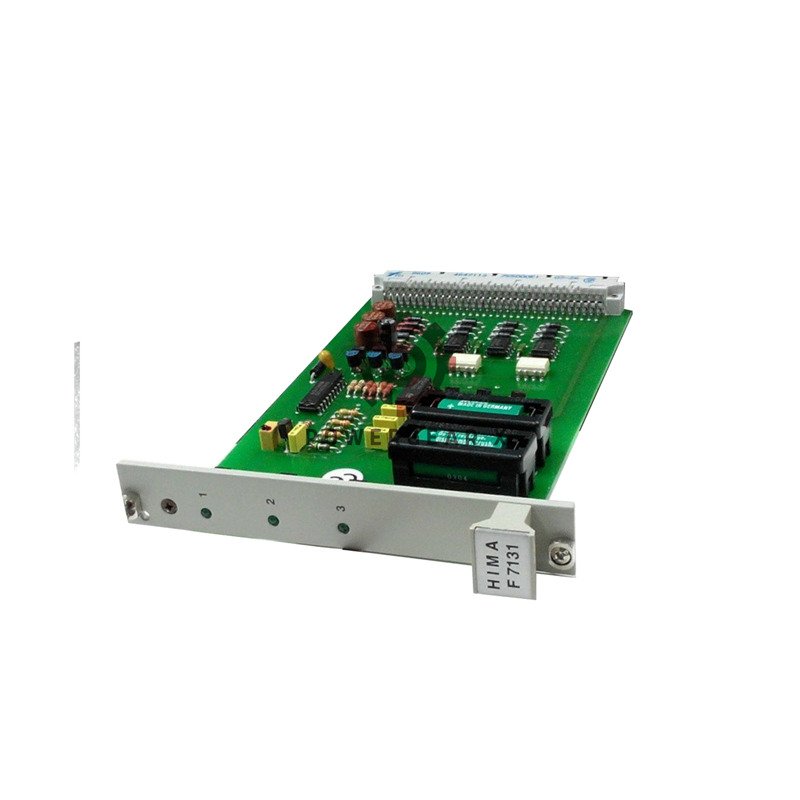

HIMA F7131 Power Supply Monitoring Module

The F7131 module ensures safe and continuous voltage monitoring for PES H51q systems. It detects voltage conditions and provides clear diagnostic signals to protect control operations.

• Manufacturer: HIMA
• Model: F7131
• Type: Power supply monitoring with buffer batteries
• System Compatibility: PES H51q

Main Advantages

• Monitors up to three 5 V system power supplies with precision.
• Features three clear front-panel LED indicators for instant visual status.
• Includes three diagnostic test bits for F8650 or F8651 CPUs.
• Supports external monitoring of additional power supplies (kit B9361) via 3 x 24 V outputs.
• Improves fault detection and helps maintain system uptime.
• Recommended battery type: CR-1/2 AA-CB (HIMA part no. 44 0000016).
• Battery replacement cycle: every 4 years for optimal reliability.

Technical Data

• Operating voltage: 5 V DC ±10%
• Operating current: 25 mA (5 V), 20 mA (24 V)
• External output voltage: 3 × 24 V DC for PS1–PS3 monitoring
• Space requirement: 4TE slot width (Eurocard format)
• LED indicators: 3 for PS1, PS2, PS3
• Operating temperature: 0°C to +60°C
• Storage temperature: −25°C to +70°C
• Humidity: up to 95% non-condensing
• Installation: 19-inch rack mounting
• Weight: approx. 0.3 kg
• Warranty: 12 months standard factory warranty

Key Selling Points

• Stable and secure monitoring of vital 5 V system voltage.
• Direct diagnostic feedback to system CPUs for quick response.
• LED-based visual feedback reduces troubleshooting time.
• Battery backup maintains monitoring during power failure.
• Compact 4TE size fits easily into PES H51q modules.
• High-quality build by HIMA ensures long service life.

Shipping & Service

• Fast worldwide delivery through FedEx, UPS, and DHL.
• All items tested and packaged in anti-static protection before shipment.
• 12-month warranty covers manufacturing defects.
• Email inquiries: sales@powergearx.com
• Contact via WhatsApp: +86 18030005825

FAQ

• Q: What system is the F7131 designed for?A: The F7131 is designed for PES H51q control systems.
• Q: How many power supplies can it monitor?A: It monitors up to three 5 V DC power supplies at the same time.
• Q: How often should the backup batteries be replaced?A: Replace the CR-1/2 AA-CB batteries every four years.
• Q: Does it provide diagnostic output to CPUs?A: Yes, it provides test bits for F8650 or F8651 central modules.
• Q: Can it be used with additional power supply kits?A: Yes, with assembly kit B9361, it monitors PS1–PS3 via 24 V outputs.

Additional Details

• Each module is factory tested before shipment.
• Supplied with installation guide and user documentation.
• Supports easy maintenance and front-access battery replacement.
• CE and EMC certified for industrial use.
