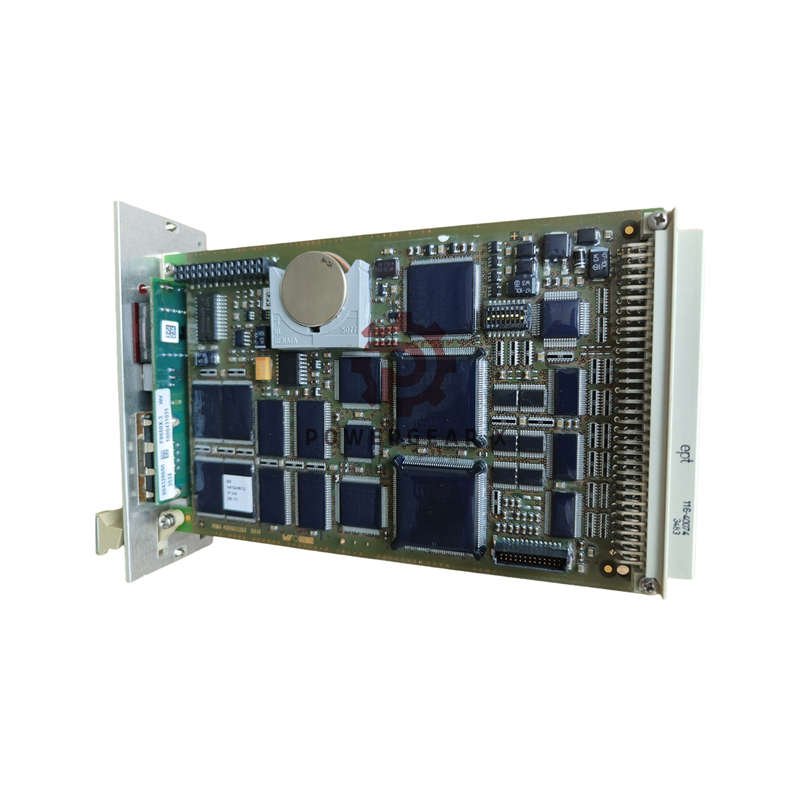

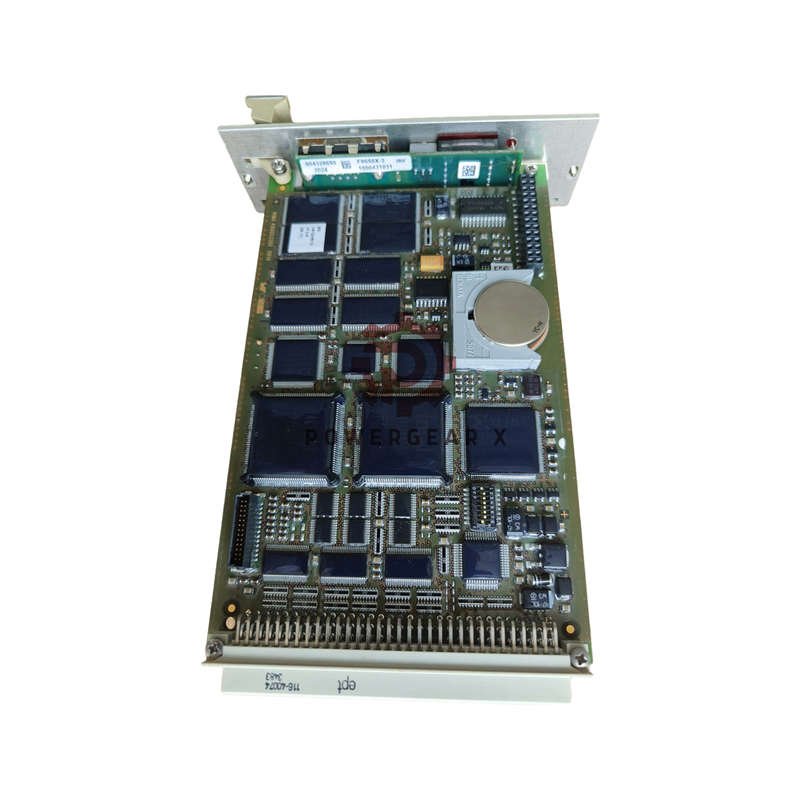

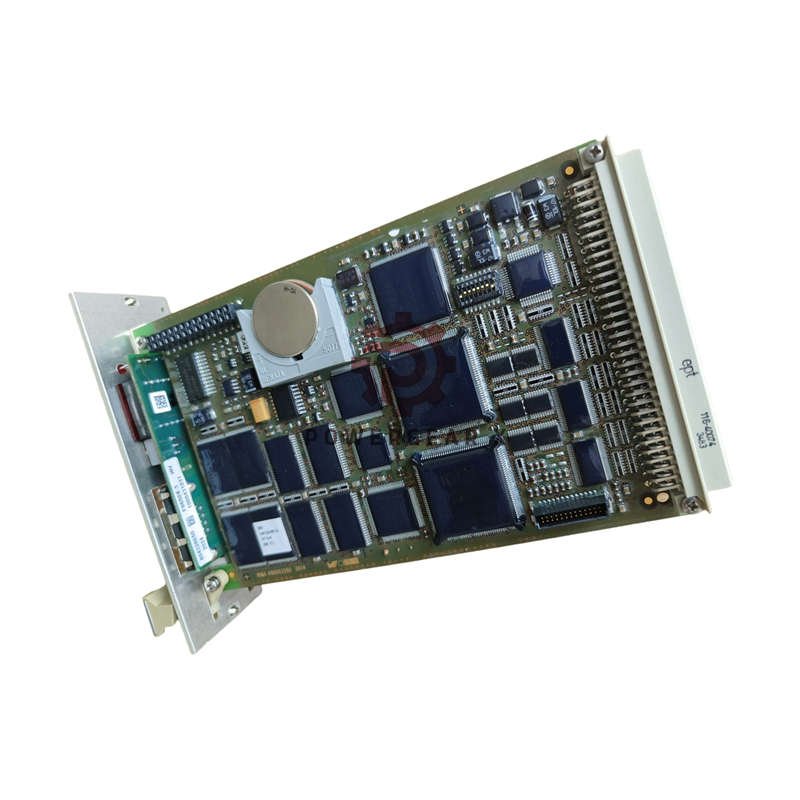

HIMA F 8650X Central Safety Module | Industrial Safety Controller

Overview & Key Value

• The F 8650X provides safety-rated control for H51q-MS, H51q-HS, and H51q-HRS automation systems.
• The module supports self-education and ELOP II TCP from OS BS41q/51q V7.0-8 release.
• You get continuous diagnostics via a four-digit display and two error LEDs for quick fault detection.

Technical Specifications (Brand & Model Included)

• Brand and Model: HIMA F 8650X central module for H51q series safety controllers.
• Microprocessor: Intel 386EX, 32-bit, clocked at 25 MHz.
• Operating System Memory: 1 MB Flash-EPROM for OS storage.
• User Program Memory: 1 MB Flash-EPROM for application logic.
• Data Memory: 1 MB SRAM for runtime variables.
• Interfaces: Two RS-485 ports with electric isolation for noise-resistant communication.
• Diagnostics: 4-digit alphanumeric display, CPU and IO LEDs.
• Safety Watchdog: 24 V output, loadable to 500 mA, short-circuit proof.
• Construction: Two European standard PCBs, one diagnostic PCB.
• Space Requirement: 8 SU.
• Operating Power: 5 V / 2 A.
• Buffer Battery Life: 1000 days at 25 °C, 200 days at 60 °C without power.
• Recommended Battery: Lithium CR 2477N, HIMA Part No. 44 0000018.
• Upgrade Note: When upgrading F 8650 to F 8650X, update the fan concept.

Pinout & RS-485 Signal Map

• Pin 1: Not used.
• Pin 2: RP – 5 V decoupled by diodes.
• Pin 3 (A/A’): RxD/TxD-A – Data line A.
• Pin 4: CNTR-A – Control signal A.
• Pin 5 (C/C’): DGND – Data ground reference.
• Pin 6: VP – 5 V positive supply.
• Pin 7: Not used.
• Pin 8 (B/B’): RxD/TxD-B – Data line B.
• Pin 9: CNTR-B – Control signal B.

Communications & Compatibility

• Use communication module F 8627X to connect the central module to Ethernet.
• The F 8650X communicates via backplane bus to F 8627X and supports SafeEthernet and Modbus TCP.
• Refer to the F 8627X datasheet for configuration and system setup instructions.

Installation Guidelines

• Mount the module in a ventilated cabinet with stable temperature.
• Set switch S1 for correct bus station and transmission rate before startup.
• Ensure proper isolation of RS-485 lines to maintain EMC performance.
• Replace the buffer battery while CPU remains powered to prevent data loss.
• Upgrade the fan system when moving from F 8650 to F 8650X.

Packaging Contents

• 1 × HIMA F 8650X central module in anti-static packaging.
• 1 × Printed quick start guide with pinout and switch configuration.
• 1 × Mounting screw kit and sealing accessories.
• 1 × Lithium buffer battery (CR 2477N type).
• Shipping via FedEx, UPS, or DHL with tracking service.

FAQ

• Q: How can I update the operating system?
  A: Use ELOP II tools as described in the BS41q/51q V7.0-8 OS manual.
• Q: Which module connects it to Ethernet?
  A: The F 8627X communication module enables Ethernet and Modbus TCP connectivity.
• Q: What is the battery life at room temperature?
  A: About 1000 days at 25 °C; replace every six years or when BATI alert appears.
• Q: What safety level does this module support?
  A: It supports up to SIL 3 per IEC 61508 for safety-related systems.
