Product details
Main Highlights
- Input: 24 V DC ±20% tolerance with ripple < 15%.
- Output: 5 V DC ±0.5 V, factory set to 5.4 V ±0.025 V.
- Output current: up to 10 A, short-circuit proof.
- Overvoltage protection: 6.5 V ±0.5 V.
- Efficiency: ≥ 77% under full load.
- Primary fuse: 6.3 A (slow-blow type).
- Interference limits: Class B per VDE 0871/0877.
- Safe isolation between input and output circuits.
- Space requirement: 8 TE.
Performance Features
- Stable power for automation and safety systems.
- Precise voltage adjustment using a front potentiometer.
- Integrated test socket for fast measurement and diagnostics.
- Protected against short circuit, overload, and overvoltage.
- Ideal for redundant operation — output voltage difference ≤ 0.025 V.
- Designed for continuous 24/7 industrial performance.
- Compact form factor reduces cabinet space usage.
Technical Specifications
- Brand: HIMA

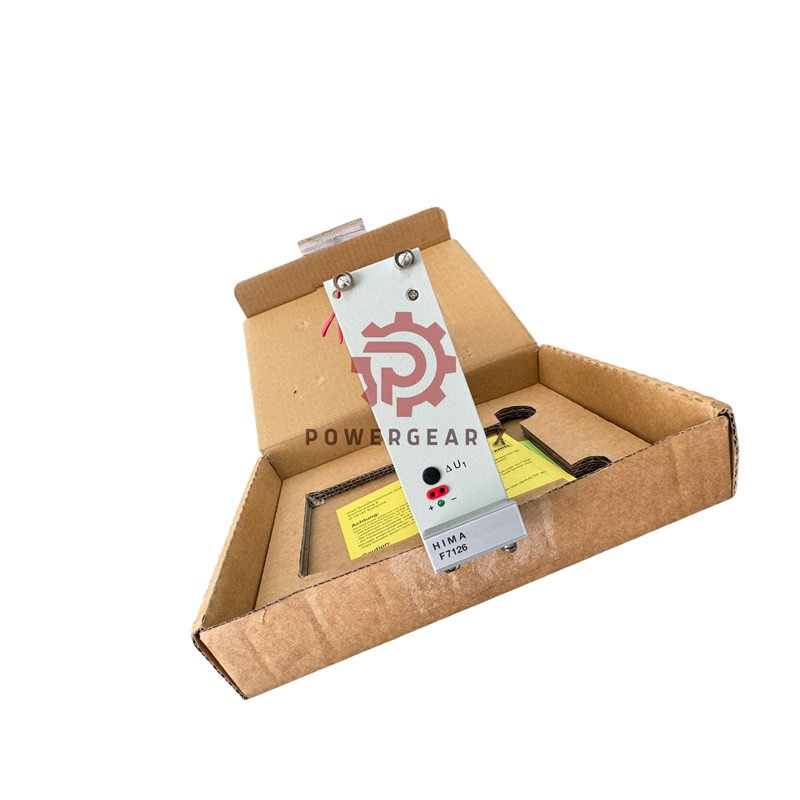

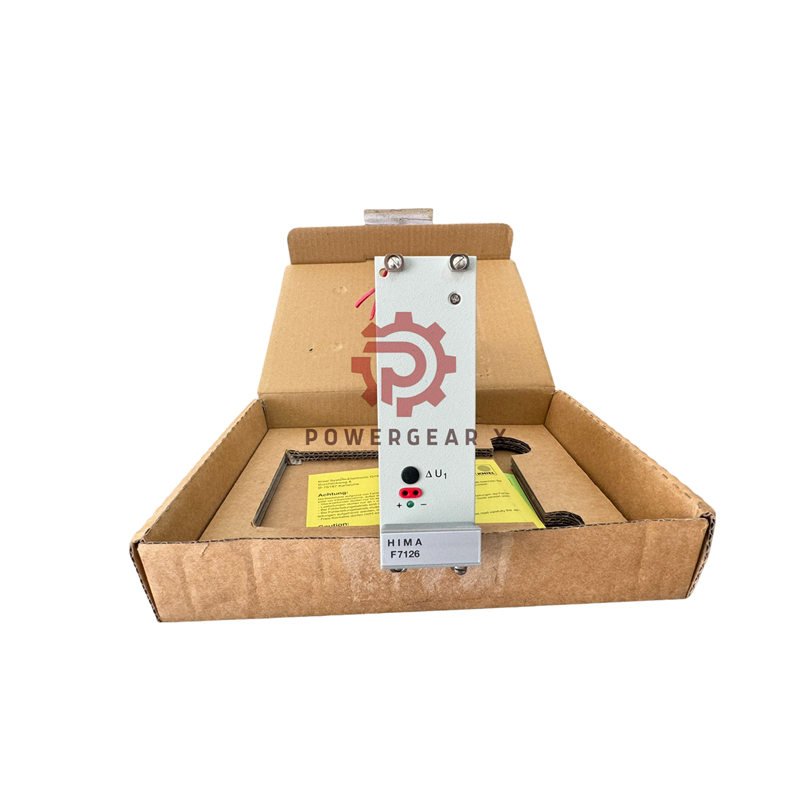

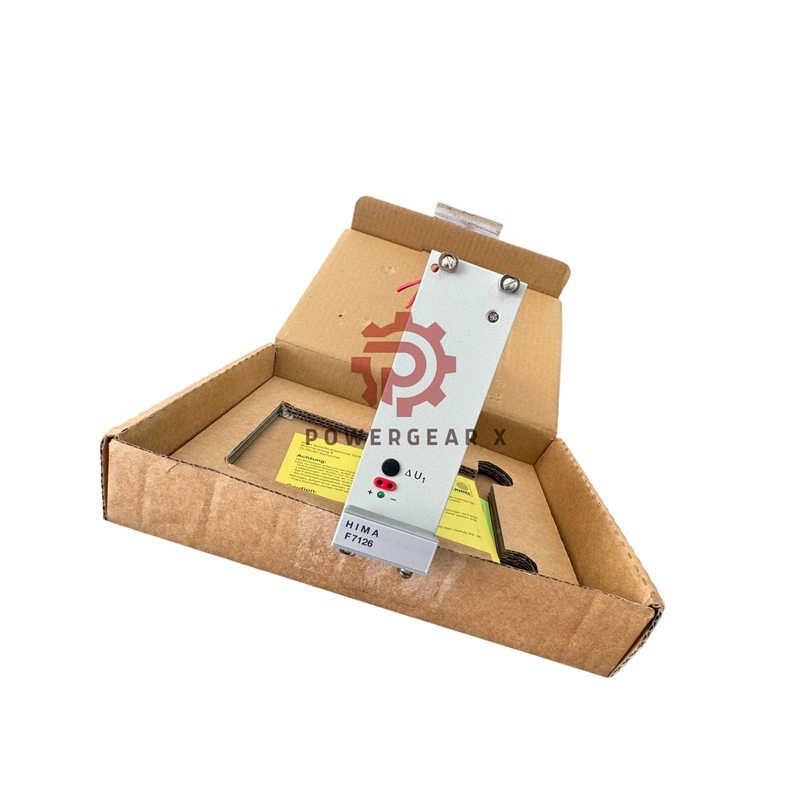

- Model: F 7126
- Input Voltage Range: 20.4 – 28.8 V DC
- Output Voltage: Adjustable from 4.5 – 5.5 V DC
- Rated Output Current: 10 A continuous, 13 A limit
- Ripple Noise: < 100 mV (typical)
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Cooling Method: Natural convection
- Mounting Type: DIN rail / rack mount
- Weight: approx. 0.8 kg
- Warranty: 12 months standard coverage
Installation Notes
- Ensure even load sharing when two units run in parallel.
- Check polarity before wiring the input terminals.
- Keep spacing around the module for cooling airflow.
- Use shielded cables for industrial EMC compliance.
- Perform voltage adjustment via front potentiometer if needed.
Shipping & Packaging
- Includes 1 × HIMA F 7126 module in anti-static packaging.
- Includes mounting screws and quick start guide.
- Ships worldwide via FedEx, UPS, or DHL.
- Typical delivery time: 5–7 business days.
Product Advantages
- High reliability and long service life.
- Simple front access for testing and voltage control.
- Ideal for H51q and similar automation platforms.
- Stable power output under fluctuating input conditions.
- Reduced maintenance and easy integration with redundant systems.
FAQ
- Q: Can I use the F 7126 in parallel mode?
A: Yes, ensure the voltage difference between units is less than 0.025 V. - Q: What protection does this module include?
A: It has overvoltage, overload, and short-circuit protection. - Q: How can I adjust the output voltage?
A: Use the built-in potentiometer on the front panel. - Q: What is the efficiency under normal operation?
A: The efficiency is typically 77% or higher. - Q: What type of fuse should I use?
A: A 6.3 A slow-blow fuse is recommended on the input.
