High-Performance Leuze K-D M12A-4P-20m-PVC 4-Pin PVC Cable for Automation

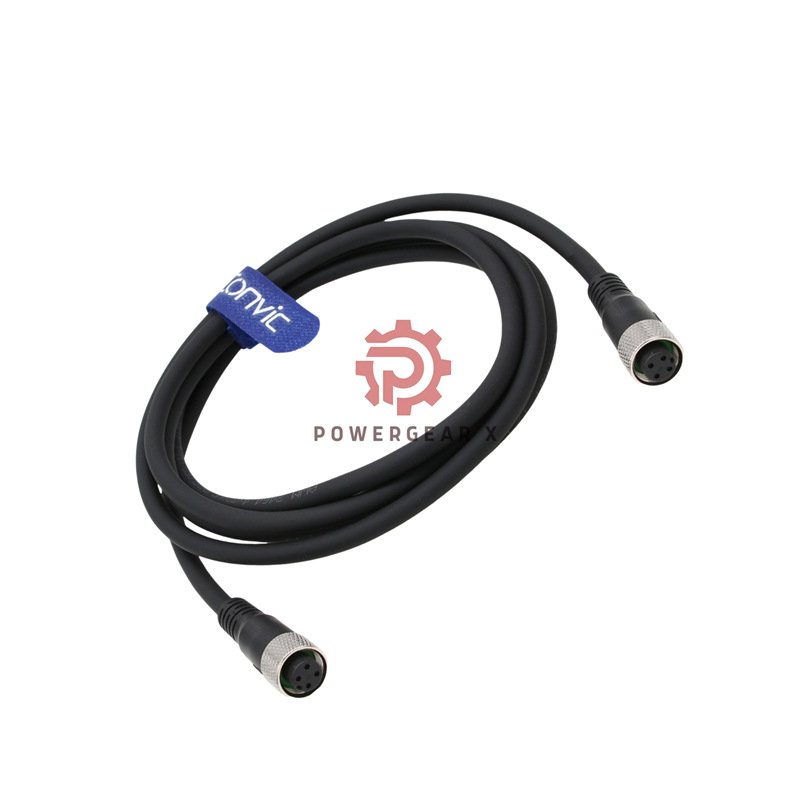

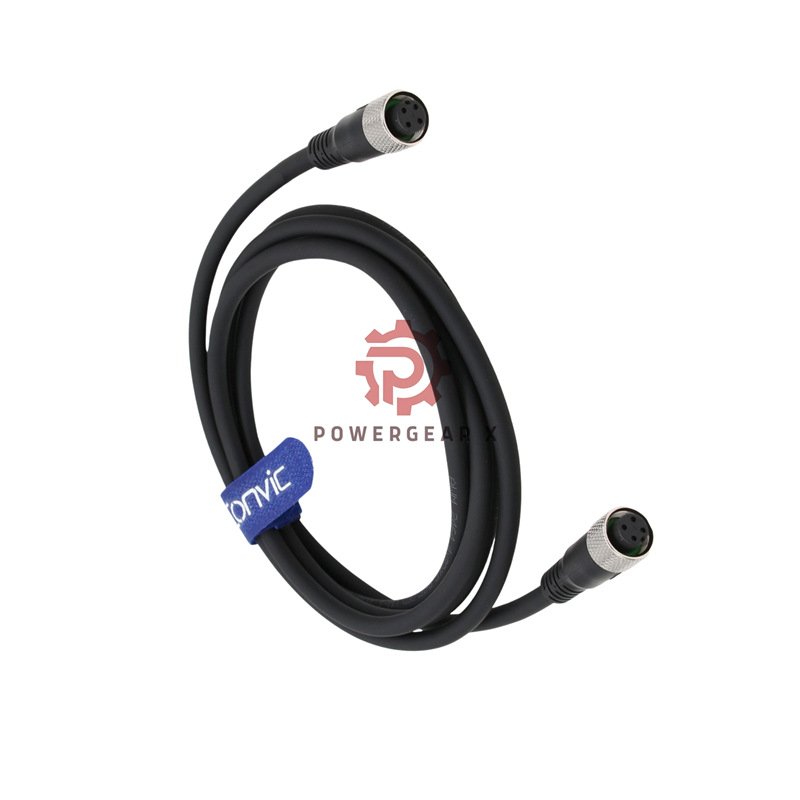

Leuze K-D M12A-4P-20m-PVC Connection Cable

The Leuze K-D M12A-4P-20m-PVC is designed for long-distance industrial connections. Its 20-meter PVC cable ensures signal stability, durability, and easy installation in automation systems.

Type Breakdown

• K-D: Preassembled cable with connector
• M12A: Axial M12 connector type
• -4P: Four-pin design
• -20m: Extended cable length of 20 meters
• -PVC: PVC outer sheath for flexibility and protection

Key Electrical Data

• Rated voltage: ≤250 VAC/DC
• Operating current: ≤4 A per contact
• Insulation class: Category I (IEC 60664-1)
• Contact resistance: ≤5 mΩ
• Insulation resistance: ≥100 MΩ

Mechanical Properties

• Conductor cross-section: 0.34 mm²
• Cable diameter: 4.7 – 5.7 mm
• Minimum bending radius: ≥10 × sheath diameter
• Connector body: Zinc diecast, nickel-plated
• Locking torque: 0.6 Nm (self-locking)

Environmental Conditions

• Fixed wiring: -30°C to +70°C
• Flexible wiring: -5°C to +70°C
• Resistance to oil and chemicals
• Moisture tolerance up to 95% RH
• Shock and vibration resistant structure

Product Highlights

• Reliable long-range signal transmission
• Shielded against electromagnetic interference
• Flexible and easy to route through control panels
• Ideal for machine sensors and I/O systems
• 12-month warranty from Powergear X Automation

Packaging & Delivery

• Package includes 1 × K-D M12A-4P-20m-PVC cable
• Secure anti-static and moisture-proof wrapping
• Delivered globally via FedEx, UPS, or DHL
• Contact: sales@powergearx.com
• WhatsApp: +86 18030005825

FAQ

• Q:
  Can the 20m cable maintain strong signal quality?
  A:
  Yes, its shielding reduces loss and ensures clear data over long runs.
• Q:
  Is this cable suitable for moving machinery?
  A:
  The PVC sheath supports light motion but is best for fixed or limited movement.
• Q:
  How can I prevent connector loosening during vibration?
  A:
  Use the built-in self-locking mechanism with 0.6 Nm torque tightening.
• Q:
  What are the benefits of axial connector type?
  A:
  It fits tight spaces and simplifies vertical or parallel mounting.
• Q:
  Can this model work with other Leuze cables?
  A:
  Yes, it’s fully compatible with all Leuze standard M12 interfaces.

Technical Advantages

• 20m reach ideal for large automation setups
• High flexibility for industrial robots and conveyors
• Stable electrical contact with corrosion protection
• Compact connector design saves installation space
