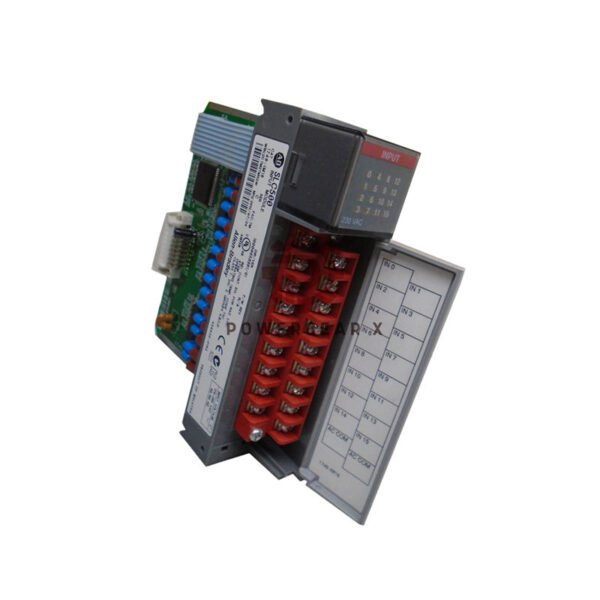

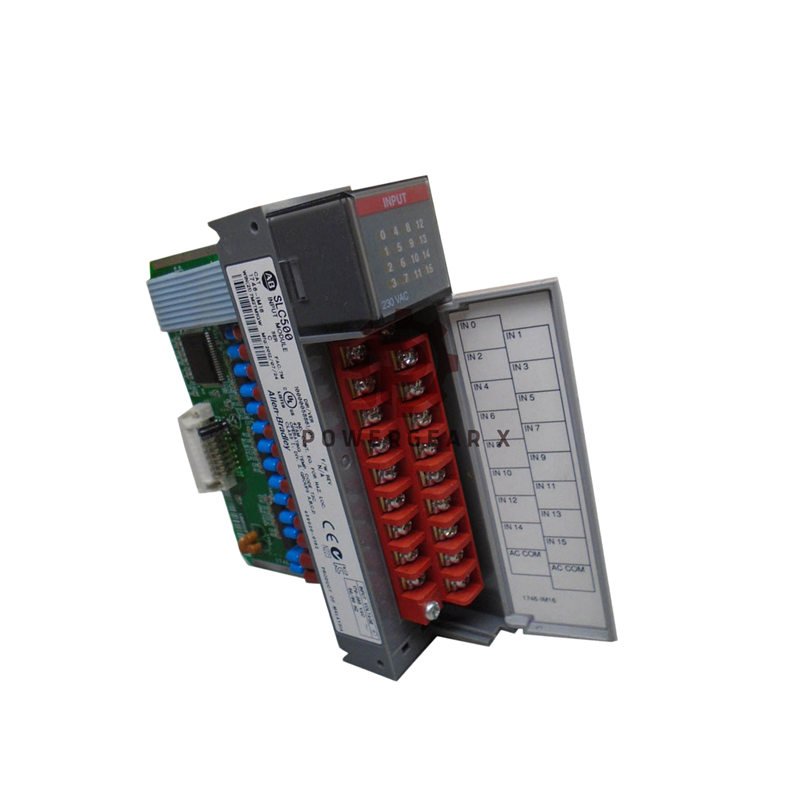

Product Overview: Allen-Bradley 1746-IM16
The Allen-Bradley 1746-IM16 is a high-voltage AC input module. It is part of the reliable SLC 500 series. This module connects your PLC to industrial power signals. It has sixteen input channels for AC voltage. It handles voltages from 170 to 265V AC. This makes it perfect for direct machine control. Use it with switches, contactors, and sensors. The removable terminal block makes wiring safe and easy. Bright status LEDs show the state of each input. This helps you monitor your system quickly.
Key Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model: 1746-IM16
- Series: SLC 500
- Module Type: 240V AC Input Module
- Number of Inputs: 16
- Input Voltage: 170-265V AC
- Frequency: 47-63 Hz
- Nominal Current: 12mA @ 240V AC
- Off-State Current: 2 mA max
- ON Delay: 35 ms
- OFF Delay: 45 ms
- Inrush Current: 0.8A for 0.5ms
- Backplane Current: 85 mA @ 5VDC
- Isolation: 1500V AC Optical
- Operating Temperature: 0 to 60 °C
- Certifications: UL, C-UL, CE, Class I Div 2
- Warranty: 12 Months
