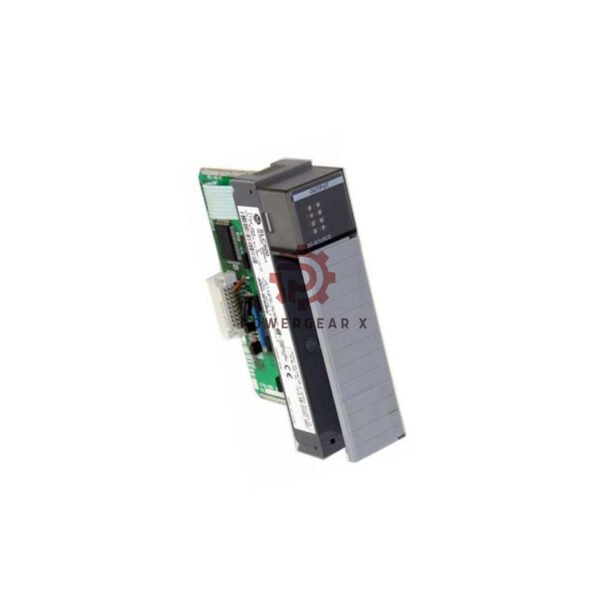

Allen-Bradley 1746-OB8 SLC 500 Output Module | High-Current 8-Channel Control
This Allen-Bradley 1746-OB8 module delivers robust performance for industrial automation. It is an 8-point DC output module from the trusted SLC 500 series. It is perfect for high-current applications.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1746-OB8
- Series: SLC 500
- Type: Digital DC Output Module
- Voltage Range: 10-50 Volts DC
- Output Current: 1A at 30°C or 0.5A at 60°C per point
- Total Current: 8A at 30°C or 4A at 60°C
- Backplane Current: 135mA at 5V DC
- Heat Dissipation: 6.9W total, 0.775W per point
- Leakage Current: Less than 1mA
- Response Time: 2.5ms turn-on
- Isolation: 1500V optical
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Humidity Range: 5% to 95% non-condensing
Installation & Setup
- Mounts easily in a SLC 500 chassis
- Connect to a 24V DC power source
- Wire outputs to devices like relays and valves
- Configure quickly through Rockwell software
- Ensure proper grounding to avoid transients
Compatibility
- Works with all SLC 500 series processors
- Compatible with Rockwell Automation software
- Fits standard SLC 500 chassis
Certifications
- UL Listed
- CE Compliant
- CSA Certified
- C-Tick Approved
Package & Shipping
- Includes one 1746-OB8 module
- 12-month manufacturer warranty
- Shipped via FedEx, UPS, or DHL
FAQ
- What is the max current?
1A per point at 30°C - What power supply is needed?
24V DC source - How to avoid transient pulses?
Follow wiring guidelines in manual - Is it compatible with Logix?
Works with SLC 500 systems
Download Manual
For complete installation and wiring details, please download the user manual.
