HG-SR352BJ | Mitsubishi HG Series AC Servo Motor 3.5kW with Brake and Oil Seal

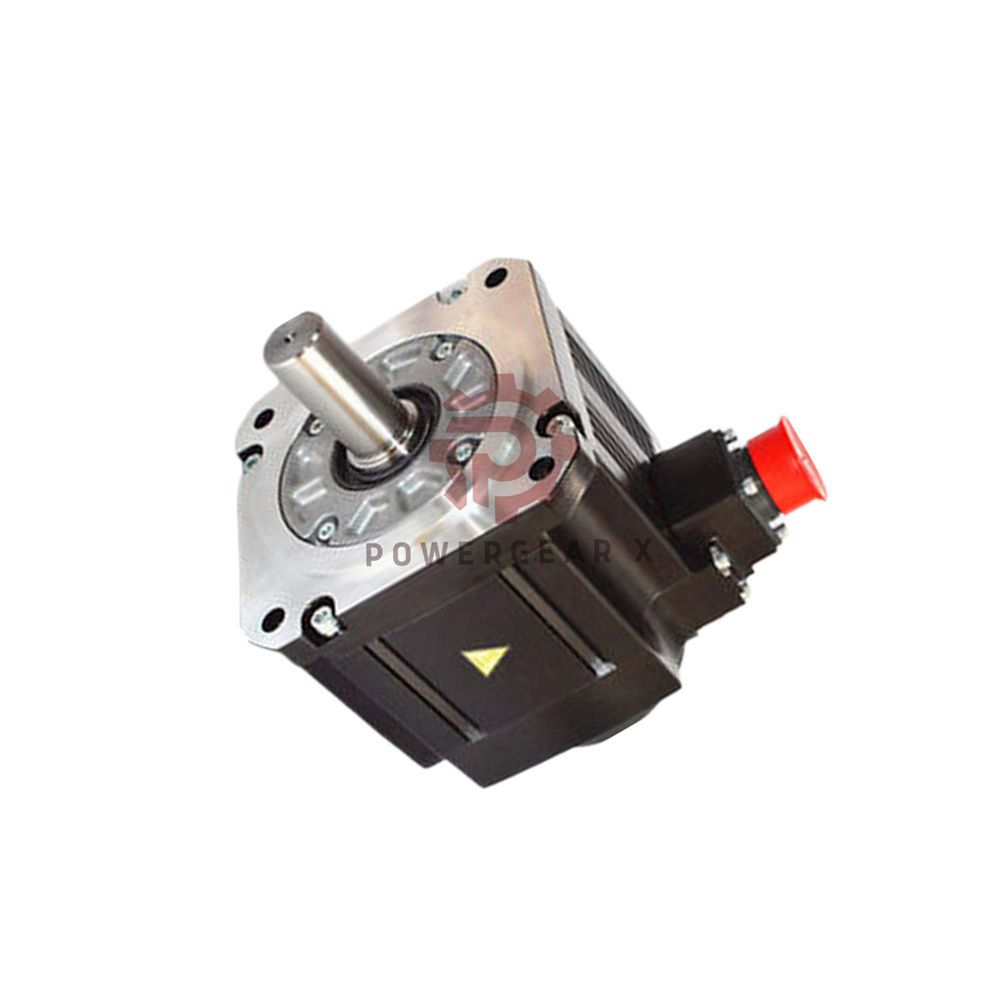

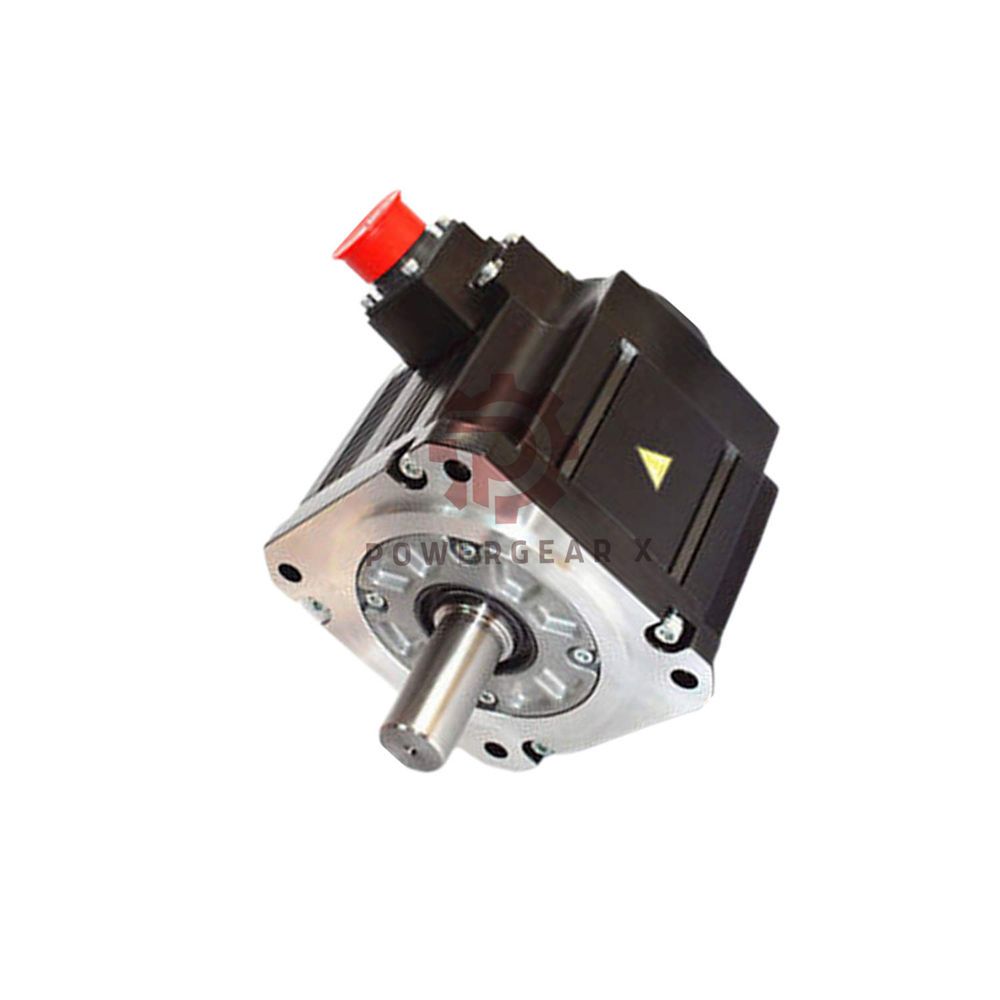

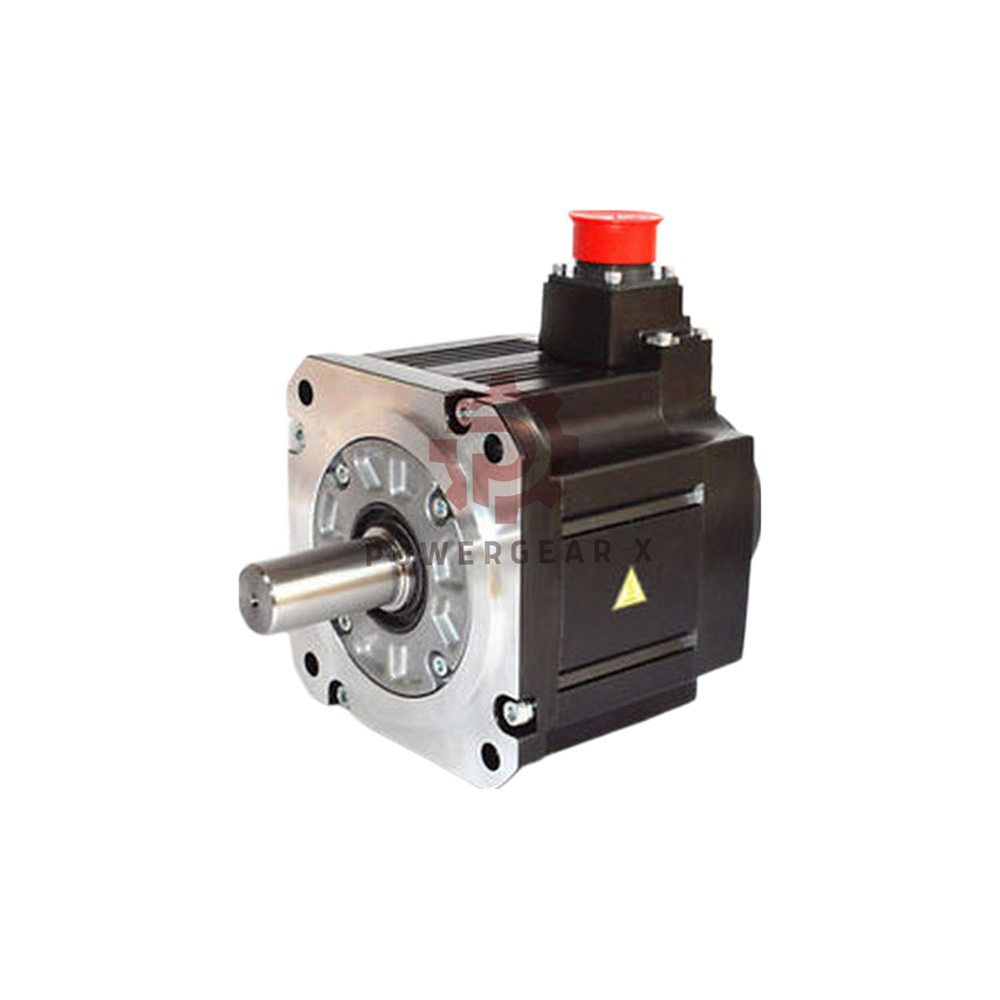

HG-SR352BJ Mitsubishi AC Servo Motor – 3.5kW / 16.7 Nm / 2000 rpm / With Brake

HG-SR352BJ from Mitsubishi is a powerful AC servo motor. It delivers 16.7 Nm nominal torque and 3.5 kW output power. Max torque reaches 50.1 Nm. Speed goes up to 2000 rpm. Built-in brake and oil seal add durability. Medium inertia gives smooth control.

Technical Specifications – Tree View

• Brand & Model
  • Manufacturer: Mitsubishi Electric
  • Product Type: AC Servo Motor
  • Product Line: HG Series
  • Part Number: HG-SR352BJ
• Power & Torque
  • Output Power: 3.5 kW
  • Nominal Torque: 16.7 Nm
  • Maximum Torque: 50.1 Nm
  • Rotational Speed: 2000 rpm
• Electrical Ratings
  • Supply Voltage: 200V AC Class
  • Rated Current: 14A
  • Maximum Current: 45A
• Mechanical Features
  • Inertia Type: Medium Inertia
  • Motor Capacity: Medium Inertia
  • Shaft Type: Straight Shaft
  • Electromagnetic Brake: Included
  • Oil Seal: Included
  • Weight: 6.80 kg (15.00 lbs)

Suitable Devices & Applications

• Suitable Devices
  • Large pick-and-place robots
  • CNC machines
  • Injection molding robots
  • Heavy conveyor systems
  • Packing machines
• Application Scenarios
  • High-torque positioning in factories
  • Material handling with heavy loads
  • Automated assembly lines
  • Vertical axis with brake needed

Installation Quick Guide

• Mount on sturdy base. Use proper bolts for 6.8 kg weight.
• Connect brake wires to 24V DC supply.
• Align straight shaft with load coupling.
• Oil seal already fitted – keeps dirt out.
• Use shielded cables for power and encoder.

Debugging & Maintenance

• Use MR Configurator2 software for tuning.
• Medium inertia means less oscillation during tuning.
• Check brake function: 24V on = release, off = lock.
• Oil seal lasts long – no frequent replacement.
• Clean exterior with soft cloth.

Compatibility

• Works with Mitsubishi MR-J4 series drives.
• Also compatible with MR-JE series (check power rating).
• Use with MELSEC iQ-R or Q series PLC.
• Encoder protocol is Mitsubishi specific. Third-party drives not supported.

Certifications

• CE Marked (EMC & Low Voltage Directive)
• UL Recognized (File E134986)
• RoHS Compliant

Package Contents

• 1 x HG-SR352BJ servo motor (with brake)
• 1 x shaft key
• 1 x power connector
• 1 x encoder connector
• Manual download card
• Cables not included – order separately.

Warranty & Fast Shipping

• Warranty: 12 months from invoice date.
• Dispatch: 12-24 hours after order confirmation.
• Carriers: FedEx, UPS, DHL (tracking number provided).

Frequently Asked Questions (FAQ)

• What is medium inertia good for?
  • It gives a balance between fast response and smooth running. Best for medium to heavy loads that need controlled moves.
• Can I run this motor without the brake?
  • No. Brake is built-in. You cannot remove it. For vertical or holding applications, the brake is essential.
• Why does this motor have an oil seal?
  • Oil seal blocks dust and oil mist. It protects bearings and encoder. Use in cleaner industrial areas.
• How to choose between HG-SR352BJ and HG-KR series?
  • HG-SR352BJ has medium inertia and high torque (16.7 Nm). HG-KR series has low inertia and lower torque. Pick SR for heavy loads, KR for light fast moves.
• What about warranty and delivery?
  • 12 months warranty. Ships in 12-24 hours via FedEx, UPS, or DHL. Tracking number sent by email.

Purchasing Guidance

• Check your drive: needs MR-J4-350A or similar (3.5kW class).
• Oil seal included – good for semi-dirty areas, not submersible.
• Need high torque? 50.1 Nm peak handles overloads.
• For lighter tasks, check HG-KR series (lower torque).
• Buy cables and amplifier together for full system.
• Confirm 200V AC power supply before ordering.
