Name: HG-SR202BJ Mitsubishi 2kW Rotary Servo Motor | IP67 22-Bit Encoder Brake
SKU: HG-SR202BJ
Availability: InStock

HG-SR202BJ Mitsubishi 2kW Rotary Servo Motor | IP67 22-Bit Encoder Brake

Rated 0 out of 5

0 Reviews

10 in stock

Mitsubishi MR-J3-10A is a 100W MELSERVO MR-J3 servo amplifier for fast positioning, stable speed control, and precise motion systems.

Product details

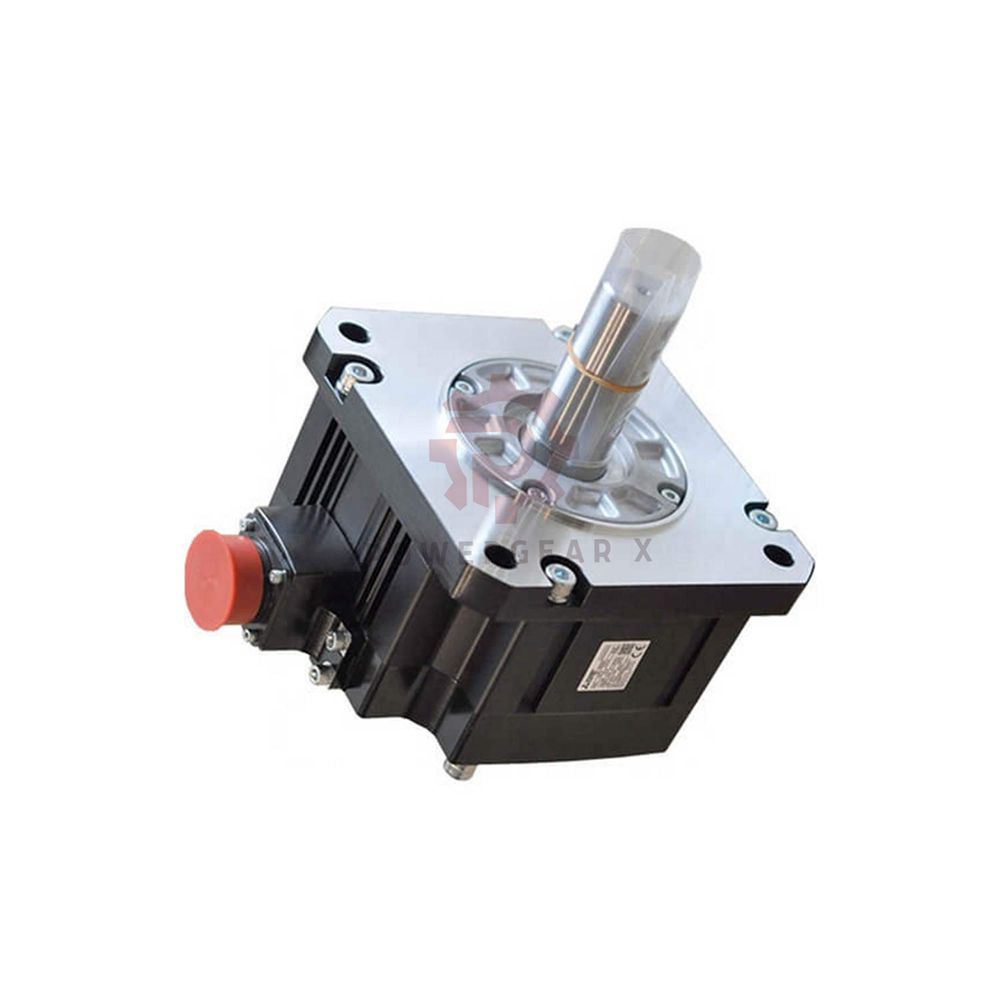

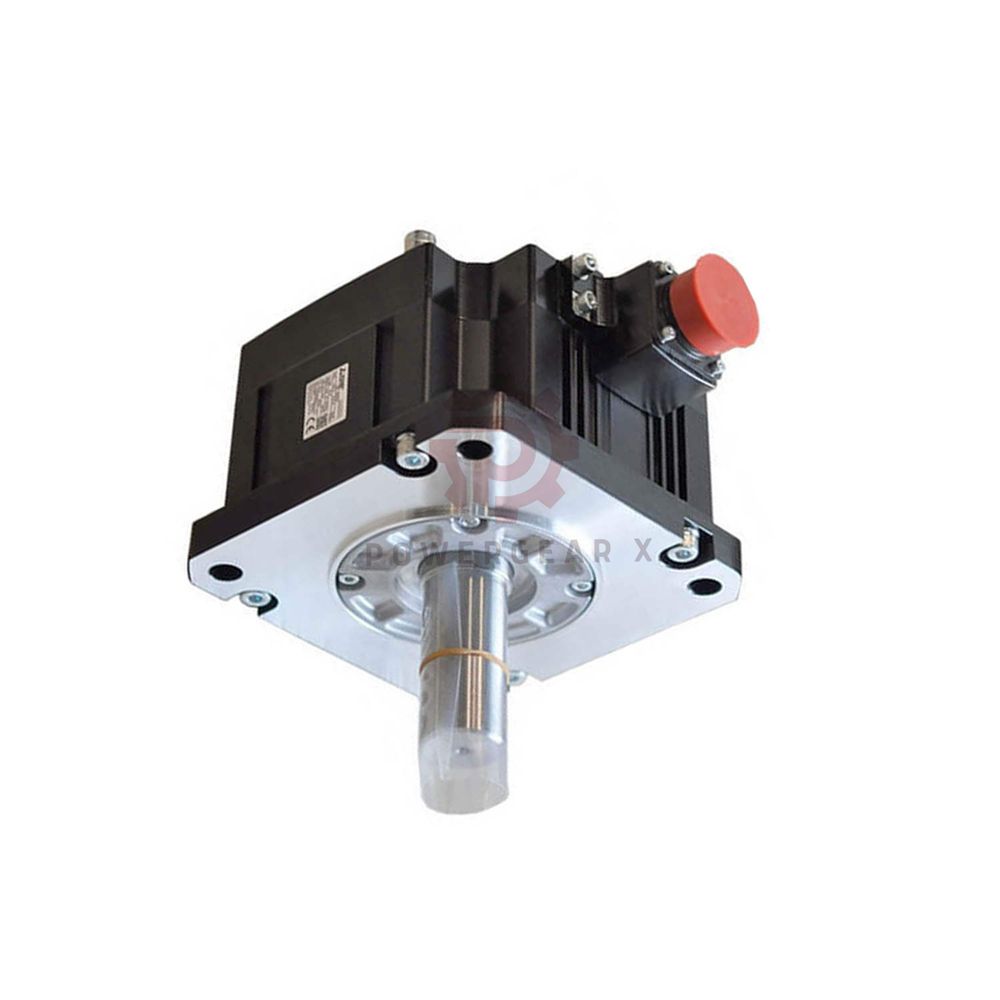

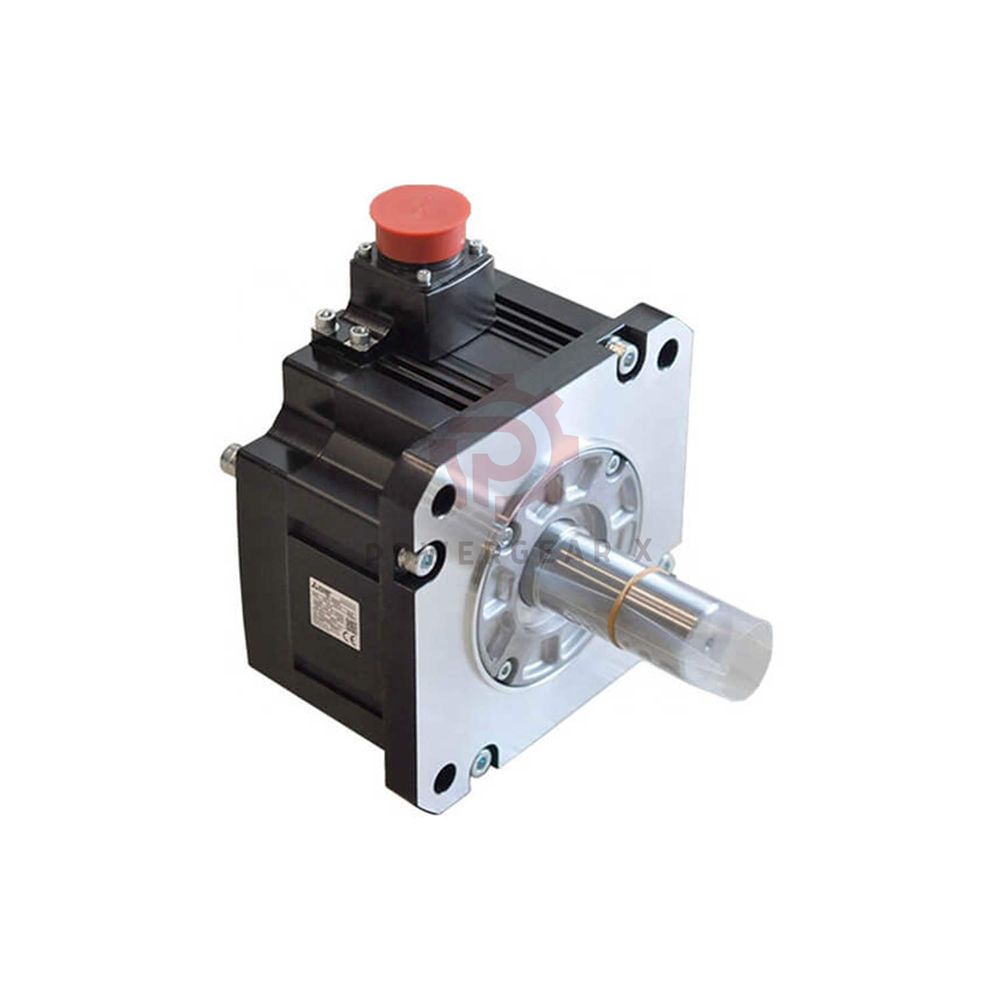

HG-SR202BJ is a tough rotary servo motor from Mitsubishi HG Series.
- Delivers 2 kW active power for medium capacity jobs.
- Features medium inertia design for smooth and stable control.
- Rated speed: 2000 RPM | Maximum speed: 3000 RPM.
- Provides 9.5 Nm rated torque and 28.6 Nm peak torque.
- Includes electromagnetic brake for safe holding.
- Protection rating: IP67 (dust-tight and waterproof).

General Identification
- Brand: Mitsubishi
  - Product Line: HG Series
    - Model: HG-SR202BJ
      - Product Type: Rotary Servo Motor
      - Motor Capacity: Medium Capacity
Electrical Ratings
- Supply Voltage Class: 200VAC Class
  - Rated Active Power: 2 kW
    - Rated Current: 9.6 A
Speed & Torque
- Rotational Speed: 2000 RPM
  - Maximum Speed: 3000 RPM
    - Nominal Torque: 9.5 Nm
      - Maximum Torque: 28.6 Nm
Mechanical & Environmental
- Inertia Type: Medium Inertia
  - Protection Rating: IP67
    - Mounting Mode: 176 x 176 mm Flange Mounting
      - Connection Type: 2 MS-Type Connectors
Encoder & Brake
- Encoder: 22-Bit Absolute Encoder
  - Brake Type: Electromagnetic Brake (holds position when power is off)
Physical Attributes
- Weight: 15.00 lbs (6.80 kg)

“Best value for mid-range rotary axes.”
- Senior Motion Control Specialist comment
22-bit encoder gives very smooth low-speed motion.
- No jitter at 1 RPM or less
Electromagnetic brake saves machine cost.
- No external brake needed for vertical loads
IP67 rating survives washdown and dust.
- Ideal for food and packaging lines
Two MS connectors make wiring fast.
- Less chance of pin damage during setup

Does the electromagnetic brake hold the load when power is off?
- Yes, the brake engages automatically when power is cut.
- Holding torque matches the motor’s rated torque (9.5 Nm).
- Use it for vertical axes or safety stops.
Can I use this motor without the 22-bit absolute encoder?
- No, the encoder is built-in and cannot be removed.
- It works with Mitsubishi absolute drives (MR-J4, MR-J5).
- You can run it in incremental mode if needed.
What is the difference between MS-type connectors and standard ones?
- MS connectors are military-spec, very rugged.
- They lock tightly and resist vibration.
- Standard connectors may loosen over time.
Which drive is best for HG-SR202BJ?
- Use MR-J4-200A or MR-J5-200A servo amplifier.
- Match drive power (2kW or higher).
- Older MR-J3-200A works with adapter cable.
What is the warranty and shipping policy?
- 12-month warranty covers defects.
- We ship within 12-24 hours after payment.
- Carriers: FedEx, UPS, DHL with full tracking.

Check your load inertia carefully.
- Medium inertia works for most rotary tables.
- For very heavy loads, choose high inertia series.
Test the brake before final assembly.
- Apply 24V DC to release brake manually.
- Brake engages when voltage drops below 2V.
Use shielded cables for encoder.
- Long runs over 20m need ferrite cores.
- Noise can cause position errors.
Mount flange on flat, rigid surface.
- 176mm bolt pattern is standard.
- Use all 4 mounting bolts for IP67 seal.
Order MS connector cables with motor.
- Generic cables may not seal properly.
- Genuine Mitsubishi cables guarantee IP67.
