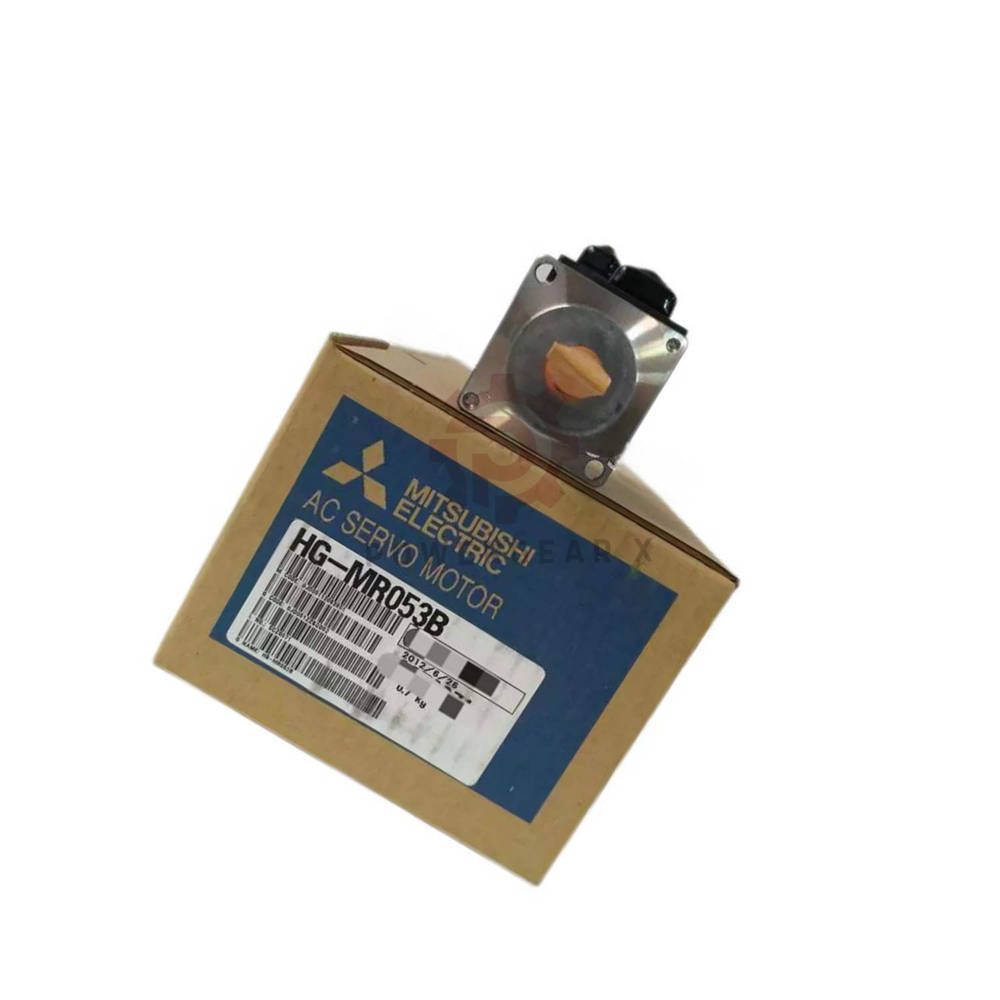

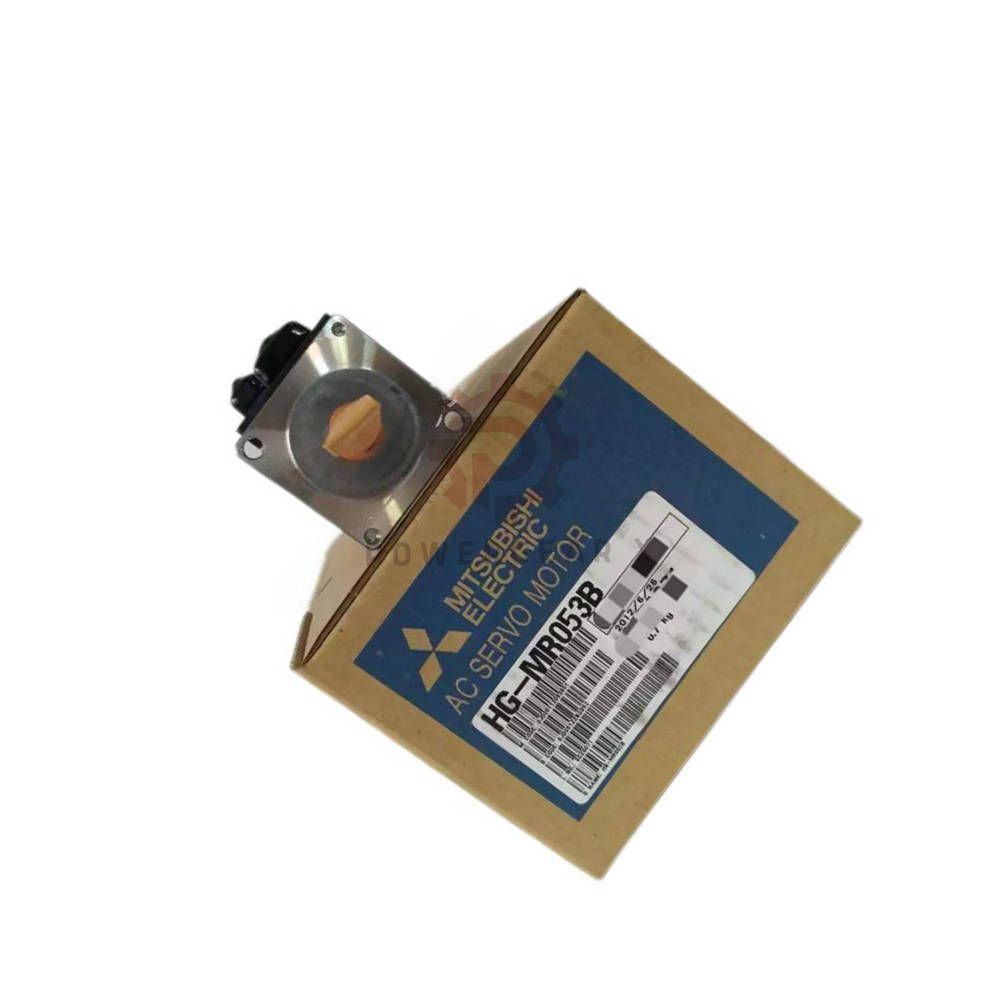

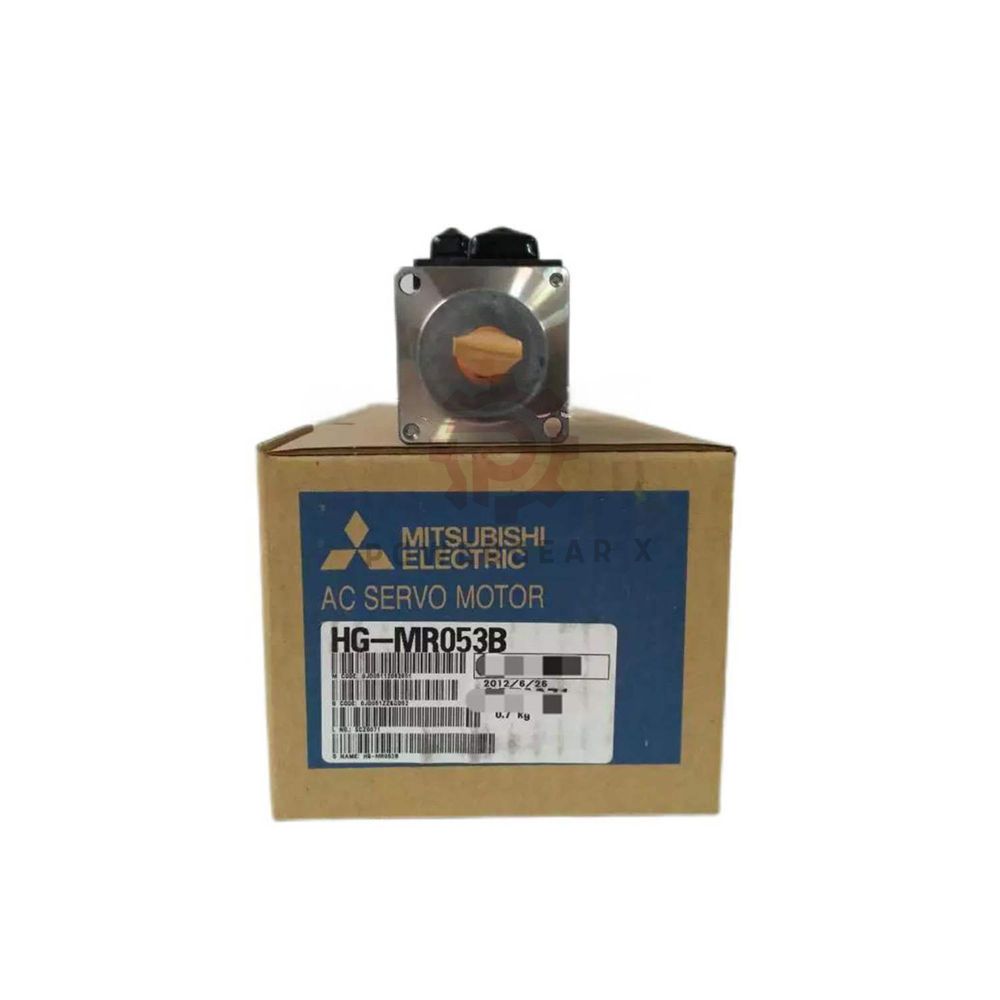

HG-MR053B Mitsubishi Ultra-Low Inertia Servo Motor – 0.05 kW / 0.16 Nm / 6000 RPM
HG-MR053B from Mitsubishi is a compact servo motor. It features ultra-low inertia for fast response. Rated output is 0.05 kW. Maximum speed reaches 6000 r/min. Built-in brake provides holding safety. Perfect for small, quick tasks.
Expert Review
Best for rapid motion: 0.48 Nm peak torque handles short overloads. 22-bit encoder (implied) gives precise feedback. Runs cool at 1A rated current. Lightweight at 4.54 kg. Easy to mount with standard shaft. Ideal for lab automation and small conveyors.
Technical Specifications – Tree View
- Brand & Model
- Manufacturer: Mitsubishi Electric
- Product Line: HG Series
- Part Number: HG-MR053B
- Product Type: Servo Motor
- Power & Torque
- Rated Output: 0.05 kW (50 Watts)
- Rated Torque: 0.16 Nm
- Maximum Torque: 0.48 Nm
- Rated Speed: 3000 r/min
- Maximum Speed: 6000 r/min
- Electrical Ratings
- Rated Current: 1A
- Maximum Current: 3.1A
- Mechanical Features
- Inertia Class: Ultra-Low Inertia
- Capacity: Small Capacity
- Electromagnetic Brake: Built-in
- Oil Seal: None
- Shaft Shape: Standard
- Weight: 4.54 kg (10.00 lbs)
Suitable Devices & Applications
- Suitable Devices
- Small pick-and-place robots
- Labeling machines
- Desktop assembly tools
- Medical sample handlers
- 3D printers (fast movement)
- Application Scenarios
- High-speed positioning in electronics
- Light conveyor diverters
- Laboratory automation
- Vertical axis with brake needed
Installation Quick Guide
- Mount on flat metal plate. Use M4 screws.
- Connect brake wires to 24V DC.
- Match standard shaft with coupling.
- No oil seal – avoid oily areas.
- Keep cables away from sharp edges.
Debugging & Maintenance
- Use MR Configurator2 software for setup.
- Check brake operation: 24V on = release, off = hold.
- Ultra-low inertia means less tuning time.
- Clean outside with dry cloth. IP rating is not high – protect from liquids.
Compatibility
- Works with Mitsubishi MR-JE series drives.
- Also compatible with MR-J4 series.
- Use with MELSEC PLC for motion control.
- Encoder protocol is Mitsubishi specific. Non-Mitsubishi drives are not supported.
Certifications
- CE Marked (EMC & safety)
- UL Recognized (E134986)
- RoHS Compliant
Package Contents
- 1 x HG-MR053B servo motor (with brake)
- 1 x shaft key
- 1 x 4-pin connector (motor side)
- Manual download card
- Cables not included – order separately.
Warranty & Fast Shipping
- Warranty: 12 months from invoice date.
- Dispatch: 12-24 hours after order.
- Carriers: FedEx, UPS, DHL (tracking provided).
Frequently Asked Questions (FAQ)
- What is ultra-low inertia good for?
- It allows very fast acceleration and deceleration. Best for pick-and-place or scanning heads.
- Can I use this motor without a brake?
- No. The brake is built-in. You cannot remove it. For vertical loads, the brake helps hold position.
- Why no oil seal? What does that mean?
- No oil seal means oil mist can enter. Do not install in oily or wet areas. Keep it dry and clean.
- How to choose between HG-MR053B and HG-KR053BJ?
- HG-MR053B has ultra-low inertia – faster response. HG-KR053BJ has low inertia but IP65 rating. Pick MR for speed, pick KR for harsh environments.
- What about warranty and delivery?
- 12 months warranty. Ships in 12-24 hours via FedEx, UPS, or DHL. Tracking number provided.
Purchasing Guidance
- Check your drive: needs MR-JE-10A or MR-J4-10A.
- No oil seal – order only for clean, dry areas.
- Need faster response? Ultra-low inertia is your choice.
- For oily or dusty environments, choose HG-KR series (IP65).
- Buy cables and amplifier together for a complete system.
