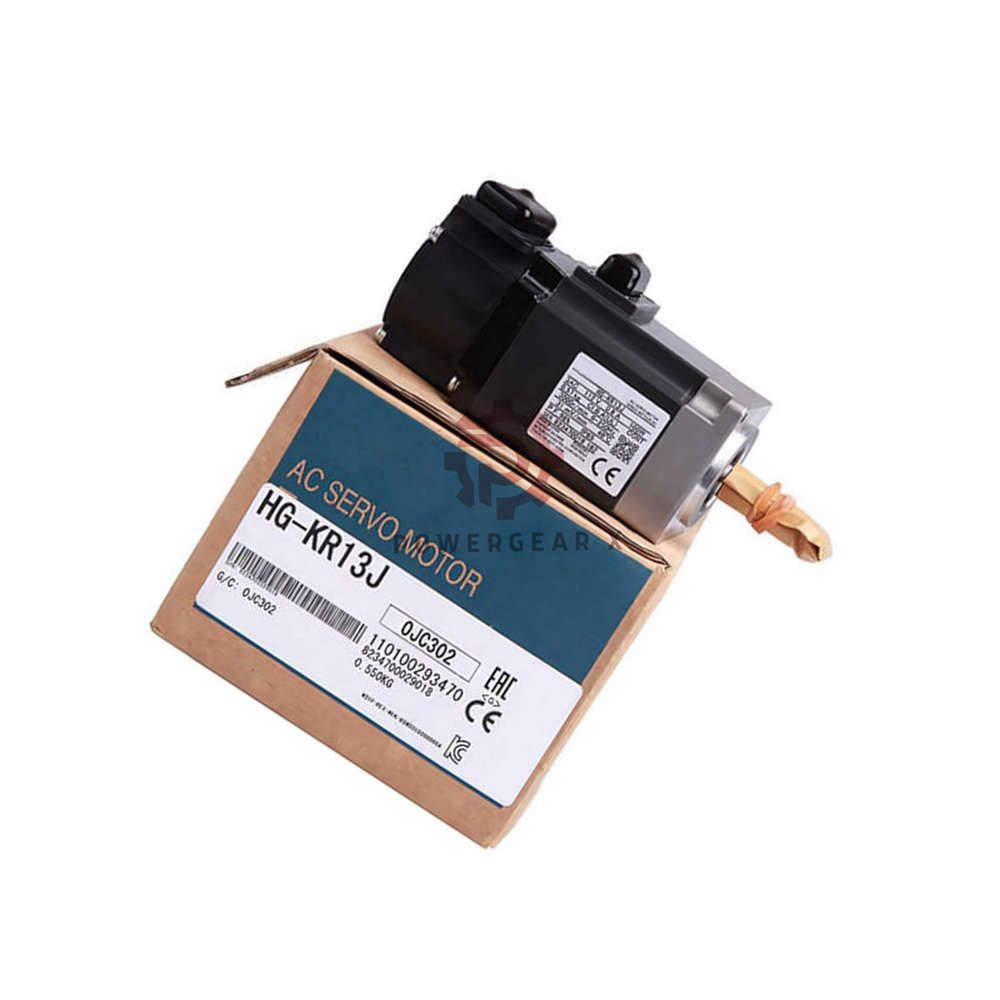

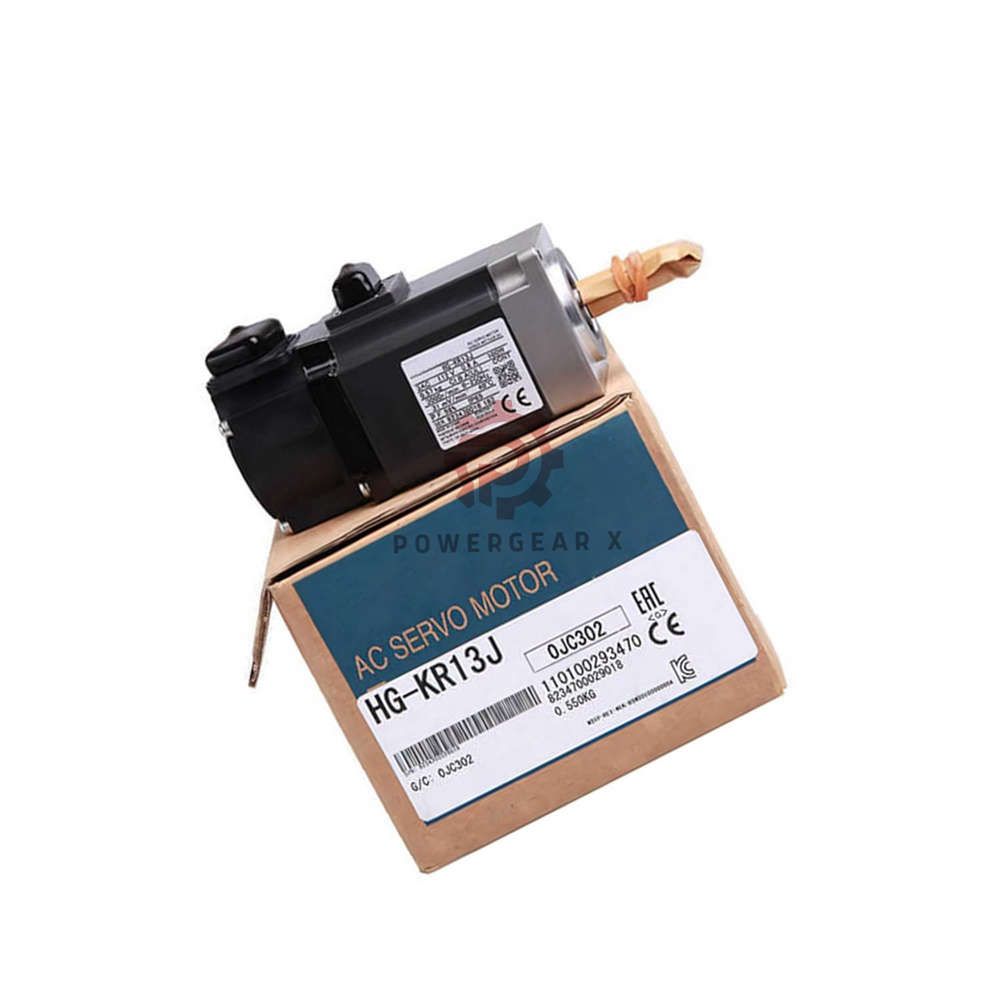

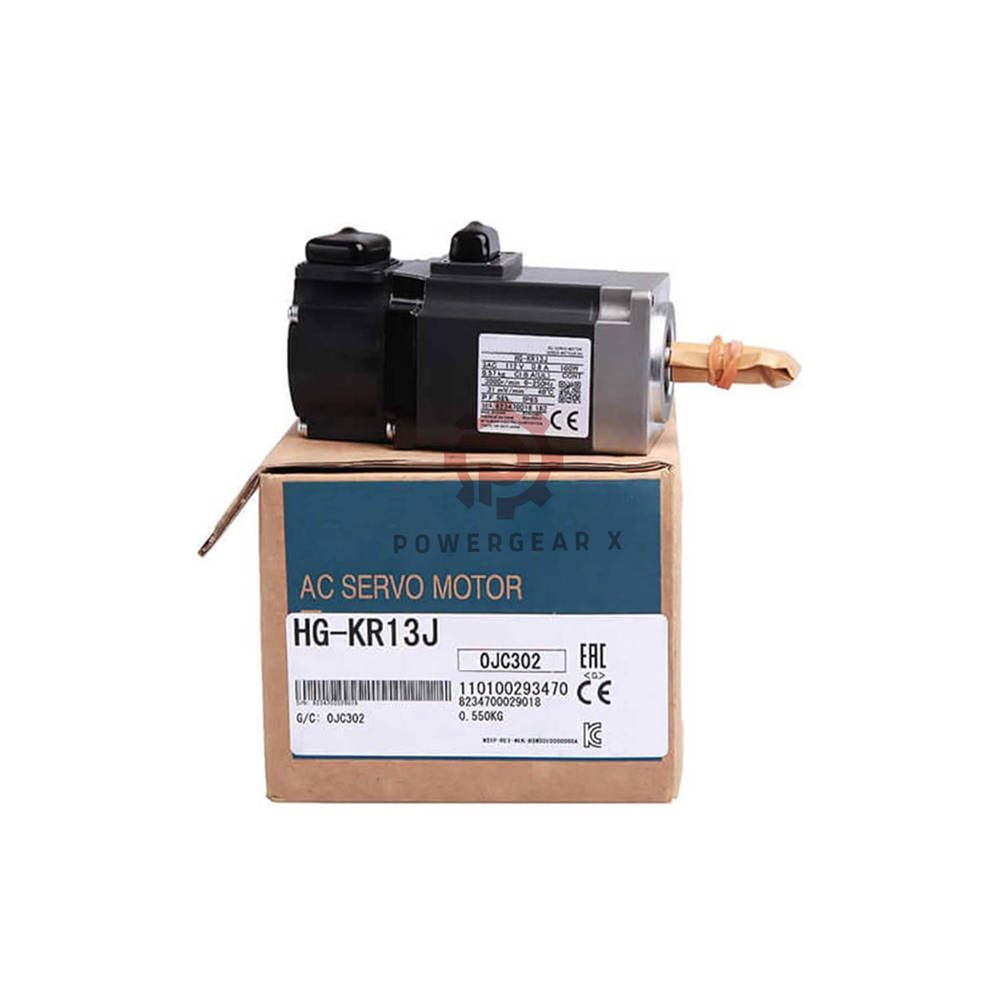

HG-KR13J – Mitsubishi HG Series Low-Inertia Brushless Servo Motor (0.1 kW, 3000 RPM)
Key Features – Simple & Powerful
- Low-inertia design for fast start and stop.
- 0.1 kW output – perfect for small machines.
- Runs at 3000 RPM normally, up to 6000 RPM peak.
- IP65 protection – dust tight and water resistant.
- Oil seal support adds durability in tough spots.
- Straight shaft for easy coupling.
Technical Specifications
- General Information
- Brand: Mitsubishi Electric
- Product Line: HG Series
- Model: HG-KR13J
- Type: Low-inertia brushless servo motor
- Weight: 1.44 lbs (0.65 kg)
- Power & Speed Ratings
- Output Power: 0.1 kW (small power capacity)
- Rated Speed: 3000 RPM
- Maximum Speed: 6000 RPM
- Rated Torque: 0.32 Nm
- Maximum Torque: 1.1 Nm
- Mechanical Features
- Shaft Type: Straight (easy to install)
- Oil Seal: Supported (better life in oily areas)
- Protection Class: IP65 (dust and water jets)
- Environmental Limits
- Operating Temperature: 0 to 40 °C
- Suitable for general factory floors
Expert Review
- “The HG-KR13J gives smooth motion at high speeds up to 6000 RPM. Low inertia means quick direction changes. IP65 and oil seal make it reliable on packaging lines. A top pick for small servo tasks.” – Senior Motion Control Engineer, Powergear X.
Manager’s Insight
- “For compact machines needing 0.1 kW power, this motor saves panel space. It pairs perfectly with MR-J4 amplifiers. The 3000 RPM rated speed covers 90% of light-duty apps. Very cost-effective.” – Product Manager, Industrial Drives.
Where to Use HG-KR13J? (Best Applications)
- Small CNC machines: engraving, PCB drilling.
- Pick-and-place units: fast indexing, light assembly.
- Medical devices: precision liquid handling.
- Labeling & printing: rotary label feeders.
- Laboratory automation: sample conveyors, mixers.
- Works with Mitsubishi MR-J4 and MR-JE series amplifiers.
Frequently Asked Questions (FAQ)
Q1: Can I run this motor at 6000 RPM continuously?
A: No. 6000 RPM is maximum speed for short periods. Rated speed is 3000 RPM for continuous duty.
Q2: What amplifier matches HG-KR13J best?
A: Use Mitsubishi MR-J4-10A or MR-J4-20A. Also compatible with MR-JE series drives.
Q3: Is the oil seal pre-installed?
A: The motor supports an oil seal, but you may need to add it separately. Check the manual for installation.
Q4: What warranty and shipping options do you offer?
A: 12-month warranty against defects. Ships in 12-24 hours via FedEx, UPS, or DHL. Tracking provided.
Q5: Can I use this motor in wet or dusty areas?
A: Yes. IP65 rating protects against dust and water jets. Avoid full submersion.
Quick Selection Guide – Is HG-KR13J Right for You?
- Check your load torque: rated 0.32 Nm, peak 1.1 Nm.
- Need speeds up to 3000 RPM continuous? Yes.
- Environment dusty or wet? IP65 + oil seal option works.
- Low inertia needed for fast direction changes? Perfect.
- Small power capacity (0.1 kW) matches light machines.
- Contact us for help with sizing and amplifier pairing.
