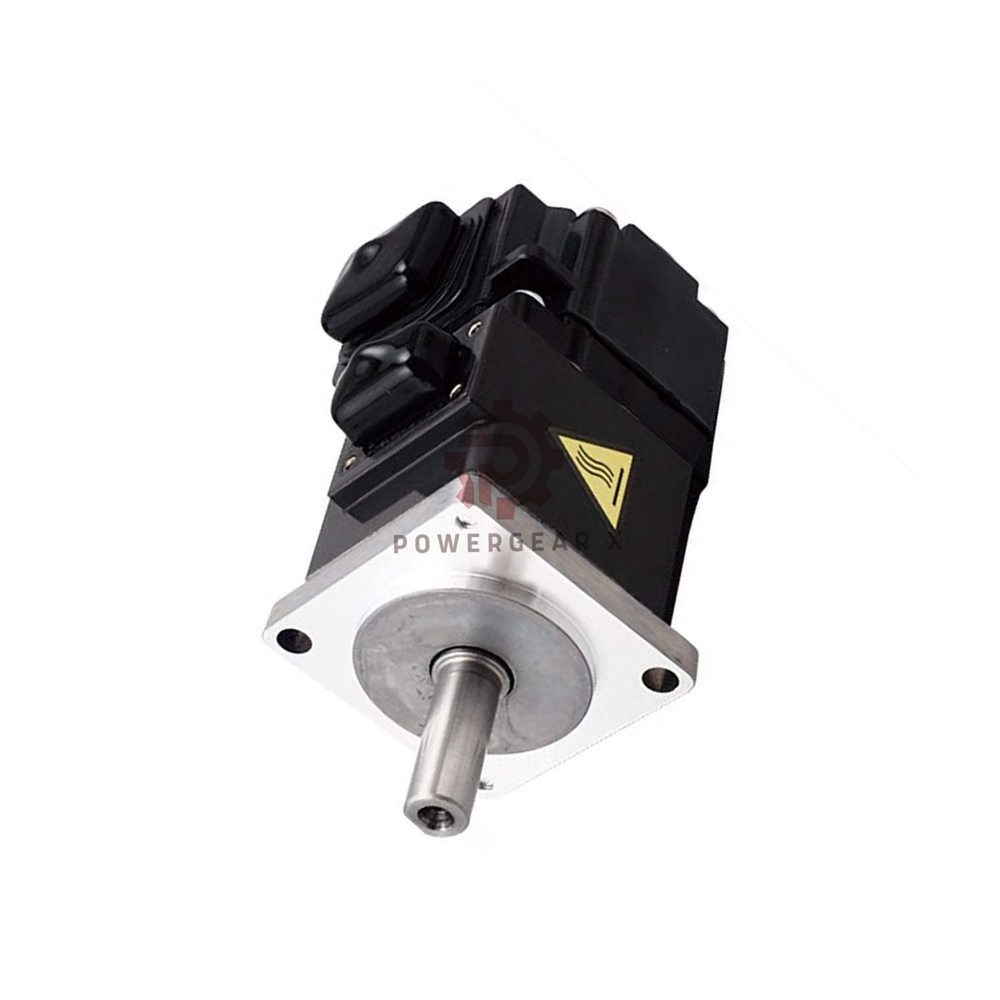

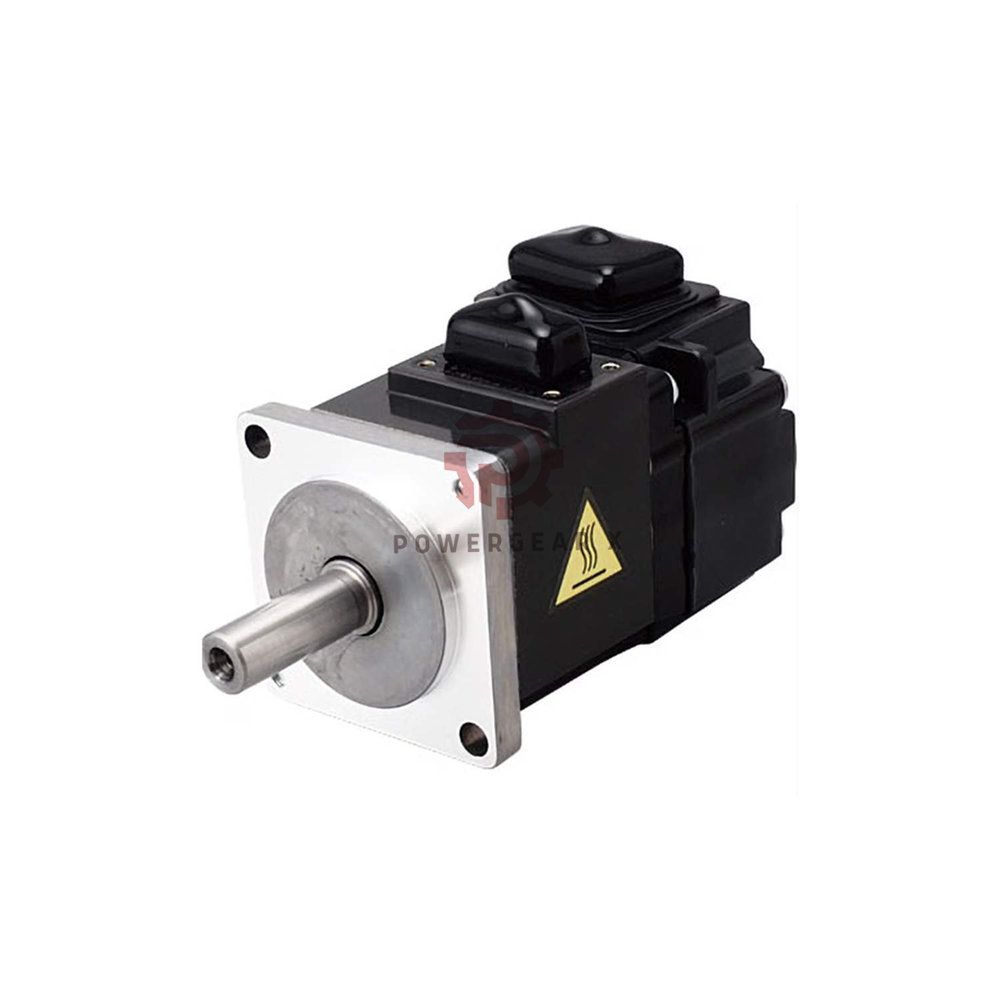

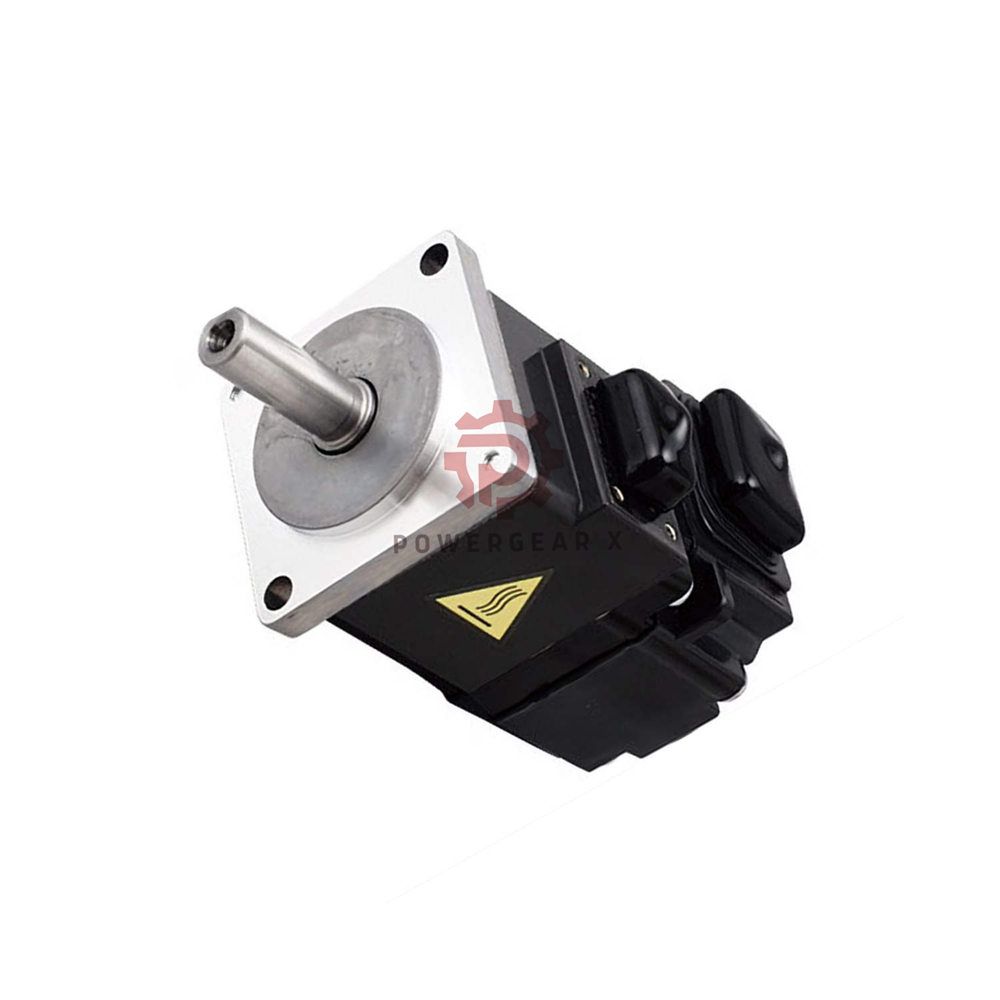

HG-KR053 Mitsubishi MELSERVO 50W Servo Motor 6000rpm 22-bit Encoder IP65

HG-KR053 Mitsubishi MELSERVO HG Series 50W Low Inertia Servo Motor

Small but powerful servo motor for precise motion. 0.05kW output, 3000/6000 rpm, 0.16 Nm torque. 22-bit encoder (4194304 pulses/rev). IP65 rated for dusty or wet areas.

Product Description

• Low inertia, small capacity servo motor
  • Standard shaft shape
  • Member of MELSERVO series
  • General purpose industrial use
• Speed performance
  • Rated speed: 3000 rpm
  • Maximum speed: 6000 rpm
  • Fast response and precise control
• Power and torque
  • Rated output: 0.05 kW (50W)
  • Rated torque: 0.16 Nm
  • Maximum torque: 0.56 Nm
  • Power rate: 5.63 kW/s
• Electrical ratings
  • Rated current: 0.9 A
  • Maximum current: 3.2 A
  • Load/motor inertia ratio: ≤17 times
• Feedback and protection
  • 22-bit encoder (absolute/incremental common)
  • Resolution: 4194304 pulses per revolution
  • IP65 totally enclosed, natural cooling
• Environmental limits
  • Operating temp: 0°C to 40°C
  • Storage temp: -15°C to 70°C
  • Humidity: 10%-80% RH (operating), 10%-90% (storage)
  • Indoor use only, no direct sunlight, no corrosive gas

Technical Specifications

• General
  • Manufacturer: Mitsubishi
  • Product Line: HG Series
  • Part Number: HG-KR053
  • Series: MELSERVO
  • Type: Servo motor
  • Weight: 0.45 kg (1.00 lbs)
  • Shaft shape: Standard
• Speed and torque
  • Rated speed: 3000 rpm
  • Maximum speed: 6000 rpm
  • Rated torque: 0.16 Nm
  • Maximum torque: 0.56 Nm
• Power and current
  • Rated output: 0.05 kW
  • Rated current: 0.9 A
  • Maximum current: 3.2 A
  • Power rate: 5.63 kW/s
• Encoder
  • 22-bit absolute/incremental common
  • Resolution: 4194304 pulses/rev
• Inertia ratio recommendation
  • Load/motor inertia moment ratio ≤17 times
• Protection
  • IP65, totally enclosed, natural cooling

Expert Review

• “The HG-KR053 is perfect for small precision axes. The 22-bit encoder gives smooth low-speed control. IP65 rating means less downtime from dust or moisture. Great value for compact machines.” – Senior Motion Control Engineer

Manager’s Insight

• “Choose HG-KR053 for tight spaces. Low inertia means faster starts and stops. Keep inertia ratio under 17 for best life. Our customers see 30% faster cycle times.” – Product Manager, PowergearX

Suitable Devices & Applications

• Compatible amplifiers
  • Mitsubishi MR-J4 series servo amplifiers
  • MELSERVO J4 drives (e.g., MR-J4-10A to MR-J4-40A)
• Typical applications
  • Small robotic arms, pick-and-place units
  • Medical devices, lab automation
  • Semiconductor handlers, PCB drilling
  • Labeling machines, small conveyors
• Best for
  • High speed positioning, light load torque control

Shipping & Warranty

• Warranty: 12 months from delivery (covers defects)
• Dispatch: 12-24 hours after order confirmation
• Shipping carriers: FedEx, UPS, DHL
• Tracking number provided within 6 hours

Frequently Asked Questions (FAQ)

• Q1: What is the difference between HG-KR053 and HG-KR13B?
  • A: HG-KR053 is 50W, HG-KR13B is 100W. Choose 053 for very small loads, 13B for higher torque needs.
• Q2: Can I use this motor outdoors?
  • A: No, indoor use only. IP65 protects from water jets but not direct sun or extreme cold.
• Q3 (Experience-based): My motor vibrates at low speed. What should I check?
  • A: Tune gain settings in your servo amplifier. Reduce load inertia or add a low-pass filter. Check coupling alignment.
• Q4 (Buying guide): What warranty and shipping do you provide?
  • A: 12-month warranty. Ship within 12-24 hours via FedEx, UPS, or DHL. Global tracking included.
• Q5: How do I set the encoder to absolute mode?
  • A: Connect a battery to the servo amplifier. Set parameter PA03 to 0001. The motor saves position without home sensor.
