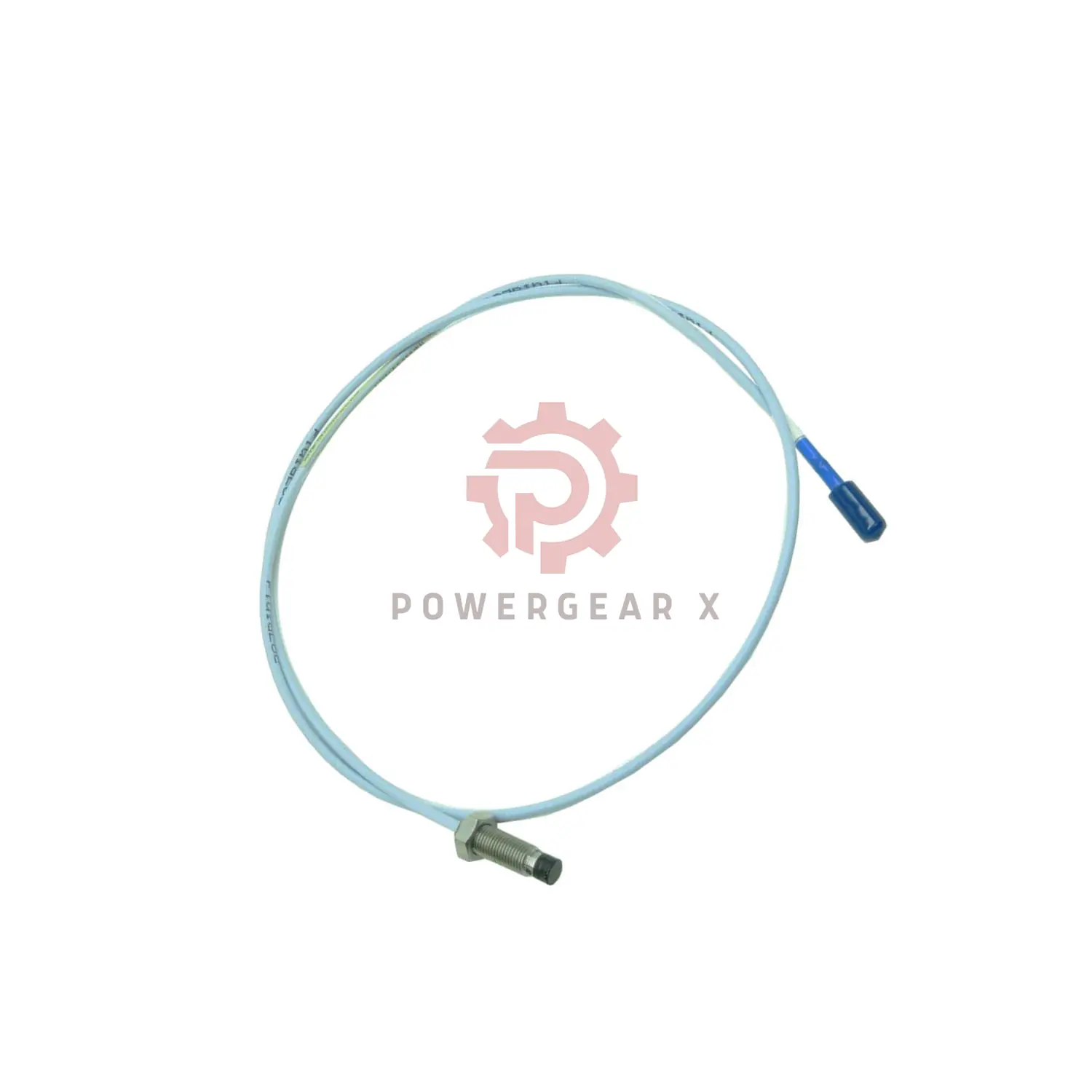

Genuine Bently Nevada 330101-00-77-20-02-CN Vibration Probe

 Product Overview

This is the Bently Nevada 330101-00-77-20-02-CN. It is an 8mm vibration probe. It belongs to the 3300 XL series. And it measures vibration and position of rotating machines. This model is without armor protection. It uses a reliable ClickLoc connector. It provides accurate and stable signals.

Detailed Specifications

• Brand & Model: Bently Nevada 330101-00-77-20-02-CN
  • Product Series: 3300 XL
  • Probe Type: 8mm Proximity Probe
  • Thread: 3/8-24 UNF
  • Armor: Without Armor
• Configuration Details:
  • 330101: Base Model – 3300 XL 8mm Probe
  • -00: Unthreaded Length – 0.0 inch
  • -77: Overall Case Length – 7.7 inch
  • -20: Total Cable Length – 2.0 meters (6.6 feet)
  • -02: Connector Type – Miniature coaxial ClickLoc connector, standard cable
  • -CN: Country Specific Version
• Electrical Parameters:
  • Probe DC Resistance (2m): 7.88 Ω ± 0.50 Ω
  • Extension Cable Capacitance: 69.9 pF/m (typical)
  • Recommended Gap Setting (Radial Vibration): 1.27 mm (corresponding to -9 Vdc)
  • Incremental Scale Factor (ISF): 7.87 V/mm ± 5% or 6.5%
  • Linear Range: 0.25 mm to 2.3 mm (10 to 90 mils)
• Physical & Materials:
  • Probe Tip Material: Polyphenylene Sulfide
  • Probe Case Material: AISI 303 or 304 Stainless Steel
  • Cable Weight: Approximately 323 g/m
• Environmental Specifications:
  • Standard Operating Temperature: -52°C to +177°C
  • Extended Temperature Range (ETR) Option: Tip up to +218°C
  • Humidity Effect: Less than 3% change in ASF at 93% humidity
  • Pressure Seal: Viton® O-ring for differential pressure sealing
• Field Wiring:
  • Recommended Cable: 3-conductor shielded triad cable
  • Maximum Cable Length: 305 meters from probe to monitor
  • Wire Gauge: 0.2 to 1.5 mm² (16 to 24 AWG)

Package & Service

• Includes one new genuine Bently Nevada 330101-00-77-20-02-CN probe.
• Backed by a full 12-month product warranty.
• International shipping available via FedEx, UPS, and DHL.

Frequently Asked Questions

What does this probe measure?

It is primarily used to measure radial vibration, axial position, and speed of rotating machinery shafts.

How do I set the correct gap?

For radial vibration, typically set the probe gap voltage between -9 Vdc and -10 Vdc.

Can it be used on high-speed or high-temperature equipment?

Yes. Its wide temperature range and rugged design suit gas turbines, steam turbines, and similar demanding applications.

Any important installation notes?

Ensure the probe mounting hole is perpendicular to the shaft surface. Secure firmly with the lock nut after installation.

What is a common mistake based on experience?

Forgetting to securely reconnect the ClickLoc connector after maintenance. Listen for the audible “click” to confirm full lock.
