Technical Specifications
- Brand: General Electric (GE)

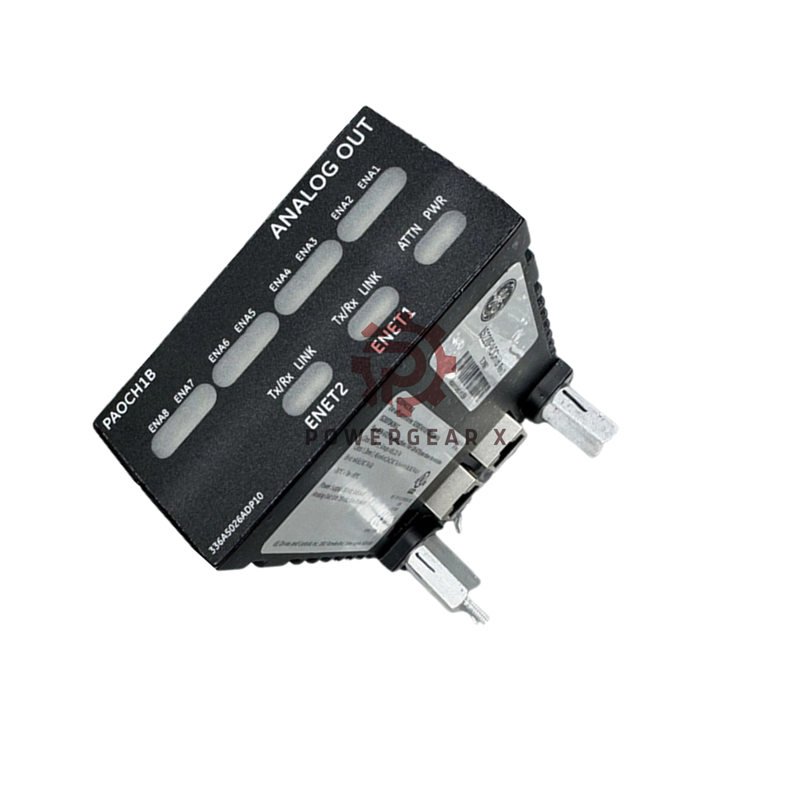

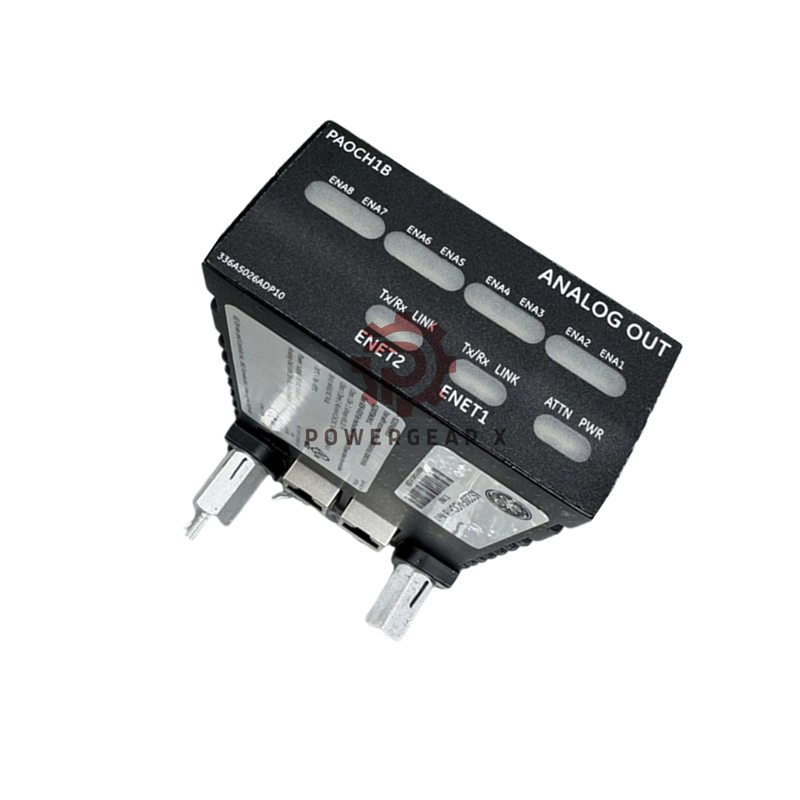

- Model: IS220PAOCH1B, REV B
- Series: Mark VIe Distributed Control System
- Product Type: Analog Output Module
- Number of Channels: Eight (8) 0–20 mA current outputs
- Compliance Voltage: 18 V
- Accuracy: ±0.5% from -30°C to 65°C
- Resolution: 16-bit DAC and 16-bit ADC
- Communication: Dual RJ45 Ethernet ports, 3-pin power input
- Dimensions: 8.26 cm (H) × 4.19 cm (W) × 12.1 cm (D)
- Operating Temperature: -30°C to 65°C
- Manual: GEH-6721D
- Country of Origin: USA
- Availability: In Stock
Analog Output Hardware
- The module delivers eight 0–20 mA outputs with 18 V compliance for precise current control.
- Each output uses a 16-bit digital-to-analog converter driving a transistor amplifier stage.
- Each channel includes a mechanical normally open relay for safe enable/disable control.
- LED indicators show relay and output status during operation and diagnostics.
- A built-in temperature sensor monitors internal heat to ensure reliable function.
Current Feedback Hardware
- Each output features current feedback using a 16-bit ADC and a 50-ohm sense resistor.
- The feedback loop maintains precise current accuracy and improves control stability.
- Ambient temperature limitations depend on installation density and airflow availability.
Compatibility & Control Modes
- Compatible with TBAOH1C and STAO boards, not with DIN-rail DTAO boards.
- Simplex Mode: Uses one I/O pack, basic fault detection, economical choice.
- Dual Mode: Uses two packs in parallel for redundancy and automatic failover.
- TMR Mode: Uses three packs with two-out-of-three voting for maximum reliability.
Installation Guide
- Mount the IS220PAOCH1B, REV B into a compatible Mark VIe chassis or terminal board.
- Connect the DC-37 output plug to the matching terminal board and tighten screws evenly.
- Ensure minimum loop impedance per GE manual to maintain stable output control.
Package Contents
- One IS220PAOCH1B, REV B analog output pack in protective foam packaging.
- Installation manual GEH-6721D and quick setup instructions.
- Mounting accessories and spare terminal connector included.
- Shipping via FedEx, UPS, or DHL with tracking provided.
FAQ
- What is the current range supported by the IS220PAOCH1B, REV B?
It supports eight output channels, each providing 0–20 mA with 18 V compliance. - Does this model provide current feedback?
Yes, each channel includes a 16-bit ADC with a 50-ohm sensing resistor for accurate monitoring. - Which boards are compatible with this analog pack?
It connects with TBAOH1C and STAO terminal boards in Mark VIe systems.
