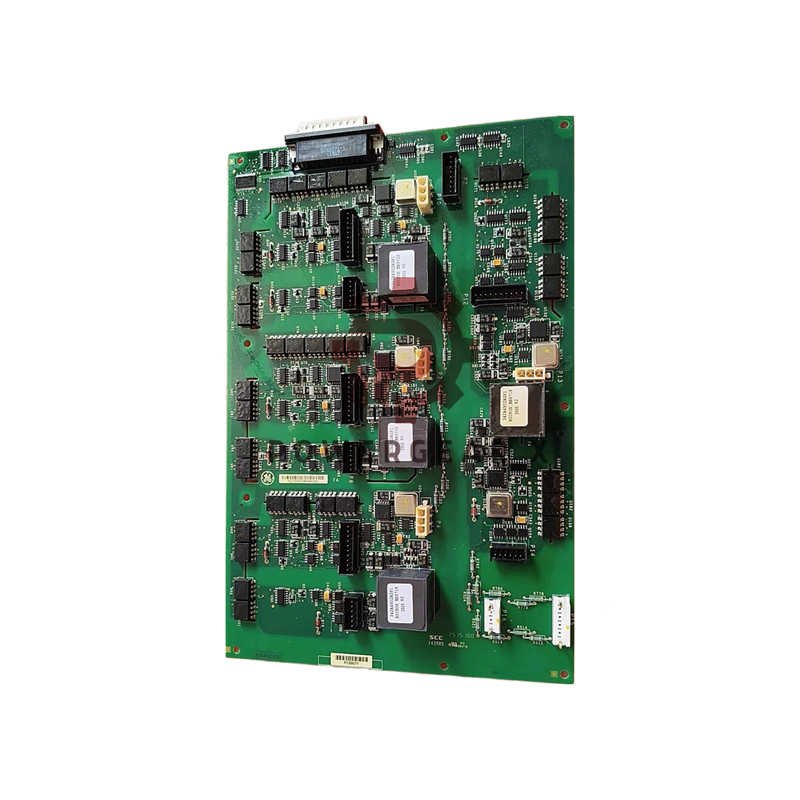

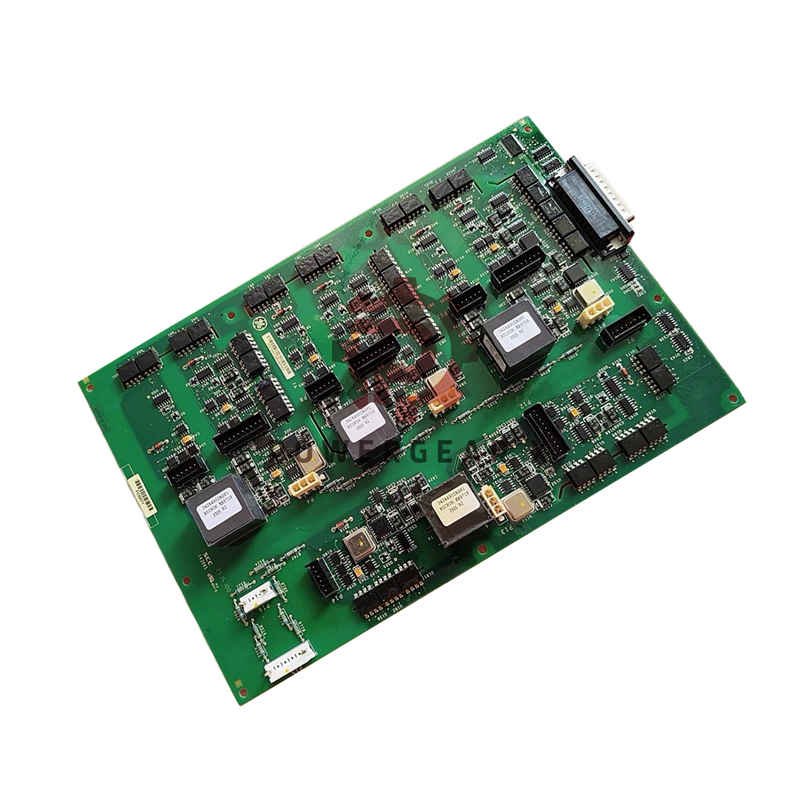

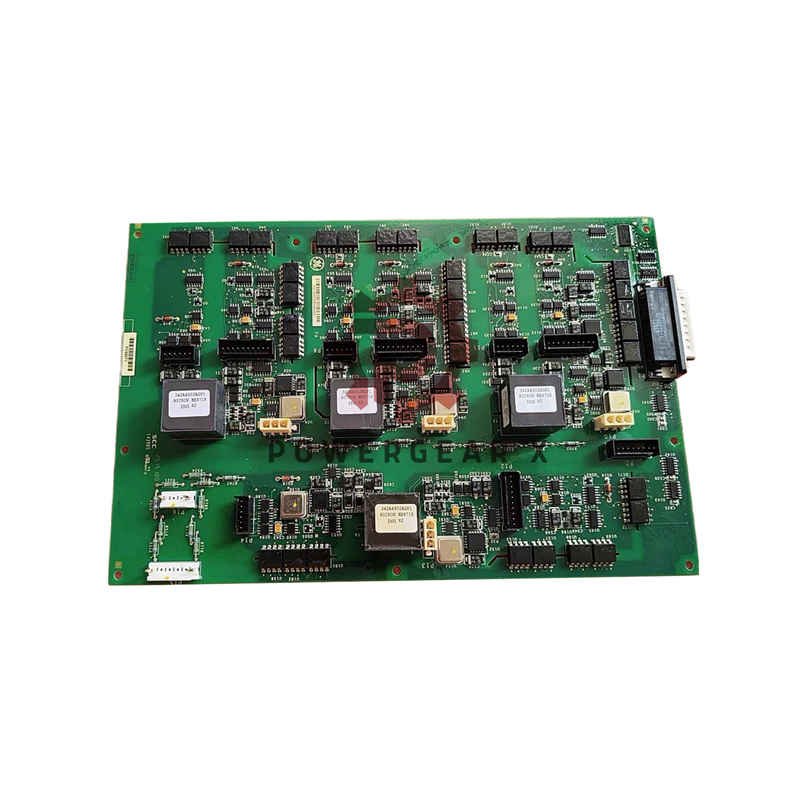

IS210AEDBH4AGD Bridge Interface Card
The IS210AEDBH4AGD by General Electric is a bridge interface card for Mark VI turbine systems. It connects and manages communication between different system components. This board handles both gas and steam turbine control operations efficiently.
Technical Specifications
- Manufacturer: General Electric
- Model: IS210AEDBH4AGD
- Product Type: Bridge Interface Card
- System Compatibility: Mark VI Turbine Control
- Hipot Rating: 5 KVAC insulation level
- Switching Frequency: 10KHz to 500 KHz range
- Integrated Circuits: 175+ various chips
- Transformers: 4 Bicron encapsulated units
- Resistors: 20 metal film resistors
- Mounting Holes: 9 drilled locations
- Plugs: 4 three-position connectors
- Components: Both front and back surface mounting
Component Details
- Front surface contains capacitors, resistors, and diodes
- Back surface features additional capacitors and resistors
- Includes transistors and various integrated circuits
- Bicron transformers marked B9178 for quality assurance
- Read-only chips and oscillating chips for control functions
- Multiple slots for integrated circuit placement
- Clear board markings for easy identification
Quality & Reliability
- 12-month warranty against defects
- High-reliability BIL ratings met
- 5 KVAC Hipot level for safety
- Industrial-grade components throughout
- Rigorous quality testing before shipment
- Manufacturer specifications guaranteed
Shipping Information
- Fast worldwide shipping via FedEx, UPS, DHL
- In stock for immediate delivery
- Secure packaging ensures safe transit
- Tracking information provided
- International shipping available
Technical FAQs
- What systems use this bridge interface card?
The IS210AEDBH4AGD is designed for GE Mark VI gas and steam turbine control systems.
- How many transformers does the board have?
It includes four Bicron encapsulated switch mode/pulse transformers.
- What is the Hipot rating of this card?
The board has a 5 KVAC Hipot level for high voltage insulation safety.
- Can this card work with CIMPLICITY software?
Yes, it integrates with GE’s CIMPLICITY graphics platform for system monitoring.
- What type of resistors are used on the board?
It features twenty metal film resistors for stable performance.
