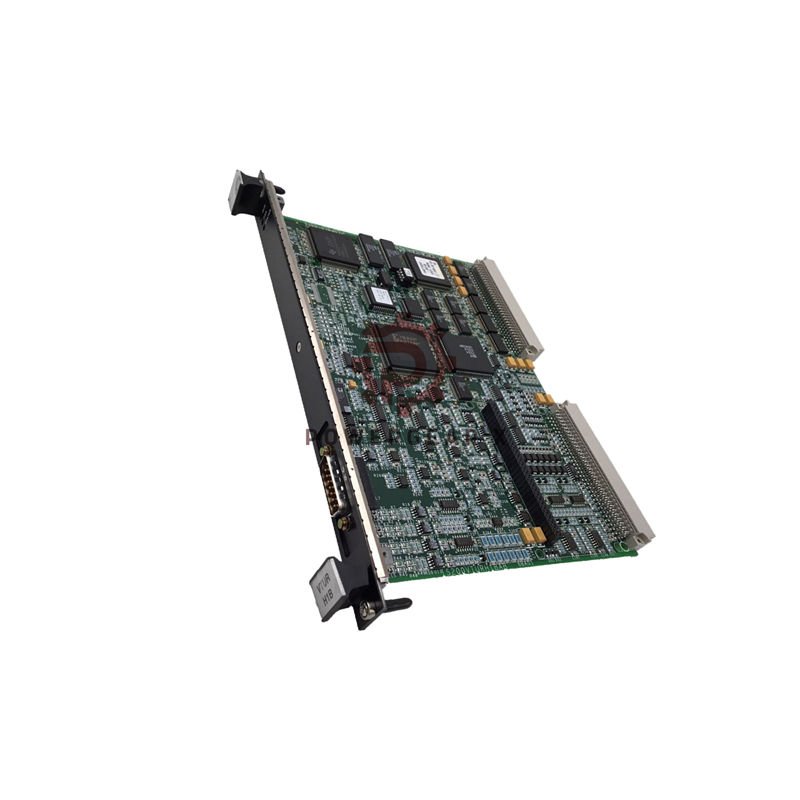

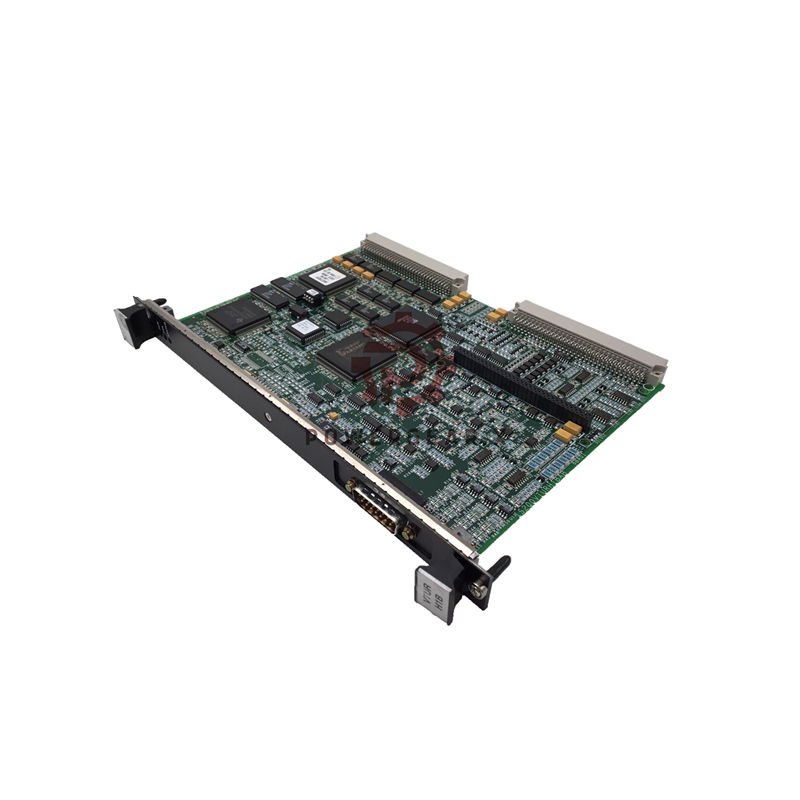

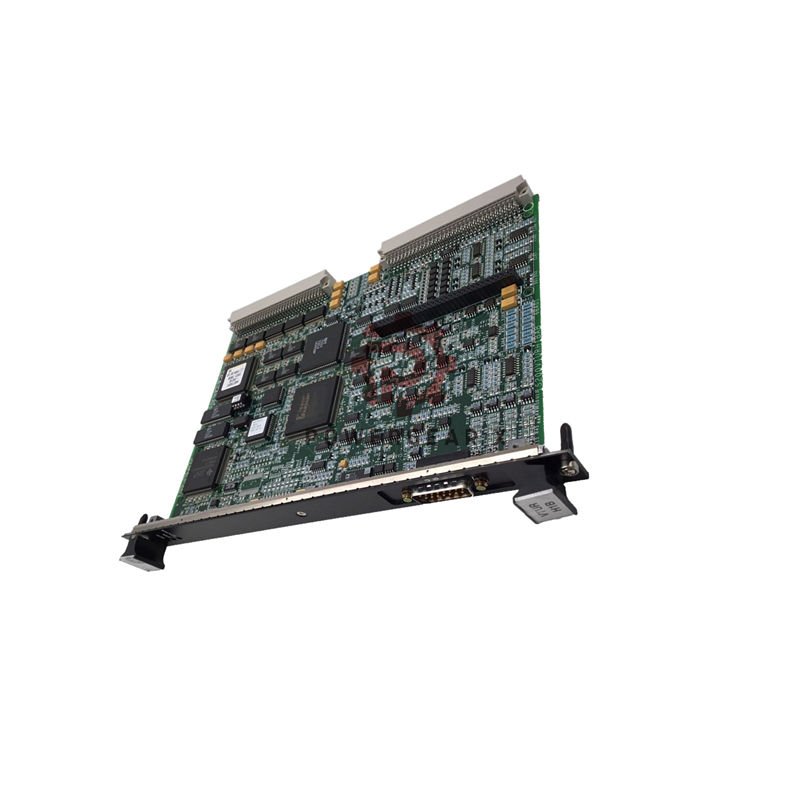

General Electric IS200VTURH1BAB Vibration Transducer Interface Module
IS200VTURH1BAB is a precision-designed Vibration Transducer Interface Module from General Electric, developed for the Mark VI Speedtronic Series. It delivers reliable turbine speed measurement, trip relay control, and shaft voltage monitoring for critical turbine operations. Designed for gas and steam turbine systems, it provides exceptional accuracy and safety in high-demand environments.
Technical Specifications
- Brand: General Electric
- Model: IS200VTURH1BAB
- Series: Mark VI Speedtronic
- Function: Primary Turbine Protection / Vibration Transducer Interface
- Board Rating: 125 V DC
- Common Mode Voltage Range: ±5 V
- Analog Voltage Inputs: 6 channels
- Frequency Range: 2 – 20,000 Hz
- Sensitivity: Detects 2 RPM on 60-tooth wheel
- Dimensions: 11 × 9 × 3 inches
- Operating Temperature: 0 to 60 °C
- Country of Origin: United States
- Repair Time: 3 – 7 Days
- Warranty: 12 Months Limited
Suffix Information (Tree Structure)
- IS200 → Mark VI Series Identifier
- VTUR → Function Code: Vibration Transducer Interface
- H1 → Hardware Revision 1
- BA → Board Assembly Version A
- B → Final Revision
Operational Details
- Interfaces with up to four magnetic speed sensors.
- Monitors shaft voltage and induced current with precision detection.
- Supports eight Geiger-Mueller flame detectors for gas turbines.
- Manages three primary overspeed trip relays through the TRPG terminal board.
- Provides discrete monitoring for relay positions and synchronization control.
Applications
- Gas and Steam Turbine Control Systems
- Power Generation Automation
- High-speed Turbine Protection Circuits
- Generator Synchronization and Trip Management
Shipping and Packaging
- Global shipping via FedEx, UPS, and DHL.
- Secure anti-static packaging for safe delivery.
- Includes module and installation guidelines.
Frequently Asked Questions (FAQ)
- What is the main function of the IS200VTURH1BAB?
- It monitors turbine speed and controls overspeed trip relays in GE Mark VI systems.
- Is the IS200VTURH1BAB compatible with older Mark VI revisions?
- Yes, it is backward-compatible with the first two revisions of the VTUR module.
- Can it detect low-speed turbine rotation?
- Yes, it detects as low as 2 RPM with a 60-tooth wheel sensor.
- How should the module be installed?
- It fits a single VME rack slot with a J5 cable connector and LED indicators for status.
- How can I order or request support?
- Contact us at sales@powergearx.com or via WhatsApp +86 18030005825.
