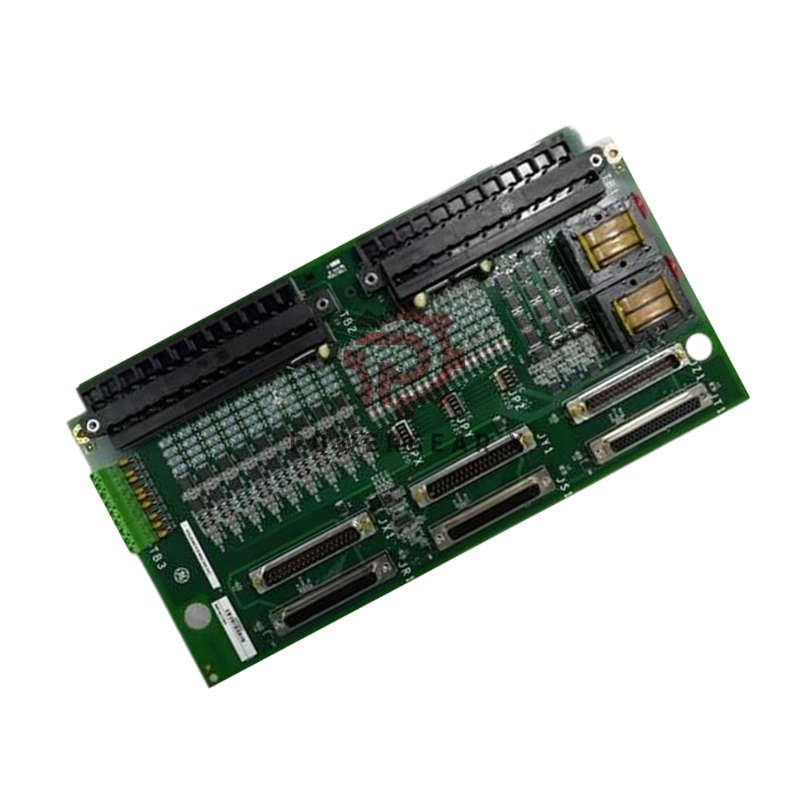

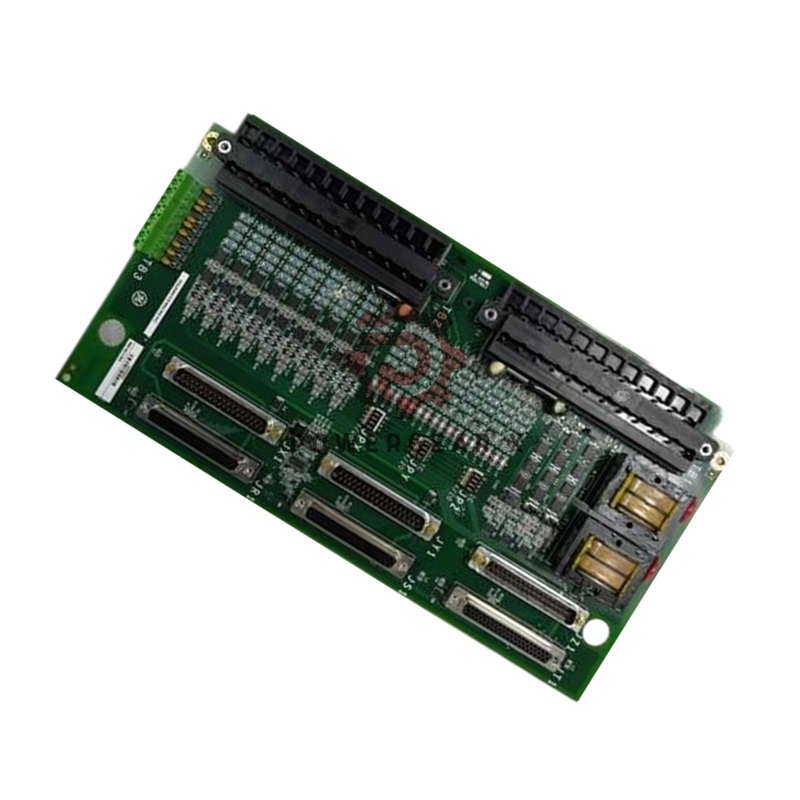

GE IS200TAMBH1ACB Acoustic Monitoring Terminal Board
Powergear X Automation presents the IS200TAMBH1ACB, an advanced Acoustic Monitoring Terminal Board from the Mark VI control system family. This board supports up to nine channels, each designed to manage power, signal input, and diagnostics for precise acoustic monitoring in industrial turbine systems.
Key Features
- Dual 24V Outputs: Each channel provides both current-limited and standard 24V DC outputs for stable operation.
- 9-Channel Design: Optimized for multi-point acoustic monitoring and diagnostics.
- Selectable Input Modes: Switch between current and voltage inputs with jumpers.
- Configurable Return Lines: Customize RETx connections to reduce noise or isolate ground loops.
- Open Circuit Detection: Built-in impedance bias identifies sensor disconnections instantly.
Technical Specifications
- Part Number: IS200TAMBH1ACB
- Manufacturer: General Electric (GE)
- Series: Mark VI
- Product Type: Acoustic Monitoring Terminal Board
- Country of Manufacture: USA
- Operating Temperature: -30°C to +65°C
- Channels: 9
- Power Supply Outputs: +24V DC (standard) and +24V DC (current-limited)
- Input Options: Current or Voltage selectable (via JPx jumpers)
- Input Resistor: 250Ω for 4–20mA current input
- Signal Control: CCSELx logic-level low disables constant current source
- Initialization Safety: Current output inactive during power-up
- Return Line Configuration: JPx jumper connects RETx to PCOM or leaves it open
- Detection Circuit: High-impedance DC bias monitors for open lines
- Mounting: Panel mount
- Technology: Surface mount
- Protection: Overload and noise isolation
- Diagnostics: Automatic fault detection by VAMB system
- Repair Time: 3–7 working days
- Warranty: 12 months standard warranty
- Availability: In Stock
- Shipping Options: FedEx, UPS, DHL worldwide
System Integration & Performance
- Works seamlessly with GE’s VAMB (Vibration Acoustic Monitoring Board).
- Supports both constant current and voltage sensors.
- High impedance ensures accurate open connection detection.
- Optimized for turbine condition monitoring and industrial sound diagnostics.
- Flexible jumper setup allows fast adaptation to custom systems.
Reliability & Build Quality
- Thermal Range: Stable operation from -30°C to +65°C.
- Durable Construction: Industrial-grade PCB with reinforced terminals.
- Stable Signal Paths: Reduced EMI and cross-channel interference.
- Extended Life: Designed for continuous operation in harsh environments.
Product Advantages
- Flexible dual power design for redundancy.
- Configurable current/voltage sensing inputs.
- Quick setup using JPx jumpers.
- Built-in noise suppression circuitry.
- Supports open-circuit detection diagnostics via VAMB.
Comparison Models
FAQ
- Q: How many signal channels does the IS200TAMBH1ACB support?
A: It supports nine independent channels for precise acoustic monitoring. - Q: Can I use both current and voltage input modes?
A: Yes, each channel can switch between current or voltage using JPx jumpers. - Q: What type of power output does each channel provide?
A: Each channel offers both a +24V DC current-limited and a standard +24V DC output. - Q: How does the board detect open sensor connections?
A: It uses a high-impedance DC bias and reports open circuits through the VAMB system. - Q: What warranty and delivery options are available?
A: The unit includes a 12-month warranty and ships via FedEx, UPS, or DHL.
