Core Product Overview

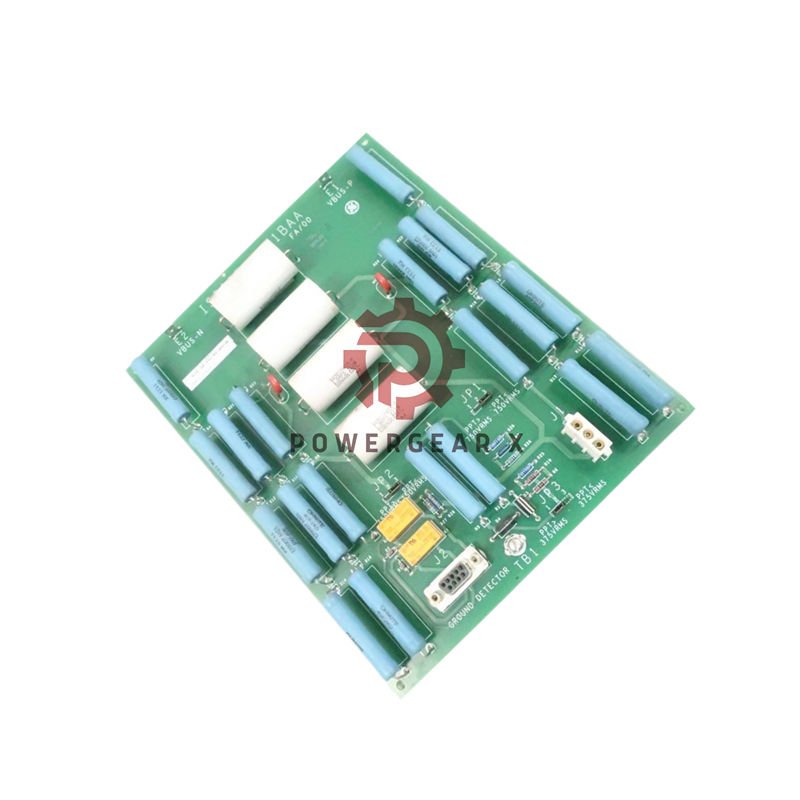

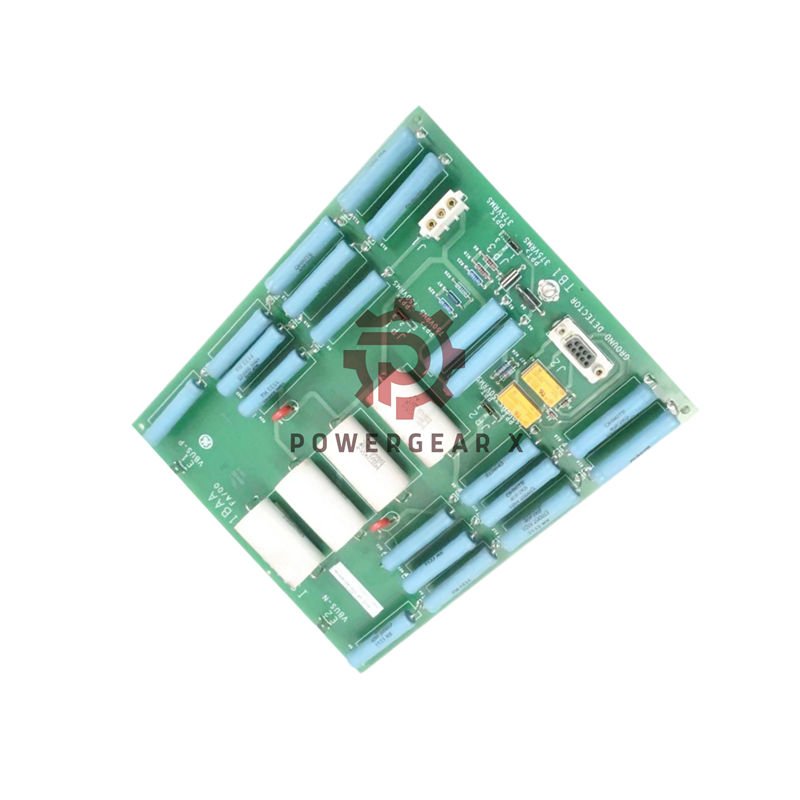

The IS200EXAMG1BAA is General Electric’s Exciter Attenuation Module for EX2100e systems. This module detects ground faults and attenuates high-voltage signals. It ensures reliable generator protection across 0 to 60°C environments.
Key Specifications
- Brand: General Electric
- Model: IS200EXAMG1BAA
- Type: Exciter Attenuation Module
- Temperature Range: 0 to 60°C
- Series: EX2100e Excitation System
- Connectors: 9-pin D-sub (J2), 3-pin lock (J1)
- Configuration: Jumpers JP1-JP3 for voltage settings
Primary Functions
- Detects ground faults with the Exciter Ground Detector Module
- Attenuates field bus signals to safe monitoring levels
- Uses stab-on connectors E1 and E2 for voltage transmission
- Provides shield grounding via TB1 terminal for safety
Integration Features
- Connects to Exciter Power Backplane with a 9-pin cable
- Works with Exciter/Regulator Options Board in some setups
- One module suffices for simplex or redundant systems
- Collaborates with DSPX board for computational support
Physical Design
- Includes two metal oxide varistors for surge protection
- Features four polyester-vinyl capacitors for signal stability
- Utilizes twenty wire-wound resistors for voltage control
- Omits test points and LEDs to focus on essential tasks
Installation Guide
- Mount the module in the High Voltage Interface cabinet
- Connect to Exciter Power Backplane using the 9-pin cable
- Set jumpers JP1-JP3 based on PPT secondary voltages
- Secure shield ground through TB1 terminal connection
Packaging & Shipping
- Includes the IS200EXAMG1BAA module and documentation
- Uses anti-static packaging with protective cushioning
- Ships globally via FedEx, UPS, and DHL carriers
- Provides tracking details for all orders
FAQ
- What does the IS200EXAMG1BAA do?
It detects ground faults and attenuates signals in excitation systems.
- How many units per system?
Only one module is needed for any configuration.
- What connectors are included?
It has J1 3-pin locking and J2 9-pin D-sub connectors.
