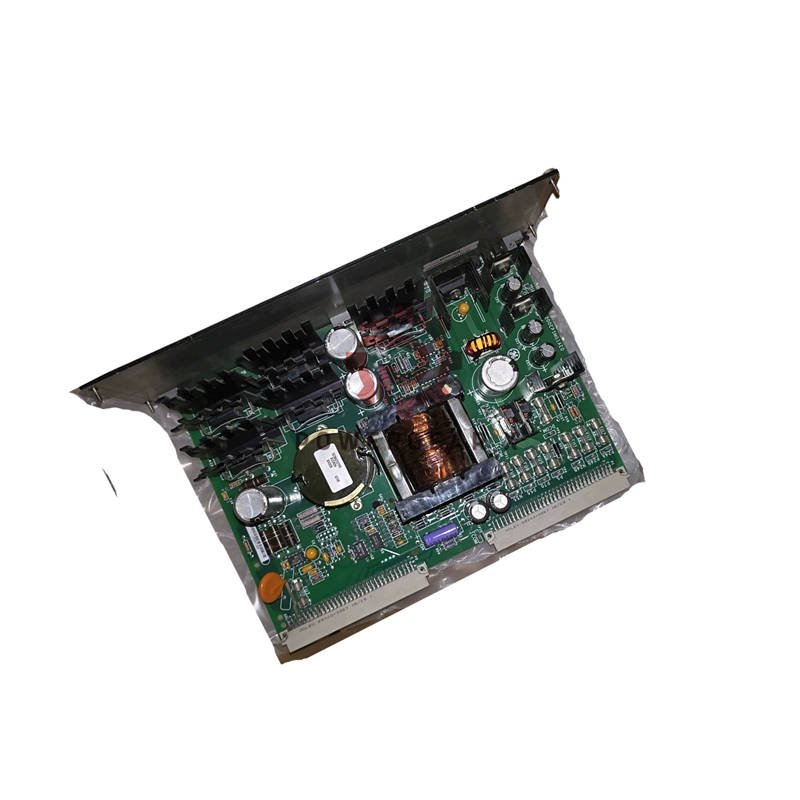

GE IS200EPSMG1A Exciter Power Supply Module
The IS200EPSMG1A delivers reliable power conversion for EX2100 turbine control systems. This robust power supply module converts input voltage to multiple output voltages with high isolation protection. It ensures stable operation in demanding industrial environments.
Technical Specifications
- Manufacturer: General Electric Energy
- Model Number: IS200EPSMG1A
- Product Series: EX2100 Excitation Control
- Board Type: Exciter Power Supply Module (EPSM)
- Input Voltage: 125V DC from EPDM Module
- Output Voltages: +5V DC, ±15V DC, +24V DC, +70V DC
- Intermediate Voltage: 50V DC Buck-Regulator Output
- Mounting Location: EPBP Backplane
- Weight: 1 pound 8 ounces (680 grams)
- Isolation Rating: High Voltage Transformer Isolation
- Compatibility: Not Backward Compatible (Version A)
- Warranty: 12 Months Full Coverage
- Shipping: FedEx, UPS, DHL Express
- Country of Origin: United States
Primary Applications
- EX2100 Excitation Control Systems
- EX2100 Regulator Control Units
- Turbine Control System Power Supply
- Industrial Power Generation Plants
- Retrofit Excitation System Upgrades
Output Voltage Distribution
- +5V DC: Logic power for control boards
- ±15V DC: Analog circuit power supply
- +24V DC: External module power (fans, crowbar, EDCF)
- +70V DC: Terminal board contact wetting
- 55V DC: Ground detector circuits
- 20V AC: IGBT gate and discharge board
Supported External Modules
- Crowbar Module (Overvoltage Protection)
- EDCF (DC Feedback Board)
- EGDM (Ground Detection Module)
- EDEX (De-excitation Module)
- ECTB/EXTB Terminal Boards
- Cooling Fan Assemblies
Technical Questions Answered
- What is the intermediate voltage in the conversion process?
- The buck-regulator first converts input voltage to 50V DC before final conversion.
- How many controllers can one EPSM module support?
- Each controller (M1, M2, C) requires its own independent IS200EPSMG1A module.
- What documentation covers this module?
- GEI-100462 manual specifically, with additional info in GEH-6632 page 53.
- Can this module handle voltage spikes?
- Yes, the push-pull inverter design provides excellent spike protection.
- Where is this module physically located?
- It mounts in the EPBP backplane beneath the control rack in the cabinet.
