Product details
Overview

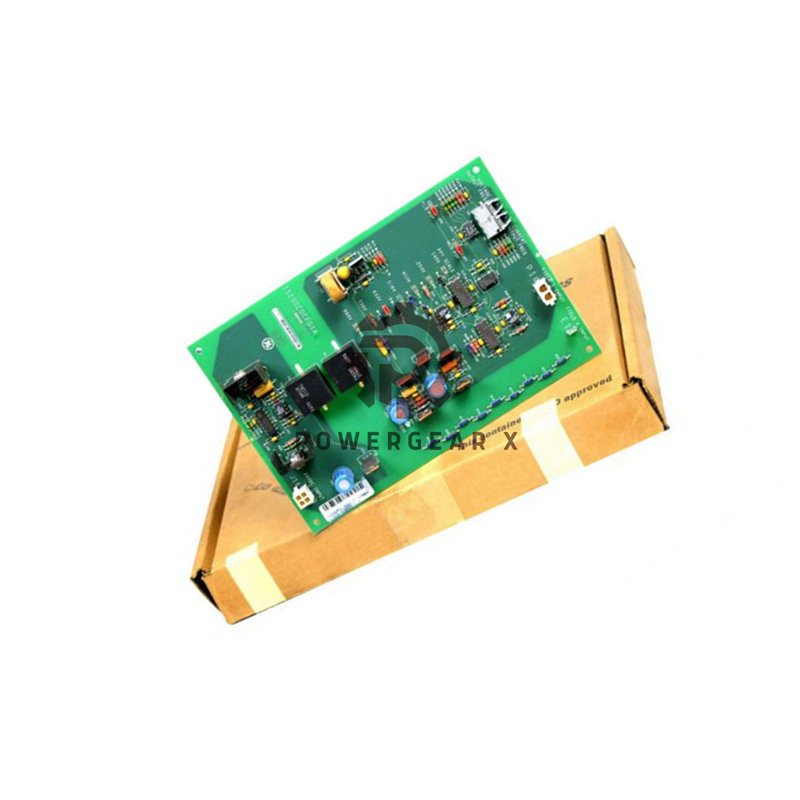

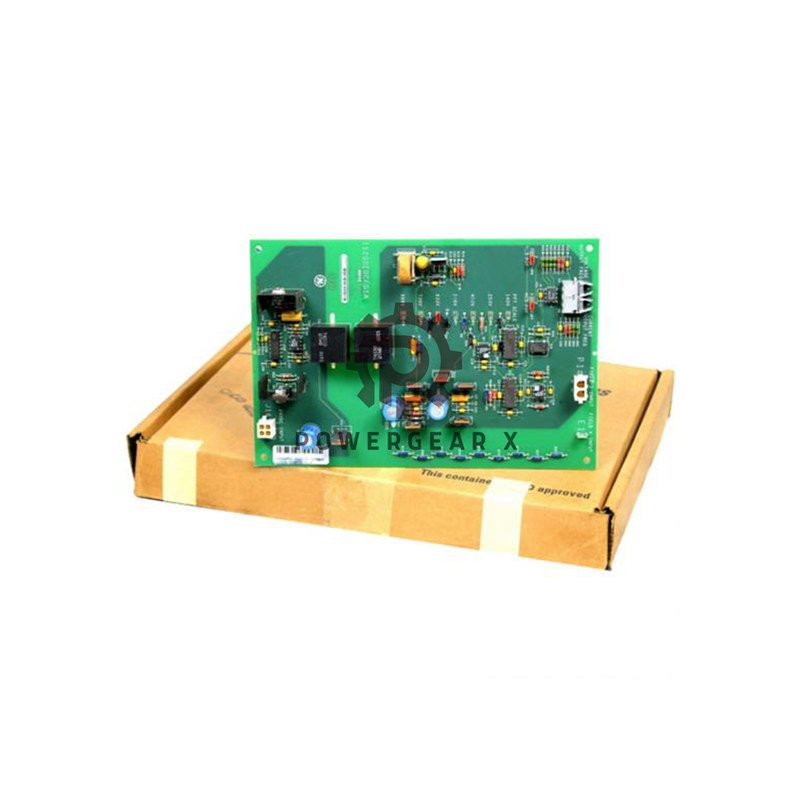

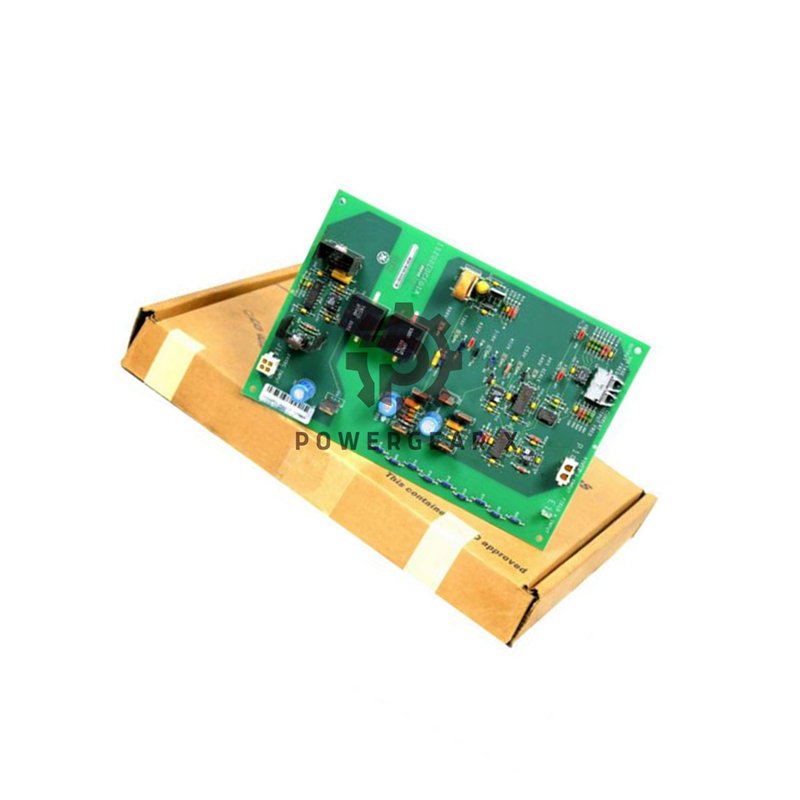

General Electric IS200EDCFG1A Exciter DC Feedback Board delivers precise field current and voltage monitoring for EX2100 excitation control systems. This industrial-grade board ensures reliable performance in harsh environments with advanced fiber-optic communication technology.
Technical Specifications
- Brand: General Electric
- Model: IS200EDCFG1A (Full Suffix: IS200EDCFG1A)
- Series: EX2100 Excitation Control
- Product Type: Exciter DC Feedback Board
- Operating Temperature: -30°C to 65°C
- Power Supply: 24V DC External Input
- Output Voltages: +15V DC, -15V DC, +5V DC
- Field Current Input: 500mV max via DC shunt
- Country of Origin: USA
- Manual Reference: GEI-100464A
Installation & Setup
- Connect 24V DC power supply to J16 connector on the board
- Use P1 connector for field current shunt resistance input
- Field voltage input connects via stab-on connector E1
- Maintain minimum 1.5-inch bending radius for fiber-optic cables
- Verify PSOK green LED illumination for power confirmation
- Ensure proper grounding and voltage isolation during installation
Package Contents
- One IS200EDCFG1A Exciter DC Feedback Board
- Technical documentation and installation guide
- Compatible with GEH-6632 and GEI-100464 manuals
- Shipping via FedEx, UPS, or DHL express services
Frequently Asked Questions
- What fiber-optic cable types does the board support?
- Plastic fiber for distances up to 10 meters and hard-clad silica fiber for up to 90 meters.
- How does the board ensure measurement accuracy?
- Differential amplifiers process signals with voltage-controlled oscillators for precise feedback.
- What does the PSOK LED indicate?
- The green LED confirms proper operation of +15V and -15V power supply voltages.
- Is this board backward compatible with older systems?
- No, the IS200EDCFG1A is Hardware Form A and not backward compatible.
